Diamond Core Bit, Reamer and Casing Shoe Bit
| Price: |
US $ 60-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
BQ, HQ, NQ, PQ, BW, HW, NW, PW |
| Condition: |
New |
| Standard: |
Boart Longyear Standard |
| Quality: |
High Quality |
Product Description

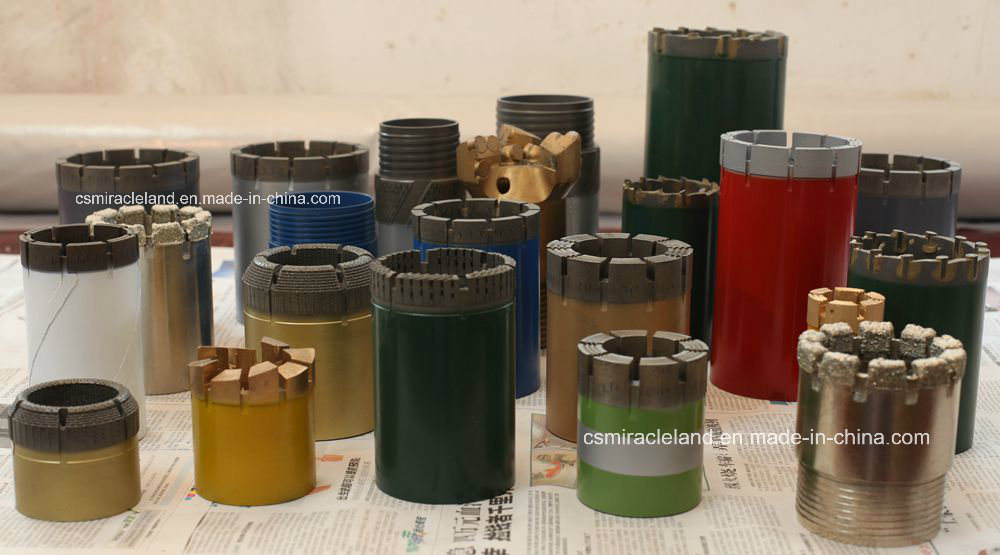

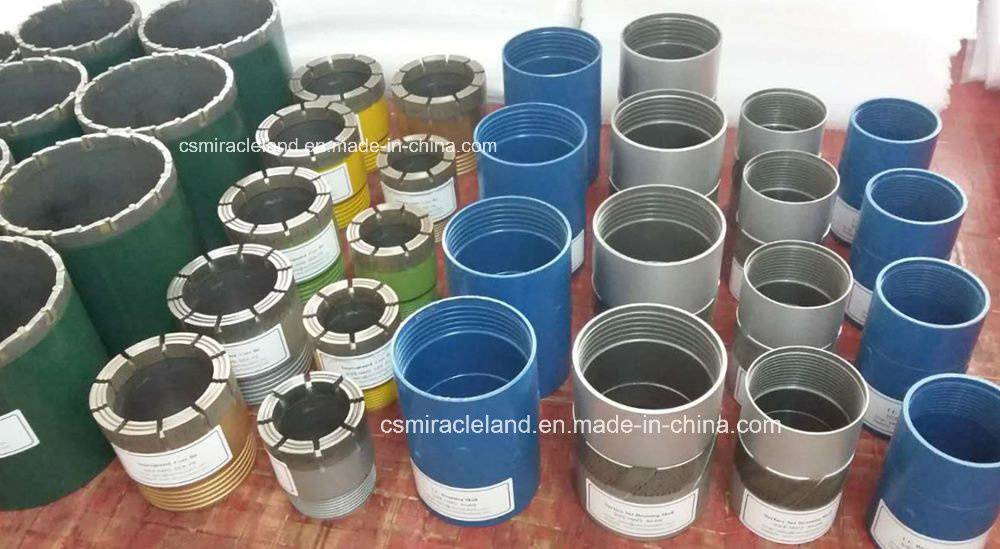

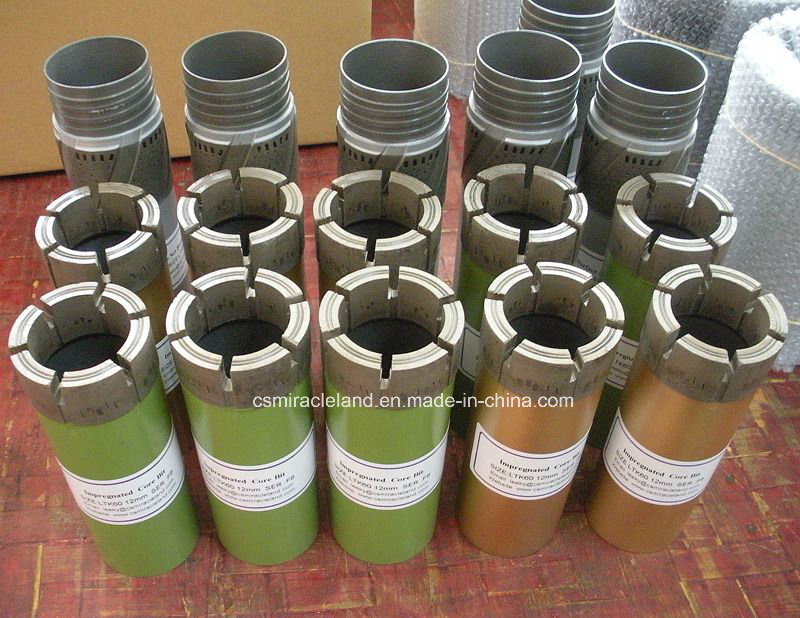

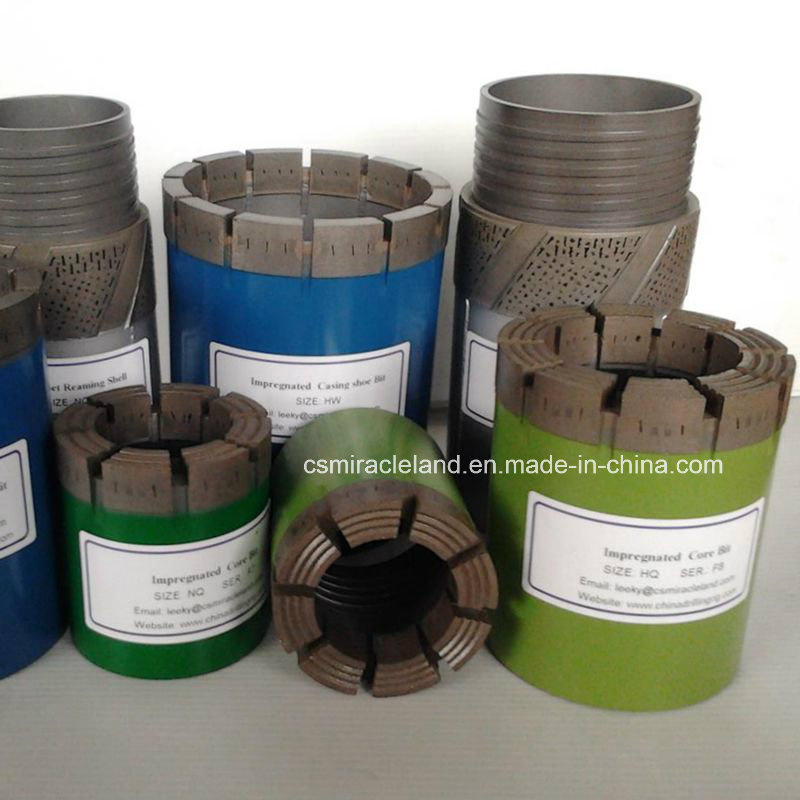

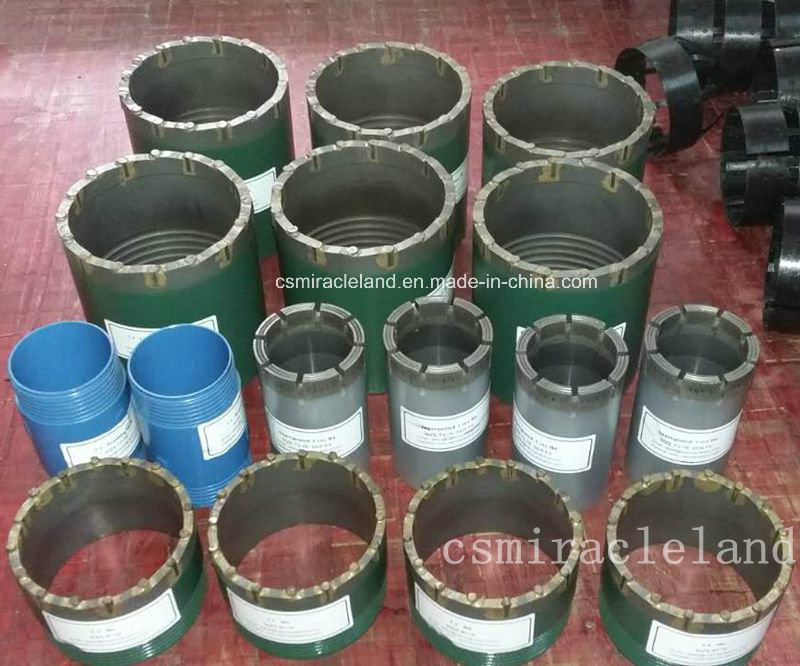

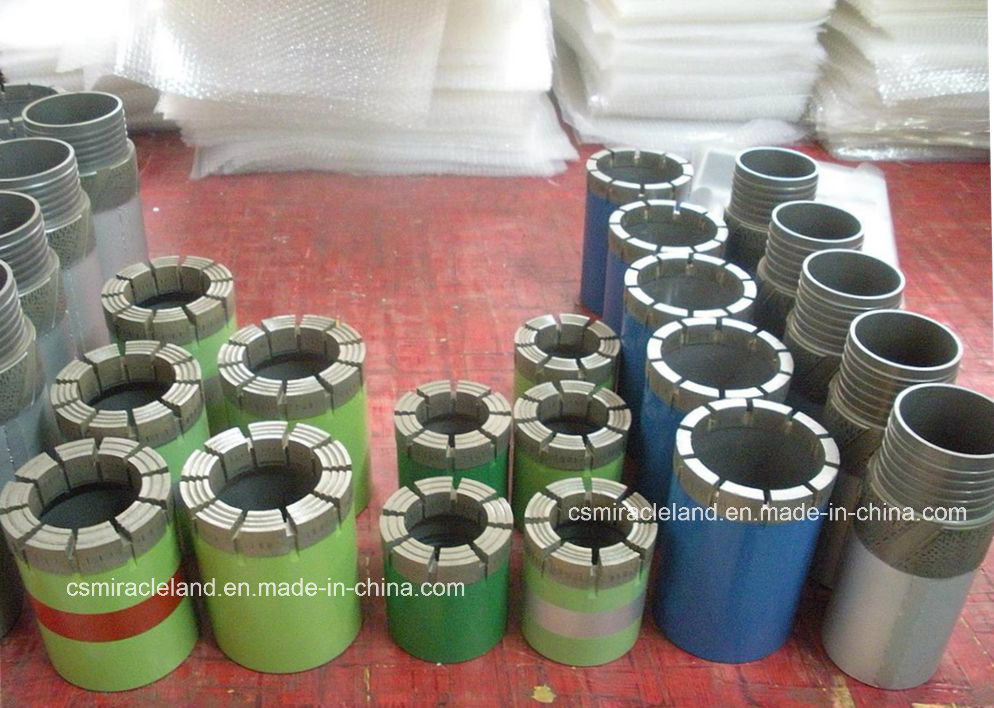

Impregnated bits can penetrate a broad range of formations from the softest to the hardest rocks. They are manufactured with very small, high quality synthetic diamonds mixed evenly through a tungsten carbide matrix. During drilling the matrix wears away evenly resulting in continuous exposure of new, sharp diamond points throughout the life of the bit.
All impregnated bits have T.C. and diamond gauge protection. The optimum diamond size, concentration and matrix composition varies according to the hardness and abrasiveness of the rock formations to be drilled.
Diamond reaming shell are important tools to be used together with bits. It's main fuctions are maintaining borehole gauge. Improving drill string stability and protecting lower drill string from excessive wear.
Helical type reaming shell provides a good passage for drilling fluids. The matrix is wearproof, and the working life is long.
Casing shoe is used on the leading edge of a casing tube string to advance it through the overburden layer and into the bedrock by means of rotational drilling. Depending on the range of application, the cutting media on the core bit may take the form of synthetic diamond, tungsten-carbide particles or tungsten-carbide elements.
We had been making great efforts to develop various drilling tools to meet the different needs for our customers. The drilling tools including core bits, diamond core bits, non-coring bits, reaming shells, casing shoes & casing bits, core barrels, overshots, drill rods, casing tubes, SPT tools and other drilling tools.
If you need any further information about our any type drilling tools, please feel free to contact with us, we would be quite pleased to show all the details you asked for.
Diamond core drill bitsA-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,
H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short
S-Gauge Core Bits: SWF-Long, SWF-Short
U-Gauge Core Bits: UWF-Long, UWF-Short
Z-Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 & TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-66, T2-76, T2-76Coreline, T2-86,
T2-86 Coreline, T2-101, T2-101 Coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B Series(IS03552-1)Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146Reamer Size Available:
Wireline Series: B, N, H, P
W Series: RW, EW, AW, BW, NW, HW, PW, SW, UW, ZW, HWT, PWT, BWS, NWS
Metric Series: 46, 56, 66, 76, 86, 101, 116, 131, 146
X Series: RX, EX, AX, BX, NX, HX, PX, SX, UX, ZX
All Chinese Sizes
Changsha Miracleland Import & Export Co., Ltd is a professional and credible international trading company. We are specialized in manufacturing & exporting many types of drilling rigs, the products including drilling rigs for mining exploration, water well drilling rigs, coal mine drilling rigs, borehole drilling rigs, geological drilling machine, construction drilling rigs, core drilling rig, drill accessories & diamond core bits series and etc. We can supply the truck mounted drilling rigs, wheel mounted drilling rigs, crawler drilling rigs and so on to meet all customers' Requirements. We exported many type of drilling rigs to many countries with the best quality and good service, which gained an excellent credibility among all the clients. We can supply drilling rigs with the drill depth from 50 meters and 3000 meters.
Our company also manufactured and exported all kind of drilling accessories, such as core bits, non-coring bits, reaming shells, casing shoes & casing bits, core barrels, overshot, drill rods, casing tubes and other drilling tools.
We are quite pleased to enter into business cooperation with your firm on the basis of equality and mutual benefit, we believe that we shall be, by joint efforts, able to promote friendship as well as business.
As a successful and whole-hearted dedication team for customers, we shall provide satisfactory products and the most advantageous price for you.
If you had any requirements for any type drilling rigs & drilling tools, kindly please feel free to contact with us, we would be quite pleased to show all the details you asked for.
