| Prod Model: |
HWF PWF SWF UWF ZWF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Matrix Height: |
6mm-14mm |
| Waterway: |
Round Face Discharge Hole |
| Crown: |
W Profile |
| Quality: |
Good Quality |
| Use: |
Engineering Investigation Drill Bit |

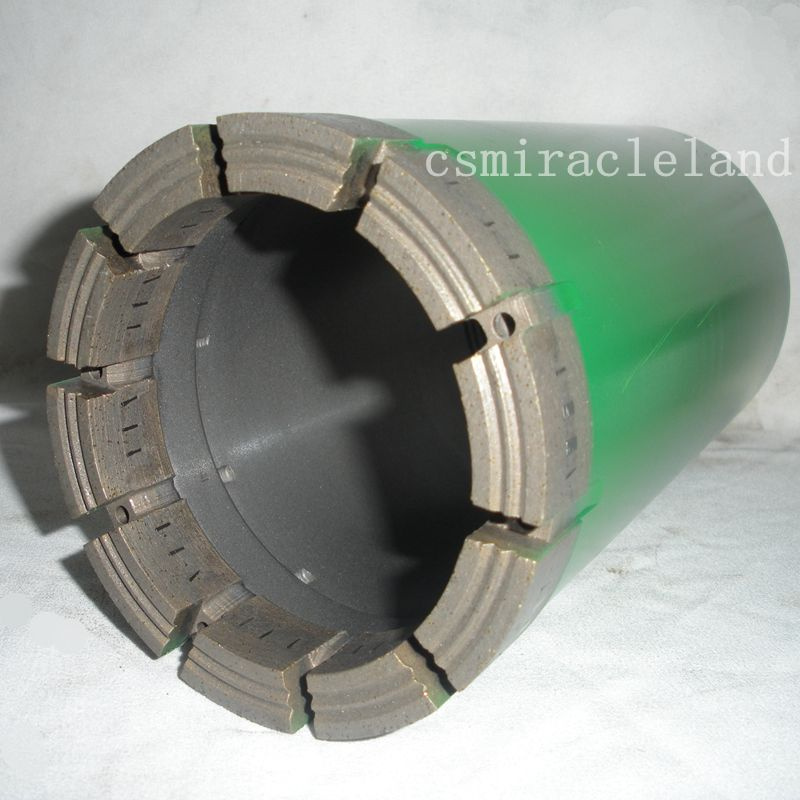

Product Description
The main crown technical parameters of impregnated diamond core bits include diamond grade,size,
concentrarion and quality,matrix hardness and crown shapes. The users can make rational selections according to the formations to be drilled.
To avoid excessive bit wear, tungsten carbide inserts are used on both sides on the waterway, and gage stones are a bit larger.
We are also manufactured and exported all kind of drilling accessories, such as core bits, non-coring bits, reaming shells, casing shoes & casing bits, core barrels, overshot, drill rods, casing tubes and other drilling tools.
Sizes Available:
Diamond core drill bits
A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,
H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short
S-Gauge Core Bits: SWF-Long, SWF-Short
U-Gauge Core Bits: UWF-Long, UWF-Short
Z-Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 & TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-66, T2-76, T2-76Coreline, T2-86,
T2-86 Coreline, T2-101, T2-101 Coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B Series(IS03552-1)Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
and all other standard CDDA, DCDMA, Crealius, and ISO sizes .
Dimensions of Core Bits:
| A-Gauge Core Bits |
| Size | Outside diameter | Inside diameter |
| inch | mm | inch | mm |
| AQ | 1.880/1.870 | 47.75/47.50 | 1.607/1.057 | 27.10/26.85 |
| AQ-RSG | 1.895/1.885 | 48.13/47.88 | 1.067/1.057 | 27.10/26.85 |
| AWG,AX | 1.880/1.870 | 47.75/47.50 | 1.190/1.180 | 30.23/29.97 |
| AWM | 1.880/1.870 | 47.75/47.50 | 1.190/1.180 | 30.23/29.97 |
| AWT | 1.880/1.870 | 47.75/47.50 | 1.286/1.276 | 32.66/32.41 |
| LTK48 | 1.880/1.870 | 47.75/47.50 | 1.394/1.384 | 35.40/35.15 |
| B-Gauge Core Bits |
| BQ | 2.350/2.340 | 59.69/59.44 | 1.438/1.428 | 36.52/36.27 |
| BQ-RSG | 2.365/2.355 | 60.77/59.82 | 1.438/1.428 | 36.52/36.27 |
| BQ-2.400 | 2.045/2.395 | 61.09/60.83 | 1.438/1.428 | 36.52/36.27 |
| BQ3 | 2.350/2.340 | 59.69/59.44 | 1.325/1.315 | 33.65/33.40 |
| BWG,BX | 2.350/2.340 | 59.69/59.44 | 1.660/1.650 | 42.16/41.91 |
| BWM | 2.350/2.340 | 59.69/59.44 | 1.660/1.650 | 42.16/41.91 |
| BWT | 2.350/2.340 | 59.69/59.44 | 1.755/1.745 | 44.58/44.32 |
| LTK60 | 2.350/2.340 | 59.69/59.44 | 1.742/1.732 | 44.25/44.00 |
| TBW | 2.350/2.340 | 59.69/59.44 | 1.785/1.775 | 45.34/45.09 |
| N-Gauge Core Bits |
| NQ | 2.970/2.960 | 75.44/75.19 | 1.880/1.870 | 47.75/47.50 |
| NQ-RSG | 2.985/2.975 | 75.82/75.57 | 1.880/1.870 | 47.75/47.50 |
| NQ-3.032 | 3.037/3.027 | 77.14/76.89 | 1.880/1.870 | 47.75/47.50 |
| NQ2 | 2.970/2.960 | 75.44/75.19 | 2.000/1.990 | 50.80/50.55 |
| NQ2-RSG | 2.985/2.975 | 75.82/75.57 | 2.000/1.990 | 50.80/50.55 |
| NQ3,NQTT | 2.970/2.960 | 75.44/75.19 | 1.780/1.770 | 45.21/44.96 |
| NQ3-RSG | 2.985/2.975 | 75.82/75.57 | 1.780/1.770 | 45.21/44.96 |
| NQ3-3.032 | 3.037/3.027 | 77.14/76.89 | 1.780/1.770 | 45.21/44.96 |
| LMLC | 2.970/2.960 | 75.44/75.19 | 2.052/2.042 | 52.12/51.87 |
| NWG, NX | 2.970/2.960 | 75.44/75.19 | 2.160/2.150 | 54.86/54.61 |
| NWM | 2.970/2.960 | 75.44/75.19 | 2.160/2.150 | 54.86/54.61 |
| NWT | 2.970/2.960 | 75.44/75.19 | 2.318/2.308 | 58.87/58.62 |
| TNW | 2.970/2.960 | 75.44/75.19 | 2.394/2.384 | 60.80/60.55 |
| H-Gauge Core Bits |
| HQ | 3.770/3.755 | 95.76/95.38 | 2.505/2.495 | 63.63/63.38 |
| HQ-RSG | 3.790/3.755 | 96.27/95.89 | 2.505/2.495 | 63.63/63.38 |
| HQ-3.830 | 3.840/3.825 | 97.54/97.16 | 2.505/2.495 | 63.63/63.38 |
| HQ-3.895 | 3.897/3.882 | 98.98/98.60 | 2.505/2.495 | 63.63/63.38 |
| HQ3, HQTT | 3.770/3.755 | 95.76/95.38 | 2.411/2.401 | 61.24/60.99 |
| HQ3-RSG | 3.790/3.755 | 96.27/95.89 | 2.411/2.401 | 61.24/60.99 |
| HQ3-3.830 | 3.840/3.825 | 97.54/97.16 | 2.411/2.401 | 61.24/60.99 |
| HQ3-3.895 | 3.897/3.882 | 98.98/98.60 | 2.411/2.401 | 61.24/60.99 |
| HMLC | 3.897/3.882 | 98.98/98.60 | 2.505/2.495 | 63.63/63.38 |
| HWF-Long | 3.912/3.897 | 99.36/98.98 | 3.005/2.995 | 76.33/76.08 |
| HWF-Short | 3.897/3.882 | 98.98/98.60 | 3.005/2.995 | 76.33/76.08 |
| HWG, HX | 3.897/3.882 | 98.98/98.60 | 3.005/2.995 | 76.33/76.08 |
| HWM | 3.897/3.882 | 98.98/98.60 | 3.005/2.995 | 76.33/76.08 |
| HWT | 3.897/3.882 | 98.98/98.60 | 3.192/3.182 | 81.08/8082 |
| P-Gauge Core Bits |
| PQ | 4.815/4.795 | 122.30/121.80 | 3.350/3.340 | 85.09/84.84 |
| PQ3 | 4.815/4.795 | 122.30/121.80 | 3.275/3.265 | 83.18/82.93 |
| PWF-Long | 4.755/4.740 | 120.78/120.40 | 3.635/3.620 | 92.33/91.95 |
| PWF-Short | 4.735/4.715 | 120.27/119.76 | 3.635/3.620 | 92.33/91.95 |
| S-Gauge Core Bits |
| SWF-Long | 5.755/5.740 | 146.18/145.80 | 4.447/4.432 | 112.95/112.57 |
| SWF-Short | 5.735/5.715 | 145.67/145.16 | 4.447/4.432 | 112.95/112.57 |
| U-Gauge Core Bits |
| UWF-Long | 6.880/6.860 | 174.75/174.24 | 5.515/5.495 | 140.08/139.57 |
| UWF-Short | 6.855/6.825 | 174.12/173.36 | 5.515/5.495 | 140.08/139.57 |
| Z-Gauge Core Bits |
| ZWF-Long | 7.880/7.860 | 200.15/199.64 | 6.515/6.495 | 165.48/164.97 |
| ZWF-Short | 7.855/7.825 | 199.52/198.76 | 6.515/6.495 | 165.48/164.97 |
| T, TT, T2 & TB Series Metric Core Bits |
| T36 | 1.422/1.412 | 36.12/35.87 | 0.859/0.849 | 21.82/21.57 |
| TT46 | 1.818/1.808 | 46.18/45.92 | 1.394/1.384 | 35.40/35.15 |
| T2-46 | 1.818/1.808 | 46.18/45.92 | 1.253/1.243 | 31.82/31.57 |
| TB56 | 2.220 | 56.30 | 1.640 | 41.70 |
| TT56 | 2.210/2.200 | 56.13/55.88 | 1.788/1.778 | 45.41/45.16 |
| T2-56 | 2.210/2.200 | 56.13/55.88 | 1.647/1.637 | 41.83/41.58 |
| T2-66 | 2.603/2.593 | 66.12/65.87 | 2.040/2.030 | 51.81/51.56 |
| T2-76 | 2.997/2.987 | 76.12/75.87 | 2.434/2.424 | 61.82/61.57 |
| T2-76 Coreline | 2.997/2.987 | 76.12/75.87 | 2.288/2.278 | 58.12/57.87 |
| T2-86 | 3.391/3.381 | 86.13/85.88 | 2.828/2.818 | 71.83/71.58 |
| T2-86 Coreline | 3.391/3.381 | 86.13/85.88 | 2.682/2.672 | 68.13/67.88 |
| T2-101 | 3.981/3.971 | 101.12/100.87 | 3.300/3.290 | 83.82/83.57 |
| T2-101 Coreline | 3.971/3.971 | 101.12/100.87 | 3.155/3.145 | 80.13/79.88 |
| T6 Series Metric Core Bits |
| T6-76 | 2.997/2.987 | 76.12/75.87 | 2.249/2.239 | 57.12/56.87 |
| T6-86 | 3.391/3.381 | 86.13/85.88 | 2.643/2.633 | 67.13/66.88 |
| T6-101 | 3.981/3.971 | 101.12/100.87 | 3.115/3.105 | 79.12/78.87 |
| T6-116 | 4.575/4.560 | 116.20/115.82 | 3.667/3.657 | 93.14/92.89 |
| T6-131 | 5.165/5.150 | 131.19/130.81 | 4.257/4.247 | 108.13/107.88 |
| T6-146 | 5.755/5.740 | 146.18/145.8 | 4.847/4.837 | 123.11/122.86 |
| T6S Series Metric Core Bits |
| T6S-76 | 3.009/2.999 | 76.43/76.18 | 1.883/1.873 | 47.83/47.58 |
| T6S-86 | 3.403/3.393 | 86.43/86.18 | 2.277/2.267 | 57.83/57.58 |
| T6S-101 | 3.993/3.983 | 101.43/101.18 | 2.828/2.818 | 71.83/71.58 |
| T6S-116 | 4.586/4.571 | 116.48/116.10 | 3.379/3.369 | 85.83/85.58 |
| T6S-131 | 5.177/5.162 | 131.48/131.10 | 3.970/3.960 | 100.83/100.58 |
| T6S-146 | 5.767/5.752 | 146.48/146.10 | 4.560/4.550 | 115.83/115.58 |
| B Series (ISO3552-1) Metric Core Bits |
| B36 | 1.422/1.412 | 36.12/35.87 | 0.859/0.849 | 21.82/21.57 |
| B46 | 1.818/1.808 | 46.18/45.92 | 1.253/1.243 | 31.82/31.57 |
| B56 | 2.210/2.200 | 56.13/55.88 | 1.647/1.637 | 41.83/41.58 |
| B66 | 2.603/2.593 | 66.12/65.87 | 2.040/2.030 | 51.81/51.56 |
| B76 | 2.997/2.987 | 76.12/75.87 | 2.434/2.424 | 61.82/61.57 |
| B86 | 3.391/3.381 | 86.13/85.88 | 2.828/2.818 | 71.83/71.58 |
| B101 | 3.981/3.971 | 101.12/100.87 | 3.418/3.408 | 86.82/86.57 |
| B116 | 4.575/4.560 | 116.20/115.82 | 4.009/3.999 | 101.83/101.58 |
| B131 | 5.165/5.150 | 131.19/130.81 | 4.599/4.589 | 116.82/116.57 |
| B146 | 5.755/5.740 | 146.18/145.80 | 5.190/5.180 | 131.82/131.57 |
