Prod Model: |
SUDCD |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Tech: |
Laser Welding |
Application: |
Concrete, Reinforced Concrete, Brick, Stone |
Type: |
Core Drill |
Product Description

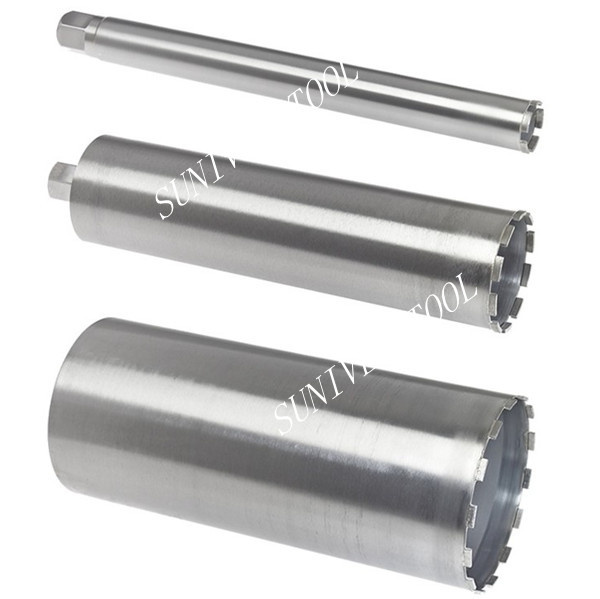

Diamond core drill for reinforced concrete, concrete, brick, stone:Our Diamond Core Drill for reinforced concrete, concrete, brick, stone, are specially made for drilling holes in construction site, and come in several sizes ranging from 16mm to 600mm in diameter. These diamond segmented core bits make it easy to drill holes in masonry project.
There are three type we produce: 1. Wet use diamond core drill for reinforced concrete or hard stone: (dry use is also OK in concrete)
Diameter: 16mm-600mm
Length: 300/350/400/450/500mm
Thread: 1-1/4"UNC or as you request
2. Dry use diamond core drill for concrete, brick, etc.
Diameter: 25mm-150mm
Length: 150MM
Thread: M16
3. Dry use switch hole bits for concrete, brick, etc.
Diameter: 68mm, 82mm, 102mm
Length: 75mm
Thread: M16+ Twist drill+ SDS plus connection or Hexagon connection.
Our diamond core drill features:
1. Laser welding make sure the segments endure more strength when working, protecting operator safe when doing drilling job.
2. Diamond aligned (Matrix-Tech) offer the top speed and best life and steady work.
3. Competitive price compare with famous brand in the world.
Diameter |
Length |
Teeth |
Segment Size |
φ 32 |
150 |
3 |
15*3*10 |
φ 38 |
150 |
3 |
15*3*10 |
φ 42 |
150 |
3 |
15*3*10 |
φ 52 |
150 |
3 |
24*3.5*10 |
φ 58 |
150 |
3 |
24*3.5*10 |
φ 63 |
150 |
3 |
24*3.5*10 |
φ 65 |
150 |
3 |
24*3.5*10 |
φ 68 |
150 |
3 |
24*3.5*10 |
φ 72 |
150 |
4 |
24*3.5*10 |
φ 82 |
150 |
4 |
24*3.5*10 |
φ 92 |
150 |
4 |
24*3.5*10 |
φ 102 |
150 |
4 |
24*3.5*10 |
φ 110 |
150 |
5 |
24*3.5*10 |
φ 112 |
150 |
5 |
24*3.5*10 |
φ 117 |
150 |
5 |
24*3.5*10 |
φ 122 |
150 |
6 |
24*3.5*10 |
φ 127 |
150 |
6 |
24*3.5*10 |
φ 132 |
150 |
6 |
24*3.5*10 |
φ 142 |
150 |
6 |
24*3.5*10 |
φ 152 |
150 |
6 |
24*4.0*10 |
φ 162 |
150 |
7 |
24*4.0*10 |
φ 182 |
150 |
7 |
24*4.0*10 |
φ 200 |
150 |
8 |
24*4.0*10 |
Diameters |
Segments |
Length&Thread |
Segment siz (LxTxH) |
φ25mm |
4 |
350MM/400mm/450mm
5/4"-UNC/1/2"GAS
|
15*3*10 |
φ 30 mm |
4 |
15*3*10 |
φ 35 mm |
4 |
15*3*10 |
φ 40 mm |
4 |
24x10x3.5 |
φ 45 mm |
5 |
24x10x3.5 |
φ 50 mm |
5 |
24x10x3.5 |
φ 56 mm |
6 |
24x10x3.5 |
φ 60 mm |
6 |
24x10x3.5 |
φ 66 mm |
6 |
24x10x3.5 |
φ 70 mm |
7 |
24x10x3.5 |
φ 76 mm |
7 |
24x10x3.5 |
φ 80 mm |
7 |
24x10x3.5 |
φ 86 mm |
8 |
24x10x3.5 |
φ 90 mm |
8 |
24x10x3.5 |
φ 101 mm |
9 |
24x10x3.5 |
φ 107 mm |
9 |
24x10x3.5 |
φ 112 mm |
10 |
24x10x3.5 |
φ 12 2mm |
10 |
24x10x3.5 |
φ 132 mm |
11 |
24x10x3.5 |
φ 143 mm |
11 |
24x10x3.5 |
φ 152 mm |
12 |
24x10x4.0 |
φ 158 mm |
12 |
24x10x4.0 |
φ 161 mm |
12 |
24x10x4.0 |
φ 171 mm |
13 |
24x10x4.5 |
φ 181 mm |
14 |
24x10x4.5 |
φ 200 mm |
15 |
24x10x4.5 |
φ 218 mm |
16 |
24x10x4.5 |
φ 225 mm |
16 |
24x10x4.5 |
φ 250 mm |
17 |
24x10x5.0 |
φ 270 mm |
19 |
24x10x5.0 |
φ 300 mm |
21 |
24x 10x 5.0 |
φ 320 mm |
22 |
24x 10x 5.0 |
φ 350 mm |
23 |
24x 10x 5.0 |
Diameter |
Length |
Teeth |
Segment Size |
φ 68 |
75 |
3 |
24*3.5*10 |
φ 72 |
75 |
4 |
24*3.5*10 |
φ 82 |
75 |
4 |
24*3.5*10 |
φ 102 |
75 |
4 |
24*3.5*10 |
