| Prod Model: |
1A1, 1A1R, 1F1R, 1A8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
General Cutting of Granite, Salte, Sandstone, etc |
| Feature: |
Fast Cutting, Long Diamond Life, No Chipping |
| Bond: |
Special Bond Design |
| Cutting Condition: |
Dry and Wet |
| Thickness: |
0.019"-0.059" |
| Diameter: |
4"-16" |
| Core/Body: |
Steel |
| Advantage: |
Highly Durable |
| Manufacturer: |
E-Grind |
| Packing: |
Box |
| Abrasive: |
Superabrasive |
| Types: |
Cutting Wheel |
| Working Style: |
Cutting |
| Material: |
Diamond&CBN |
| Shapes: |
1A1r, 1f1r, 1A8 |
| Grain Size: |
D126-D46 |

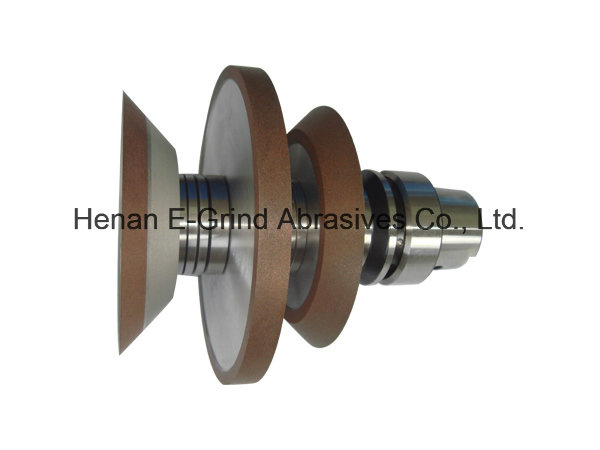

Product Description
Diamond Cut-Off Blades are for cutting tungsten carbide, alloys, quartz, ceramics, glass, carbon fibre composites, fiber glass etc.
CBN Cut-Off Blades are for cutting HSS, Hardened Steel and other ferrous material.
At the moment our Cut Off diamond/CBN wheels are exported to many countries in large volume.
Our Cut-Off blades have below advantages:1)High cutting speed
2)Free cutting action
3)Highly durable
4)Continuous uniformity and performance over time
5)Bonds available for both Wet cut and Dry Cut
Steel core
Size Range: | Shape | Diameter(mm) | Thickness(mm) | H(mm) |
| 1A8 | 20.0≤D≤152.4 | 0.08≤D≤2.0 | 4.0≤D≤114.3 |
| 1A1R | 30.0≤D≤400.0 | 0.2≤D≤2.0 | 4.0≤D≤127.0 |

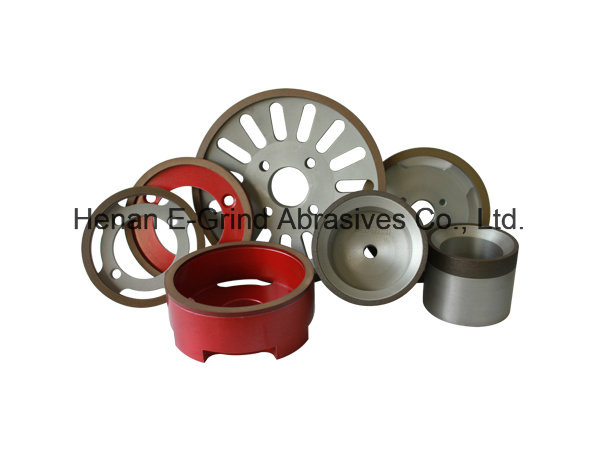

Other Products Of Ours:
With 40 years experience in Superabrasive industry, E-Grind Abrasives is a very reliable partner in supplying full range of Diamond and CBN grinding wheels for many industries: Woodworking, Die&Tooling, Bearing, Paper-Making, Automobile, Aerospace, Semi-Conductor...Our technology and bond systems are from US and Europe. Our producing machines are mainly imported from US, Europe, Japan and Taiwan; Specially we have 6 CNC machines for the machining and grinding our products; And the testing machines are also from Japan and Europe. All of these make our products to be premium grade with high tolerance and to meet US and Europe standard and level. Our capacity is 30, 000PCS of Diamond CBN wheels per month; Meanwhile we have more than 3000 sets of mold available; More than 4000 wheel specs; Thousands of standard wheels in stock; Customs made wheels are always available. All these make us able to supply wheels in fast delivery time: 5 days for urgent items and 14 days for standard items.
