| Prod Model: |
stone cutting blade |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

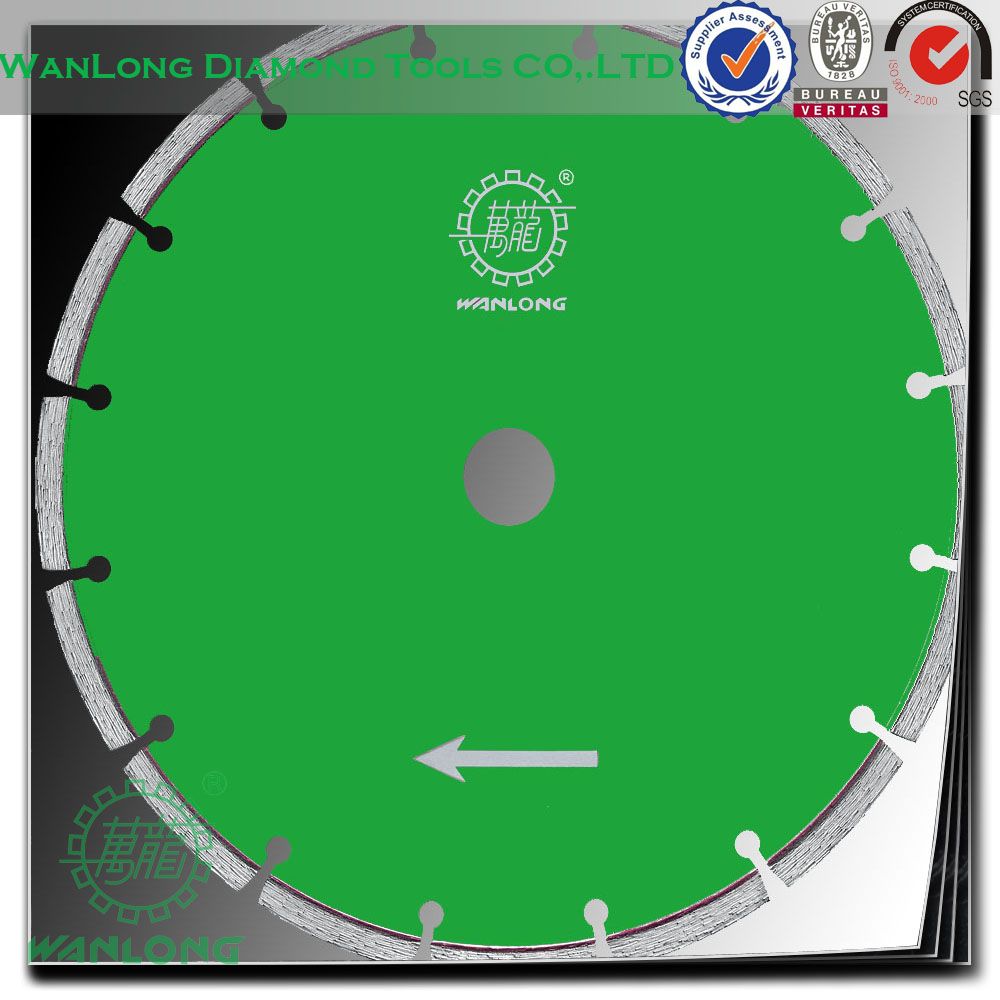

Edge Cutting Blade |
| Cutting Life: |
Long |
| Segment Bond: |
Sinter |
| Segment Material: |
Diamond |
| Quality: |
High Performance |
| Use: |
Wet and Dry Cutting |
| Size: |
Dia:200mm |
| Sharp: |
T, R, Fan, Short, Sandwich, Horizontal |
| Graininess: |
300# |
| Thickness: |
10mm |
| Shape: |
Round |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting, Drilling, Abrasive and Carving, Engineering Material, Optical Glass Cutting, Lab Use Super-thin Saw Blade, Semiconductor Cutting, Arts Cutting, Fire-Retardant, Porcelain, Plastics, Laminate Plate |
| Customized: |
Customized |
| Brand: |
Wanlong |
| Saw Blade External Diameter: |
200mm |
| Specification: |
8" |
Product Description
Brief introduction: High Frequency welded, for granite, marble, slate, limestone, sandstone, ceramic tile, artificial stone cutting, used for cutting machine.
Characteristics: Fast cutting speed, long life, stable performance for long term.
For other specification and sizes are availble upon request.
Diameter
(mm) | Width
(mm) | Height (mm) | Length
(mm) | Number of
segment (pcs) | Inner hole of
core (mm) | Thickness of
core (mm) |
| 200 | 3.2 | 10,12,15 | 40 | 14 | 50,60 | 1.8 |
| 250 | 3.2 | 10,12,15 | 40 | 17 | 50,60 | 2.2 |
| 300 | 3.2 | 10,12,15 | 40 | 21 | 50,60 | 2.2 |
| 350 | 3.2 | 10,12,15,20 | 40 | 24 | 50,60 | 2.2 |
| 400 | 3.6 | 10,12,15,20 | 40 | 28 | 50,60 | 2.6 |
| 450 | 4 | 10,12,15,20 | 40 | 32 | 50,60 | 3 |
| 500 | 4 | 10,12,15,20 | 40 | 36 | 50,60 | 3 |
| 550 | 4.6 | 10,12,15,20 | 40 | 40 | 50,60 | 3.6 |
| 600 | 4.6 | 10,12,15,20 | 40 | 42 | 50,60 | 3.6 |
| 700 | 5 | 10,12,15,20 | 40 | 52 | 50,60 | 4 |
| 750 | 5.5 | 10,12,15,20 | 40 | 56 | 50,60 | 4.5 |
| 800 | 5.5 | 10,12,15,20 | 40 | 46 | 50,60 | 4.5 |
| 850 | 5.5 | 10,12,15,20 | 40 | 50 | 50,60 | 4.5 |
