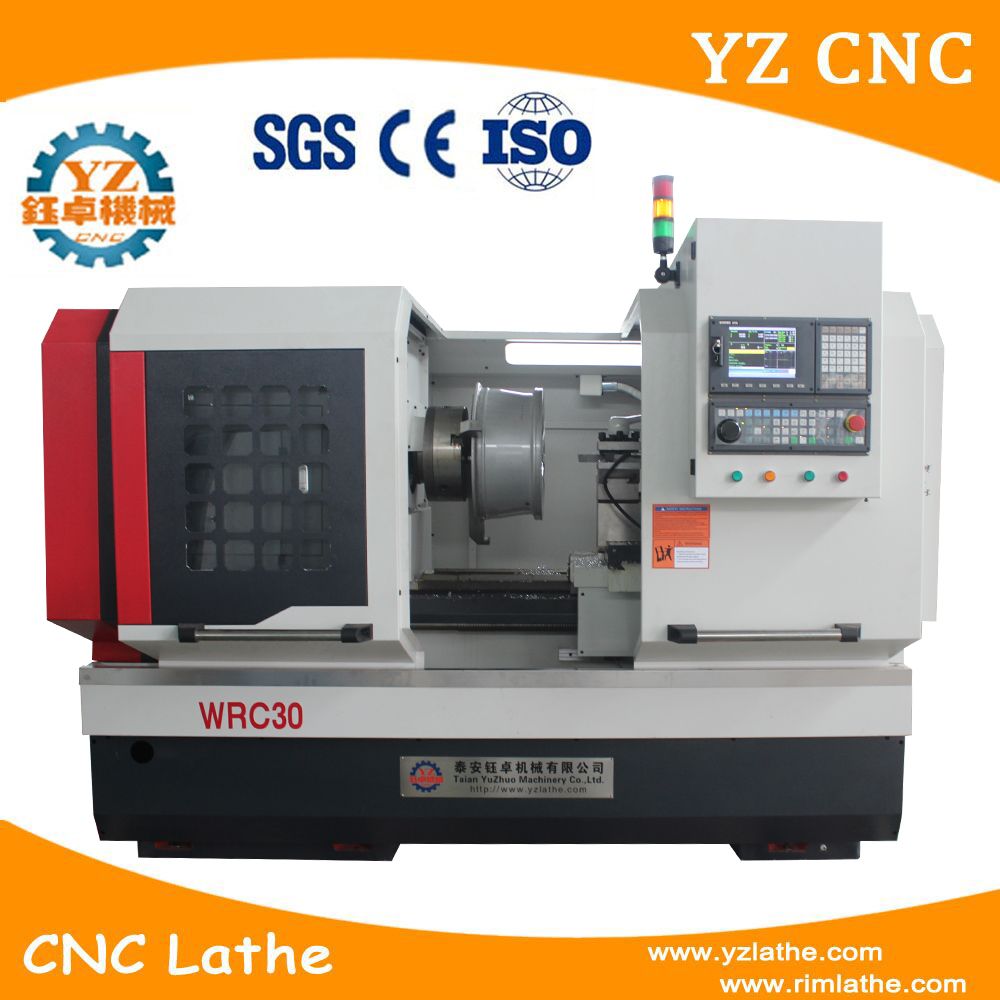

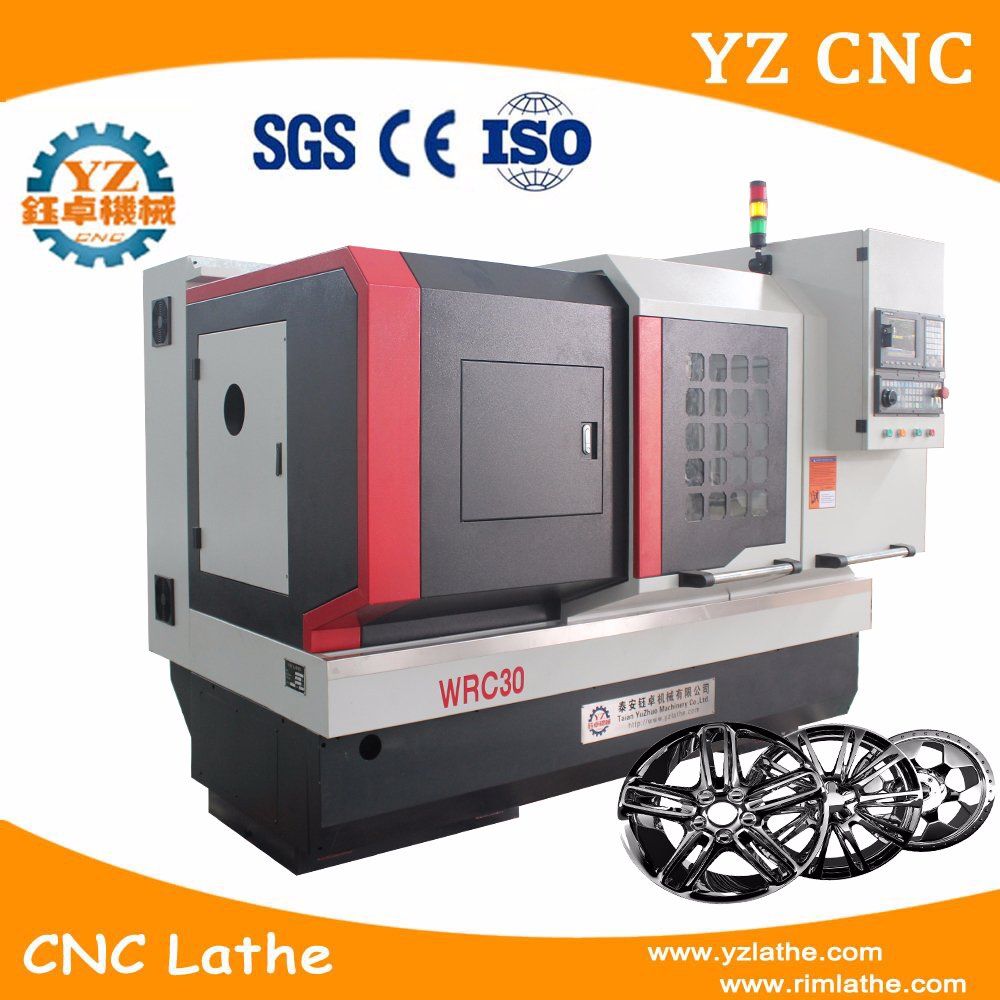

Diamond Cutting Refurbish Rims CNC Lathe

Name: Diamond Cutting Refurbish Rims CNC Lathe
Brand: tool-buy.com
SKU: 688446221
Availability: InStock
Rating: 4.8 (146 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Taian Yuzhuo Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	WRC32
Product Name:	Diamond Cutting Refurbish Rims CNC Lathe
Power:	11kw
Max.Wheel:	32 Inch
Warranty:	One Year
Function:	Repair Wheel
Voltage:	380V/220V
Control System:	Syntec
Accessory:	Diamond Cutter Tools
Max. Swing Diameter:	800mm
Turret Type:	4 Station Electrix Turret
Process Usage:	Metal-Forming CNC Machine Tools
Control Method:	Open-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	High-End CNC Machine Tools
Movement Method:	CNC

Product Description

WRC32 Diamond cutting refurbish rims CNC LATHE

Specifciation:

ITEMS		WRC32
Max. swig over bed (mm)(inch)		Φ820 (32')
Max. Size of alloy wheel (inch)		32 inch
Adjustable stroke of carrier in X direction		100mm
Cross slide travel (mm)		450
Width of the rail (mm)		400
Length of the rail (mm)		1650
Size of the three-jaw chuck (inch)		16'
Range of spindle speed (RPM)		50~1800
Spindle speed control		Automatic
Spindle bore (mm)		Φ82
Taper of spindle bore		1:20(Φ90)
Max. size of tool post		25×25mm
Stations of tool carrier		4 position
Min. setting unit of motor		(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post		(Z) long 8m/min, (X) cross 6m/min
Motor power		11KW
Machine size	(L×W×H) (mm³)	2970 ×1660×2080
Package size		3120×1810×2350
Net weight		3500kgs

Standard configuration:
1-3-Jaws Chuck(With Special Soft Jaws)
2-Manual Quick Change Toolpost ,four-station turret,
3-Automatic lubrication system,
4-Turning the cooling system.
5-With probing system(TP300 Pioneer Sensing Probe TP300;)
6-Diamond Cutter 1 set
7-cnc controller syntec
8-Full Enclose(Security Guard Door)
9-Specific Digital Optimization Software
10-Training Video CD
11-Work Lighting System
Services:
1-After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect.
2-Alloy Wheel Refurbishemnt Advice from REAL WORLD experts in the Diamond Cutting and Alloy Wheel Refurbishment industry
3-Mechanical Support
4-Software Support
5-Comprehensive Training
6-Probe alloy wheel profile
