| Prod Model: |
HX115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: |
Round |
| Manufacturing Arts: |
Hot Pressed |
| Usage: |
Stone Cutting, Ceramic Tile |
| Brand: |
as You Need |
| Diameter: |
105mm, 115mm, 125mm, 175mm |
| Hole Size: |
20/22.23mm |
| Thickness: |
1.2-1.4mm |
| Segment Height: |
10mm |
Product Description

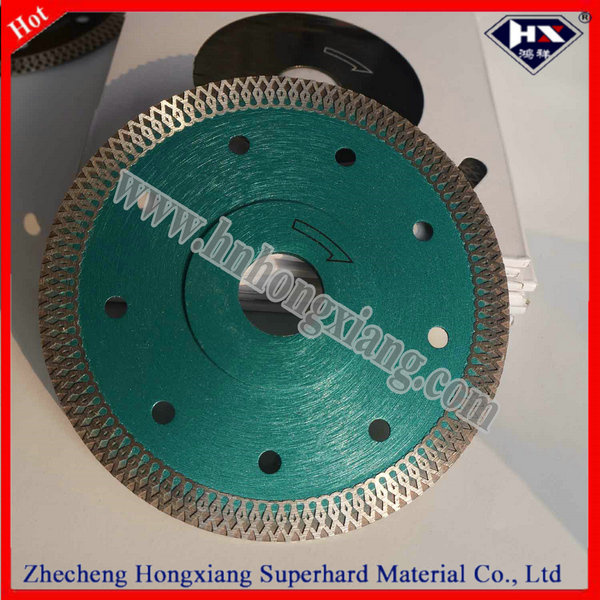

Diamond Saw Blade for Ceramic
Specifications
Diamond tools: 1.30% faster Sharpness 2.30%-40% higher Cutting Life 3.Noise reduction by 30% 4.Save 20% Power AbsorptionHOT PRESSED SUPER THIN TURBO BLADESDetail Size:| Diameter | Hole size | Thickness | Segment Height |
| 105mm | 20mm/22.23mm | 1.2mm | 10mm |
| 115mm | 22.23mm | 1.2mm | 10mm |
| 125mm | 22.23mm | 1.2mm | 10mm |
| 175mm | 22.23mm | 1.4mm | 10mm |
Features:Super thin turbo rim and soft band are especially designed for fast and smooth cutting.Applications:All kinds of ceramic tiles and porcelain.Machinery:Angle hand grinder, circular saw.Other diamond tools:
1. Usage
Used for Masonry, Special for cutting Stone, Ceramic tile, Wall bricks etc
2. Features:
1). Sharp cutting edge, long cutting life
2). Reliable and good stability
3). Well accepted for economical price and good quality
4). Original manufacturer, low cost
5). Work without water, but best cutting result with water
3. Payment:
---- FOB price.
---- 100% in advance.
---- By T/T, Western Union, Paypal.
4. Shipping
---- Generally in 7 days.
---- By DHL, EMS, TNT, UPS, Fedex etc
5. Brief introduction of office and factory:
---- China manufacturer founded in 1990.
---- Experienced engineers, skilled workers.
---- market is more than 52 countries.
---- Certification ISO9001: 2008
6. Package: Standard paper cartons
7. Size detail as follow:
PS: Any other size can be customized for you.
| Segmented type(special for ceramic,stone,wall brick etc) |
| diameter | Matrix thickness | hole | Segmented
thickness | Segmented
height | Segmented
number |
| 105 | 1.2 | 20 | 2 | 8 | 8 |
| 114 | 1 | 20 | 1.8 | 11 | 8 |
| 114 | 1.2 | 20 | 2 | 11 | 8 |
| 120 | 1.2-1.4 | 20 | 1.8-2 | 11 | 8 |
| 125 | 1.3-1.4 | 20 | 1.9-2.1 | 11 | 8 |
| 350 | Road cutting blade | 20 | 3.4 | 10/15 | |
| 400 | 20 | 3.8 | 10/15 | |
| 500 | 20 | 4 | 10/15 | |
