Diamond Cutting Saw Machine with Wire

Diamond Cutting Saw Machine with Wire
Price: US $ 2800/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: CY-STX-202
Weight: 100-500Kg
Power Source: AC220V

Product Description

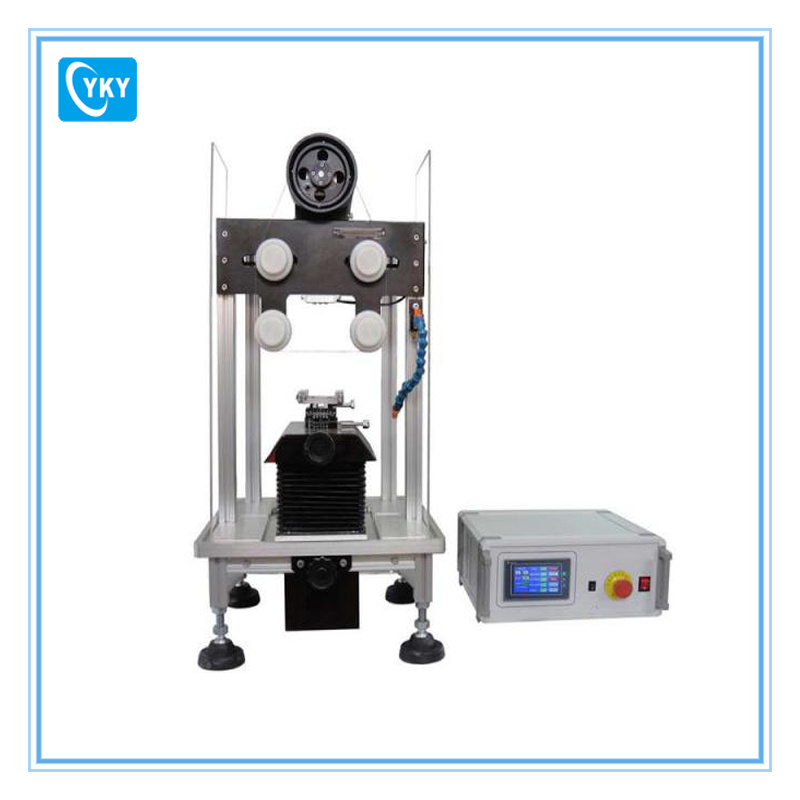

Diamond cutting saw machine with wire

Description of the low speed diamond saw:

CY-STX-202A (STX-202A is an upgraded version of CY-STX-202 since Mar 2014 with additional auto-control Y-axis) is a CE certified, small precision diamond wire saw for cutting sample ≤ 2" diameter or square up to 50mm in thickness. It is designed to provide a smooth cutting for many kinds of materials, especially for  fragile crystals and TEM or IC sample by using  0.28mm diameter x 15-meter long diamond impregnated wire. It is an ideal cutting tool for material research, TEM sample preparation, and  IC failure analysis.
Specification of the low speed diamond saw:
 Power Wire Saw Control Consol: Universal 110V or 240VAC  50/60Hz, 200W max.
Structure



Heavy-duty aluminum alloy structure with compact size .
 automatically controlled Y axis by the digital panel .
  single wire swing cutting with adjustable wire length from 5-15mm

Transparent plastic plates are included to prevent Coolant splashing.
Add an oil refill cup behind the forming tube (New design),
please apply 10-15 drops Anti-Wear Oil before first-time use.

Wire spooler motor, 3 Amps, Torque=1.8Nm
Sample stage                   Z axis: 50mm,  automatically controlled by digital panel
 Y axis: 50mm,  automatically controlled by digital panel
 Two dimension sample stage built in  360° degree horizontal rotating and +/-10° tilting
Cutting parametersFeed Speed: 0.01 mm/min to 40 mm/min adjustable
 Back Speed: 1  mm/min to 100 mm/min adjustable
Spooler spin speed: 1-260 RPM adjustable
Cutting depth:0.1-50mm
Positional accuracy: +/- 0.01 mm

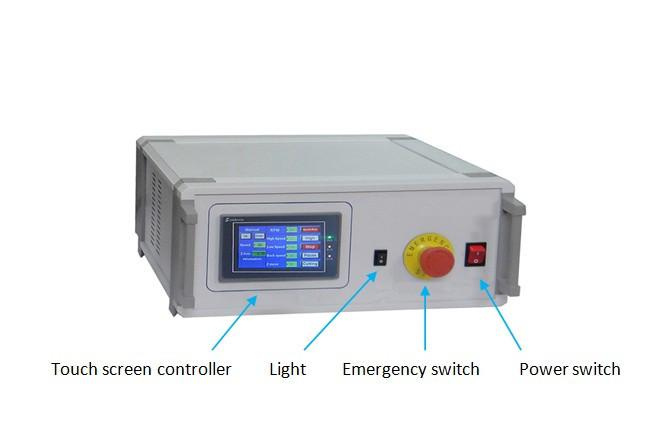

Controller & Touch ScreenColor touch screen controller will set up wire travel speed, cutting speed along Z axis and cutting width along Y axis
Diamond wire≤ 15 meters used for each installation
Wire tension Steel spring wire tension system with break wire alarm
Pneumatic tension system (optional)The wire saw can be upgraded with the pneumatic tension system. Because cutting wires with different diameters have different tension requirement for optimizing the cutting performance. With the pneumatic tensions system, the wire saw can handle different cutting wires from 0.1mm - 0.5mm dia. An air compressor is required. Please contact us for detail information.

Water Pump
One water pump is included for cooling diamond wire during cutting.   You must use anti-corrosive oil or radiator water as coolant     Warning:  must clean the machine after each cutting, especially using tap water as the coolant to prevent rust.
Product dimensions

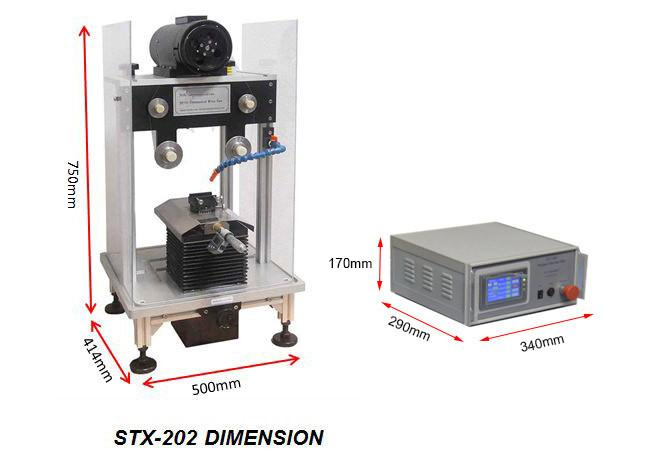

Saw: 414mm(L) × 500mm(W) × 750mm(H)
   Controller: 340mm(L) x 290mm(W) x 170mm(H)
Crate dimensions27"(L) x 23"W) x 40" (H)
Shipping Weight188 lbs with 48x40x44"
WarrantyOne year limited with lifetime support, not including cutting wire


reference picture of the low speed diamond saw:

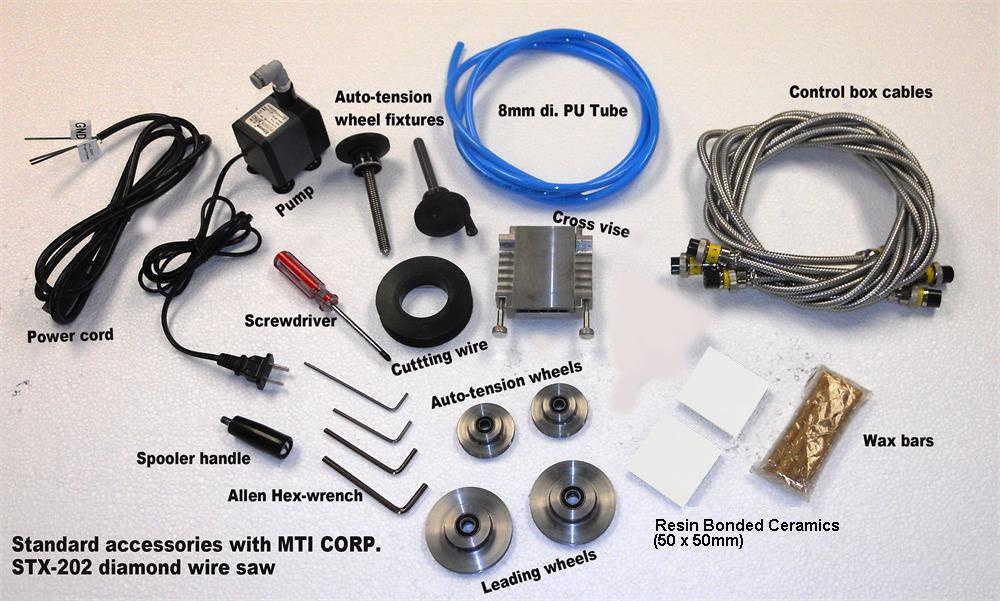

STANDARD PACKAGE:


No.DescriptionsQty
1CY-202 diamond wire saw1 unit
2Electrical control box1 unit
3Control box cable with Identical number
(Each cable is identical please wire accordingly)
3 pcs
4Diamond wire Ø0.3mm x 20meter(installed)1 pc
590-degree rotatable holder.(installed)1 pc
6Auto-tension wheel fixture2 pcs
7Two dimensions crossing vise 1 pc
8Diamond wire Ø0.3mm x 65meter (for spare)1 pc
9Allen hex wrench M3, 4, 5 1 set
10Cross-head screwdriver1 pc
11Leading wheel (for spare)2 pcs
12Auto-tension wheel (for spare)2 pcs
13Resin Bonded Ceramics for Samples Holding (50 x 50mm)2 pcs
14Wax bar 4 pcs
15Coolant tank1 pc
16Water pump (the pump voltage is the same as the saw voltage)1set
17Handle for spool1 unit
18Water splash guard4 pcs
19Oil can1 pc
20Power cord1 pc
215A Fuse2 pcs
22Diamond Blade Dressing Stone1 pc
23Ø8mm polyurethane tube for coolant system1 pc
