| Prod Model: |
HX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
High Efficiency Diamond Drill Bits of Thread Shan |
| Material: |
Diamond |
| Diameter: |
5mm-100mm |
| Length: |
75mm, 95mm |
| Custom Made: |
Yes |
Product Description

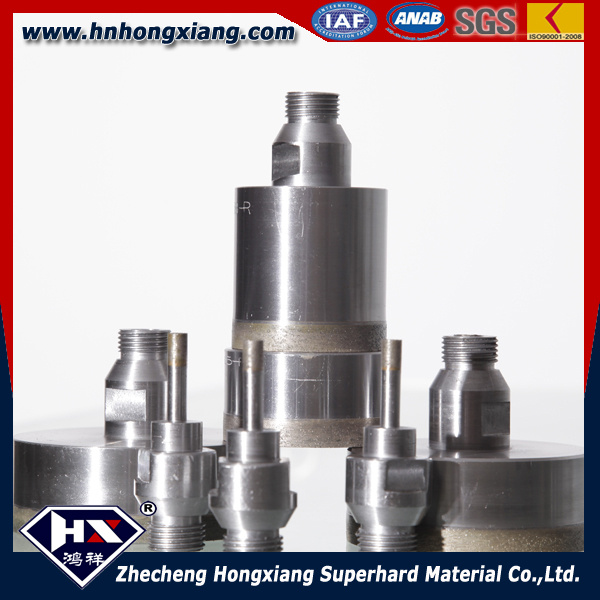

High efficiency diamond drill bits of thread shank for glass drilling :
1 fast drilling speed
2 high efficiency and less chipping
3 minimum material deformation
4 long life
We specialize in the production of diamond drill
Sharp, wear-resisting
Don't jumping edge
Long service life
Require lower WOB, high rotary speed and small flow rate, good concentricity
Wildly used in cutting glass
Diameter: 5mm - 100mm.
Total length: 70mm, 75mm, 90mm, 95mm
Dig holes. 5000+ ---- 10000+
Classed by suitable equipments:
1. Straight shank
2. Cone shank
3. Threaded shank
Segment Height: 10mm
Wall Thickness: 0.8mm-1mm
| Glass drill bit | thread shank | Glass drill bit | straight shank | Glass drill bit | Cone shank |
| Diameter | 5mm-100mm | Diameter | 5mm-100mm | Diameter | 5mm-100mm |
| length | 75mm,95mm | length | 60mm | length | 60mm |
| Thread size | 1/2" , 1/4" | diameter of shank | 8mm,10mm | Taper | 45 degree |
| Thickness | 1.0mm | Thickness | 1.0mm | Thickness | 1.0mm |
| Machine | bench drilling machine | Machine | bench drilling machine ,hand tool | Machine | Professional Punch machine |
Company:
Zhecheng Hongxiang Superhard Material Co., Ltd. affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and reasonable prices.
Our products include,
Synthetic diamond
Diamond powder
Polycrystalline Diamond composite ( PDC )
Diamond saw blade
Diamond glass tools
Diamond wheel
Diamond tools, etc.
Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order.
3. Advanced production equipment.
4. Own design team, can help you custom the packaging.
5. Own provincial engineering technology center.
6. D&B and ISO9001 Certificates
We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.
Warmly welcome all partners to join us for mutual benefits cooperation.
