| Prod Model: |
D8-D30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
20 |
| Work Length: |
42 |
| Total Length: |
80 |
| Water Supply: |
Water Fron The Inner Hole |
| Diamond Grit: |
50/60 |
| Graininess: |
50/60 |
| Thickness: |
5mm |
| Shape: |
Round |
| Kind: |
Diamond Wheel |
| Manufacturing Arts: |
Welding |
| Usage: |
Stone Cutting, Semiconductor Cutting, Optical Glass Cutting, Abrasive and Carving, Drilling |
| Brand: |
Xin Ya |
| Saw Blade External Diameter: |
8~30 |
| Specification: |
20 |
| Customized: |
Customized |
Product Description
Diameter X Segment
(mm) x Segment number | Work length
(mm) | Total length
(mm) | Diamond grit
| Type of technical
|
| 8 x 3 | 42 | 80 | 50/60 | welding |
| 10 x 3 | 42 | 80 | 50/60 | welding |
| 14 x 4 | 42 | 80 | 50/60 | welding |
| 16 x 4 | 42 | 80 | 50/60 | welding |
| 18 x 4 | 42 | 80 | 50/60 | welding |
| 20 x 4 | 42 | 80 | 50/60 | welding |
| 20 x 5 | 42 | 80 | 50/60 | welding |
| 22 x 5 | 42 | 80 | 50/60 | welding |
| 24 x 5 | 42 | 80 | 50/60 | welding |
| 26 x 6 | 42 | 80 | 50/60 | welding |
| 28 x 6 | 42 | 80 | 50/60 | welding |
| 30 x 6 | 42 | 80 | 50/60 | welding |

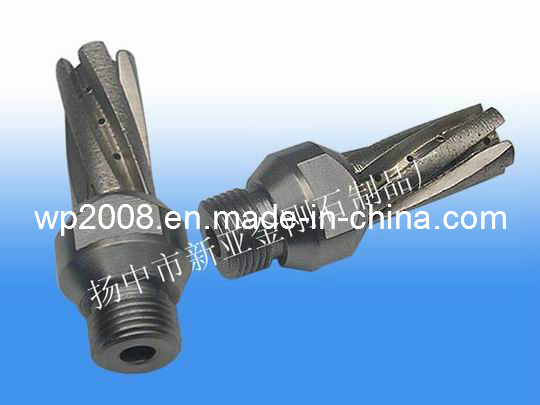

This kind of diamond router is metal bond,Mounted on CNC or any tool machinery, It features a clean aggressive cut on natural or engineered stone.
Suitable for milling cut the stone plate,glass plate or the ceramic plate,the thickness of the ptate from 1.0mm to 30mm can be processed by our diamond router.
The diamond router have water cooling hole at the center,Enough water cooling can increase the life time.
Diamond segment of the router: 3 segment, 4 segment, 5 segment, 6 segment.
Type of techinical:Metal bond segment on welding.
Type of water supply:Water from the inner hole. The diamond grit of the diamond router which we choose are all the top quality diamond grit,the diamond grit have top shock resistance performance and top grinding performance.
The diamond segment which welding on the diamond router are produced by the newest Vacuum-Hot pressing sintering machine,as the temperature of the hot pressing sintering is 800ºC~1000ºC, The high vacuum can protect the diamond grit without injury,the diamond grit will be no oxidation in the hot pressing sintering.
So this kind of diamond router have very good sharpness and long life time.
Good sharpness and small chipping of the cutting adge are our biggest advantage!
Try it,and you will love it!
Customized size available on request.
