| Prod Model: |
HZGS452 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Segment Material: |
Diamond Powder |
| Segment Type & Shape: |
Normal, Turbo; Sandwich,Groove,etc |
| Base & Matrix Type: |
Normal, Silent |
| Slot Type: |
V Shape, U Shape(Narrow or Wide),Key Hole Shape |
| Manufacturing Art: |
Sinter,Hot Press,Cold Press,Welding |
| Usage & Application: |
Cutting Granite, Marble, Sandstone,Concrete |
| Cutting Direction: |
Vertical Cut, Horizontal Cut |
| Cutting Condition: |
Dry Cut, Wet Cut |
| Perfromance Comparison: |
Sharp Diamond Blade, Wearable Diamond Blade |
| Quality Grade: |
High, Medium, Normal |
| Shape: |
Rectangle |
Product Description

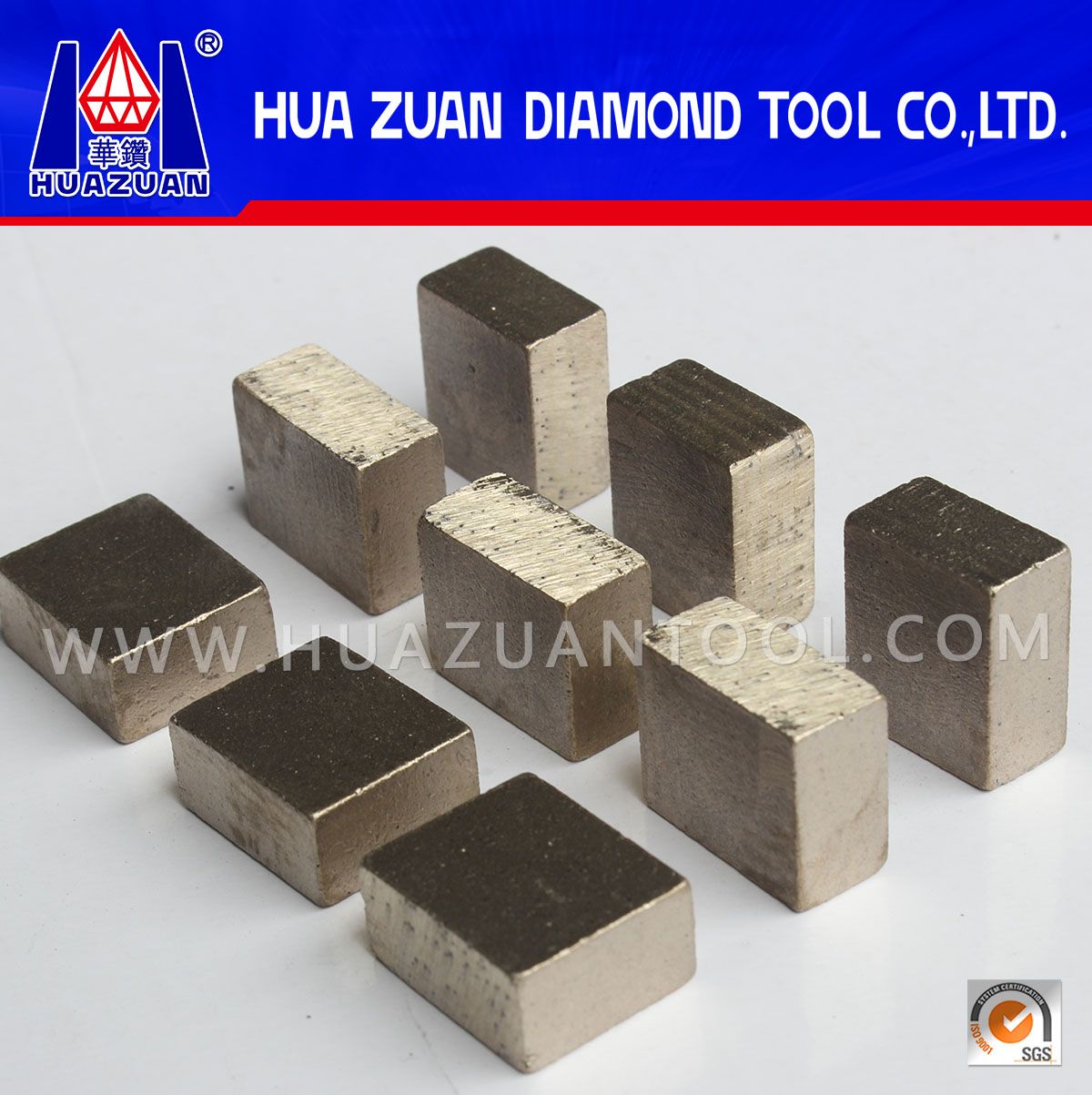

Product discription:
1. For Single Blade and Multi-disc blade used to cut and split stone slab, block and cubes
2. For smooth cutting,with a perfect chip-free edge
3. Best quality control system & select materials
4. Specially developed for general purpose cutting of hard,medium hard, soft granite
Specification:
| Diameter | Segment Dimension |
| Length | Thickness | Height |
| | T1 | T2 | |
| 250mm | 40 | 1.8/2.0 | 8/10 |
| 300mm | 40 | 1.8/2.2/2.4 | 8/10/12 |
| 350 mm | 40 | 3.2/3.6 | 8/10/12 |
| 400 mm | 40 | 3.2/3.6 | 8/10/12 |
| 500 mm | 40 | 4.0 | 10/12/15 |
| 600 mm | 40 | 4.6 | 10/12/15 |
| 800 mm | 40 | 5.6 | 10/12/15 |
| 1200 mm | 24 | 8.2
7.5 | 7.6
6.5 | 13.5/15
12/13 |
| 1600 mm | 24 | 9.0 | 8.4 | 13.5/15/20 |
| 1800 mm | 24 | 8.8 | 9.4 | 13.5/15/20 |
| 2000 mm | 24 | 10 | 11 | 15/20 |
| 2200 mm | 24 | 10 | 11 | 15/20 |
| 3000 mm | 24/30 | 12 | 13 | 20 |
| 3500 mm | 24/30 | 12 | 13 | 20 |
Other Specification Is Availbale Upon Your request.
Company Introduction:
Quanzhou Huazuan Diamond Tools Co.,Ltd.,established in 1994 and covering an area of more than 10,000 square meters,is an enterprise with more than 20 years' experience in research, development and production.
"HUAZUAN" means made in China,as solid and stable as diamond.Driven by diamond saw blade,diamond segment and diamond wire saw as for main products,company produce a series of high quality diamond grinding and polishing tools.
Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers.
With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology,and build the outstanding business relationship with more than 50 countries and region partners.
We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients,suppliers and staffs.In recent years,company make and practice a strategic plan to reinforce a high quality production system,create a consultant service team" and reached great success.
At present,China diamond tool constantly embody the competitiveness in the world ,we expect to contribute ourselves to change the poor quality image of China diamond tool in the world with our effect.
Quanzhou Huazuan Diamond Tools Co., Ltd., established in 1994 and covering an area of more than 10, 000 square meters, is an enterprise with more than 20 years' experience in research, development and production. "HUAZUAN" means made in China, as solid and stable as diamond. Driven by diamond saw blade, diamond segment and diamond wire saw as for main products, company produce a series of high quality diamond grinding and polishing tools. Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers. With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology, and build the outstanding business relationship with more than 50 countries and region partners. We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients, suppliers and staffs. In recent years, company make and practice a strategic plan to"reinforce a high quality production system, create a consultant service team" and reached great success. At present, China diamond tool constantly embody the competitiveness in the world, we expect to contribute ourself to change the poor quality image of China diamond tool in the world with our effort.
