| Prod Model: |
hx |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Diamond Grinding Wheel |
| Grade: |
a |
| Applician: |
Diamond Grinding Wheel |
| Diameter (mm): |
130-175 |
| Material: |
Diamond |
| Abrasive: |
Superabrasive |
| Shapes: |
Edge Shape |
| Types: |
Surface Grinding Wheel |
| Working Style: |
Surface Grinding |
| Grain Size: |
80#-320# |
| Cylindricity: |
Glass |
| Circular Degree: |
Glass |
Product Description

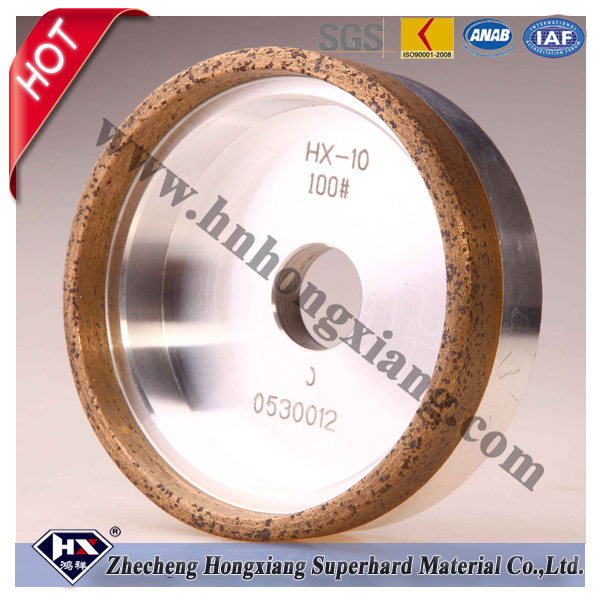

Details of Diamond Grinding Wheel for Straight Line Glass Machine:
| Name | Diameter (mm) | Width (mm) | High (mm) | Hole (mm) | Grit (#) |
| Diamond Giringing Wheel - Full Segment | 175 | 15 | 10 | 12/22/50/ Other | 80#/100#/180#/200#/240#/300#/400# |
| 150 | 15 | 10 |
| 130 | 10 | 10 |
| Diamond Giringing Wheel - Internal Segment | 175 | 8 | 10 |
| 175 | 15 | 10 |
| 150 | 10 | 10 |
| Diamond Giringing Wheel - Continuous | 150 | 8 | 8 |
| 150 | 6 | 10 |
| 130 | 10 | 10 |
| 130 | 8 | 8 |
| Diamond Giringing Wheel - Outer Segment | 150 | 8 | 10 |
| Diamond Giringing Wheel - Resin | 150 | 15 | 12 |
| 150 | 15 | 10 |
| 130 | 10 | 10 |
Applications:
1. Suit for: Flat glass, safety glass, tempered glass, architectural glass, frosted glass, patterned glass, Insulated glass, laminated glass, glass brick, optical glass, Auto Glass, solar glass etc
2. Usage: Glass grinding&edging, for coarse grinding, middle grinding&fine grinding etc
3. Machine: Straight edge machine, beveling machine, bilateral machine,
Numerical control machine, such as Bavelloni, Bottero, Glassline, Schiatti, etc machine
Faster service in emergency situations is available. Abundant stock, offer quick delivery.
4. Feature: Diamond grinding wheel used for glass etc material's grinding with high strength, compressive strength higher, hardness and good abrasion resistance, High efficiency, High precision, , and good roughness, little mold consumption, long working life&improve work condition.
Company information:
Established in 1990, Zhecheng Hongxiang Superhard Material Co., Ltd is a specialized enterprise that engages in the research, production and sales of various kinds of synthetic diamond and diamond tool, glass tools, which keep ahead in Chinese market. Our target: Advanced technology is the basis of high-quality products.
WELCOME TO VISIT OUR FACTORY! ! !
Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.
Our products include,
Synthetic diamond
Diamond powder
Diamond saw blade
Diamond drill bit
Poly crystalline Diamond composite ( PDC )
PCD wire drawing dies
Diamond glass tools
Diamond polishing pad
Diamond cutting tools
Diamond grinding tools
Diamond wheels
Diamond tools, etc.
Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order
3. Advanced production equipment
4. Own design team, can help you custom the packaging
5. Own provincial engineering technology center
6. D&B and ISO9001 Certificates
We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.
Warmly welcome all partners to join us for mutual benefits cooperation.
