| Prod Model: |
PDC 1313 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
PDC for Oil Drilling Industry |
| Color: |
Black |
| Size: |
Customer Size |
| Application: |
Oil |
| Market: |
Globla |
Product Description
Introduction

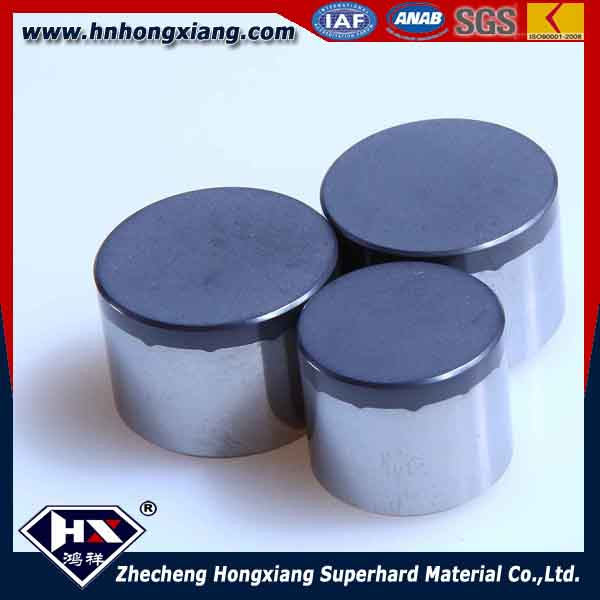

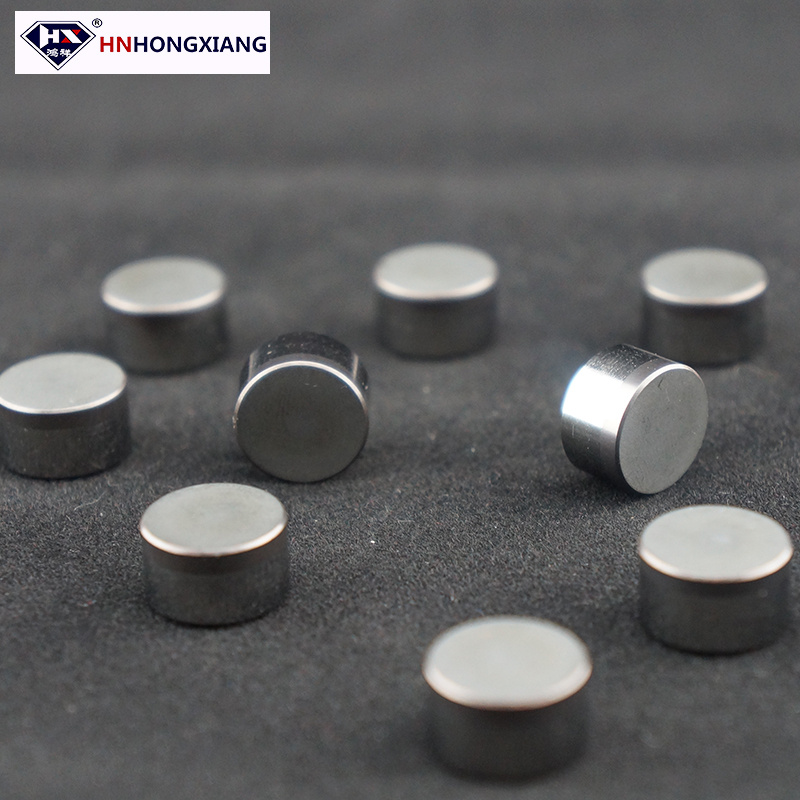

Made of synthetic diamond, kindly used for oil drill bit, high grade cutter, could cutting hard rock, glass, ceramic.
Advantages
1) With feature of high working efficiency, smooth surface
2) Advanced technics and strict process control
4) Long lifespan and stable performance
5) Competitive price and superior quality
6) Excellent service
Our products have experted to United Kingdom, France, Germany, Spain, Italy, USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey etc 52 countries and participated in many domestic and international exhibitions. Besides, our products have won good satisfaction and recogntion by foreign customers.
All of our business is carried out in full compliance with the ISO9001 Certification. Please contact us if you would like any further information.
| Product Number | Diameter
(D)(mm) | Height
(T) (mm) | Diamond Thickness
(t) (mm) | Diamond
Chamfer
(mm) |
| 1308 | 13.44±0.03 | 8.00±0.10 | 2.30±0.20 | 0.30±0.10 |
| 1313 | 13.44±0.03 | 13.20±0.10 | 2.30±0.20 | 0.30±0.10 |
| 1608 | 15.88/16.00±0.03 | 8.00±0.10 | 2.30±0.20 | 0.30±0.10 |
| 1613 | 15.88/16.00±0.03 | 13.20±0.10 | 2.30±0.20 | 0.30±0.10 |
| 1908 | 19.05±0.05 | 8.00±0.10 | 2.30±0.20 | 0.30±0.10 |
| 1913 | 19.05±0.05 | 13.20±0.10 | 2.30±0.20 | 0.30±0.10 |
| 1916 | 19.05±0.05 | 16.31±0.10 | 2.30±0.20 | 0.30±0.10 |
Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.
Our products include,
Synthetic diamond
Diamond powder
Diamond saw blade
Diamond drill bit
Poly crystalline Diamond composite ( PDC )
PCD wire drawing dies
Diamond glass tools
Diamond polishing pad
Diamond cutting tools
Diamond grinding tools
Diamond wheels
Diamond tools, etc.
Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order
3. Advanced production equipment
4. Own design team, can help you custom the packaging
5. Own provincial engineering technology center
6. D&B and ISO9001 Certificates
We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.
Warmly welcome all partners to join us for mutual benefits cooperation.
