| Prod Model: |
HUZ7811 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Wire Saw for Cutting Granite Marble Concrete |
| Hardness: |
Soft, Middle, Hard |
| Cutting Speed: |
10-40 |
| Wire Speed(M/S): |
30-40 |
| Technology: |
Sintered, Electroplated, Vacuum Brazed |
| Certification: |
ISO9001:2000, SGS |
| Beads Diameter: |
7.2-11.5mm |
| Price: |
Competitive |
| Grade: |
a |
| Production Processes: |
More Than 70 Processes, 100% Quality Testing |
| Saw Type: |
Chain Saw |
| Application: |
Granite,Marble,Concrete |
| Type: |
Fixed |
| Power Source: |
Hydraulic |
| Brand: |
Huazuan |
Product Description
There are some specifications for your reference:
Diamond wire saw for Granite quarry
Compared with other methods,the use of diamond wire saw for granite quarrying reduces the waste of quarry resource, no noise ,no dust ,block regular,high output and working efficiency.
| Beads diameter | Beads/meter | Coating | Stone hardness | Wire speed(m/s) | Cutting speed(m²/h) | Life (m²/m) |
Φ10.5mm
Φ11mm
Φ11.5mm | 40 | Rubber
Rubber + Spring | Soft | 25-30 | 8-12 | 16-22 |
| Middle | 22-25 | 4-8 | 8-15 |
| Hard | 18-22 | 2-4 | 7-9 |
Φ10.5mm
Φ11mm
Φ11.5mm | Plastic
Plastic +
Spring | Soft | 25-30 | 8-12 | 16-22 |
| Middle | 22-25 | 4-8 | 8-15 |
| Soft | 18-22 | 2-4 | 7-9 |
For granite quarry we recommend rubber and plastic wire,this can protect the wire saw rope very well and increase the wire's strength.
Diamond wire saw for Marble quarry
| Beads diameter | Beads/meter | Coating | Stone hardness | Wire speed(m/s) | Cutting speed(m²/h) | Life (m²/m) |
Φ10.5mm
Φ11mm
Φ11.5mm | 26/28 | Spring | Soft | 36-38 | 19-22 | 35-65 |
| Middle | 34-36 | 9-18 | 20-35 |
| Hard | 30-32 | 6-9 | 15-25 |
Φ10.5mm
Φ11mm
Φ11.5mm | 33 | Plastic
Plastic +
Spring | Soft | 36-38 | 19-22 | 35-65 |
| Middle | 34-36 | 9-18 | 20-35 |
| Hard | 30-32 | 6-9 | 15-25 |
Φ10.5mm
Φ11mm
Φ11.5mm | Rubber | Soft | 36-38 | 19-22 | 35-65 |
| Middle | 34-36 | 9-18 | 20-35 |
| Hard | 30-32 | 6-9 | 15-25 |
Spring , plastic(+spring ) and rubble diamond wire saw ,widely used for marble quarry.

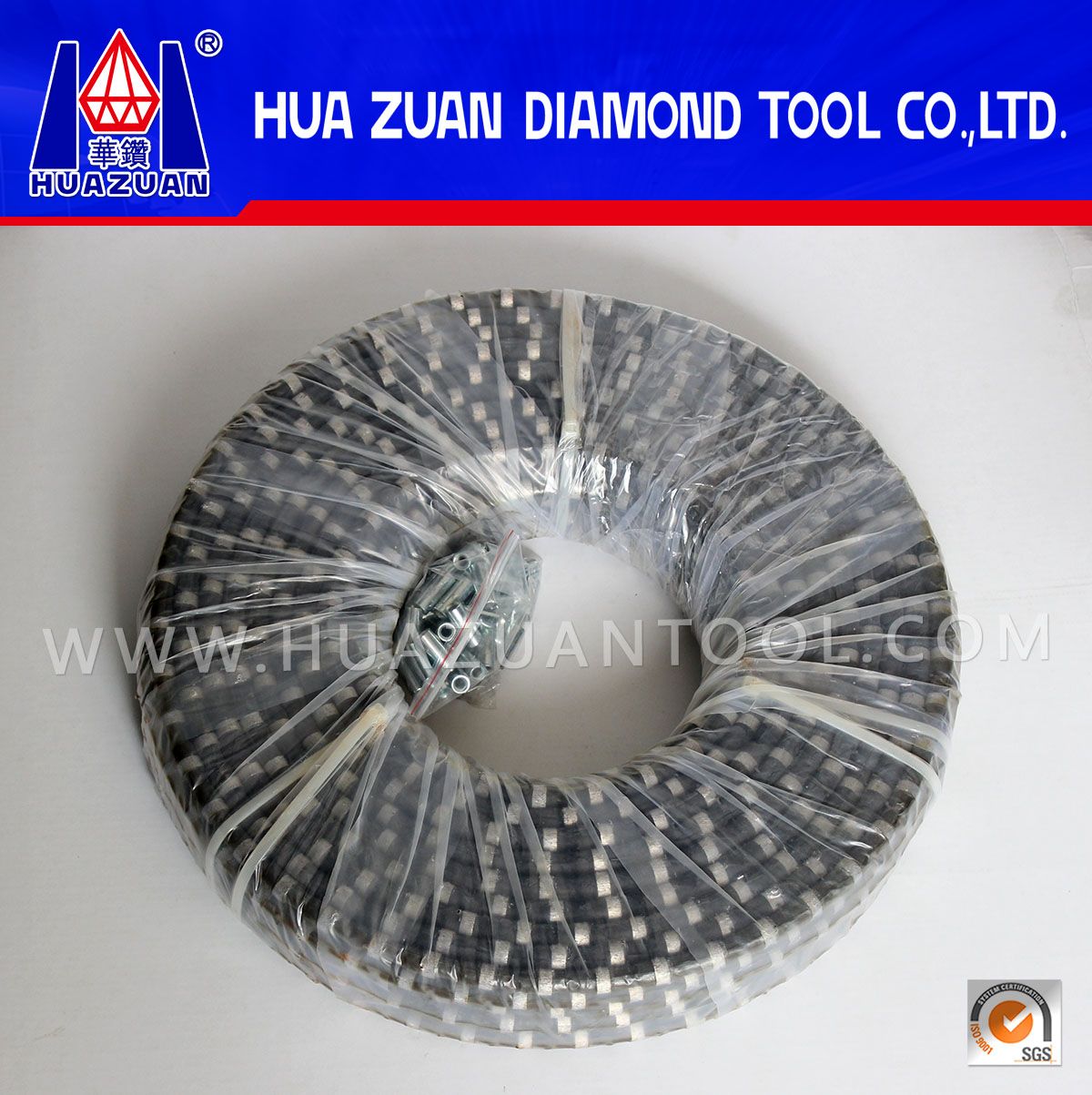

Diamond wire saw for concrete cutting
| Beads diameter | Beads/meter | Coating | Application | Wire speed(m/s) | Cutting speed(m²/h) | Life (m²/m) |
Φ10.5mm
Φ11mm
Φ11.5mm | 40 | Rubber +
Spring | Normally reinforced | 22-25 | 2-5 | 5-7 |
| High reinforced | 20-22 | 1.5-3 | 2-4 |
| Steel /metal structure | 18-20 | 0.5-2 | 1-3 |
*Other specifications are available upon request.
