| Prod Model: |
6.3.10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality Standard: |
SGS |
| Graininess: |
30/35, 35/40 |
| Thickness: |
2.6mm |
| Shape: |
Round |
| Kind: |
Handheld Saw |
| Manufacturing Arts: |
Welding |
| Usage: |
Stone Cutting |
| Saw Blade External Diameter: |
230mm |
| Customized: |
Customized |
Product Description

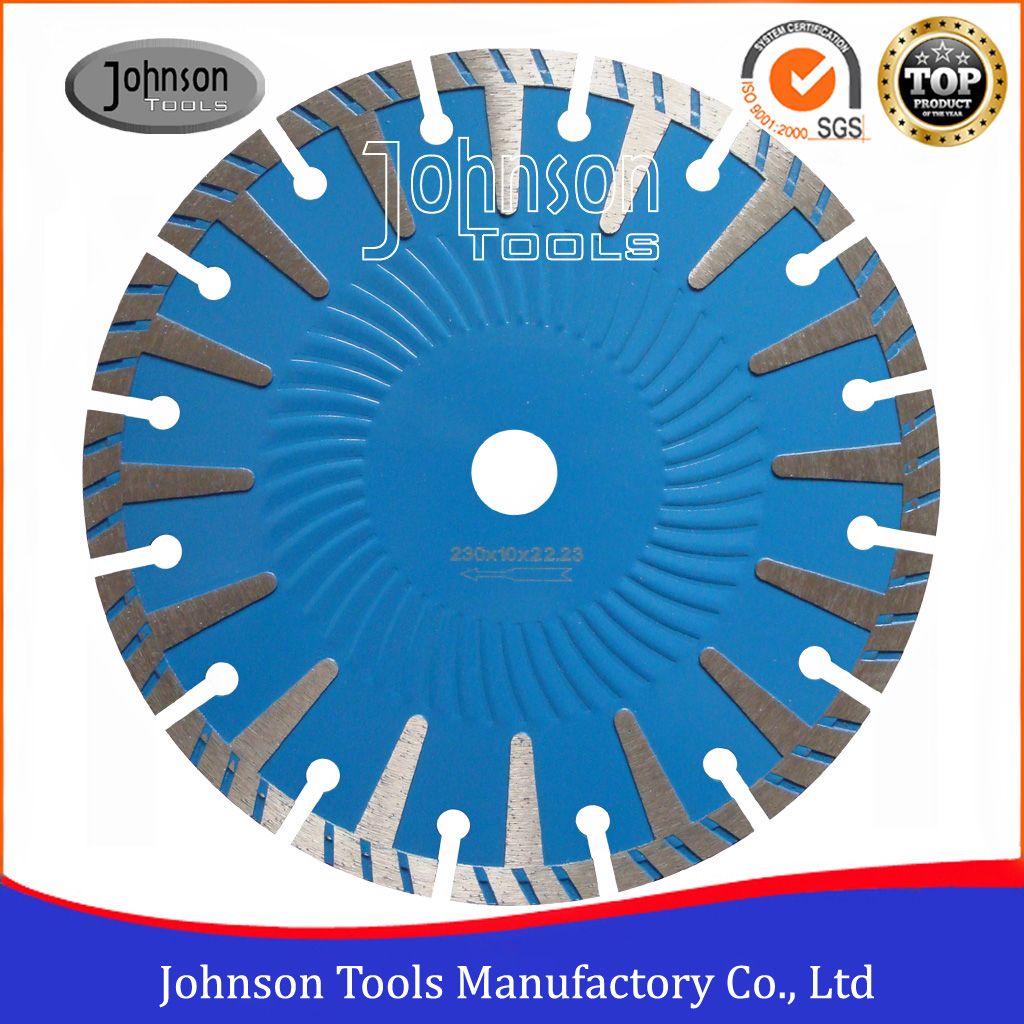

Diamond Saw Blade 230mm T Shape turbo wave Segmented Saw BladeWhy choose us:1. SGS, MPA certificate, Established in 2000 year, Rich producing experience.2. Well approved by our worldwide clients, export more than 70 countries.3. Success formula for concrete saw blade 4. Quick Delivery time.5. One-Day reply to your inquiry and question.1.Description of 230mm T Shape turbo wave Segmented Saw Blade
Wave turbo Saw Blade with protective teeth. Wave turbo saw blade, perfect blade for cutting granite, roof tiles, bricks, concrete and stones, etc. Wave parts on the steel discs make heat releasing and dust ejecting more effective. It helps the blades to cut the materials more faster. Outer diameter from 105mm to 230mm. Center hole of sintered wave turbo blade: 16mm, 20mm, 22.23mm, also can do with Flange M14 or 5/8"-11.2.Features of 230mm T Shape turbo wave Segmented Saw Blade1. Sharp, durable, long service life.
2. Designed to strengthen the impact resistance and weld strength carbide serrated.
3. Change the production process, high precision, smooth cutting surface
Advantages on wave turbo saw blade: - Outer diameter can be done from 105mm to 230mm
- Segment height can be done with 7mm or 10mm.
- Center hole can be done with 16mm, 20mm, 22.23mm, 25.4mm.
- Machine: Angle grinder, Table saw, Hand held saw.
- Super Fast Cut with Minimum Chipping, even on dry cut
- Use on Angle Grinder, Wet Stone Saw or Circular Saw
- Cuts Granite, Marble, Stone, concrete, etc.
- Use dry and wet cutting.
- Balance the blade and protect the blank.
3.Specification information of 230mm T Shape turbo wave Segmented Saw Blade | Item No. | Inch | Diameter | Height | hole | Teeth No. |
| TW-230 | 9" | 230 | 7/10 | 20/22.23 | 16 |
Other specifications we can offer
| Item No. | Inch | Diameter | Height | Inner Hole |
| TW-105 | 4" | 105 | 7/10 | 20/16 |
| TW -115 | 4.5" | 115 | 7/10 | 20/16 |
| TW -125 | 5" | 125 | 7/10 | 20/22.23 |
| TW -150 | 6" | 150 | 7/10 | 20/22.23 |
| TW -180 | 7" | 180 | 7/10 | 20/22.23 |
| TW -200 | 8" | 180 | 7/10 | 20/22.23 |
| TW -230 | 9" | 230 | 7/10 | 20/22.23 |

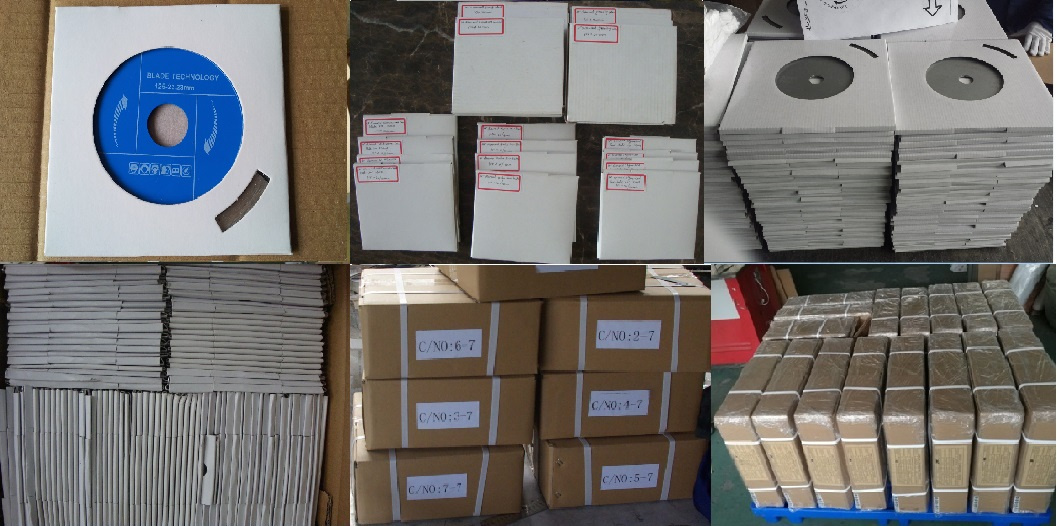

4.Packing and shipping of 230mm T Shape turbo wave Segmented Saw Blade
According to the size, 10-100pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.

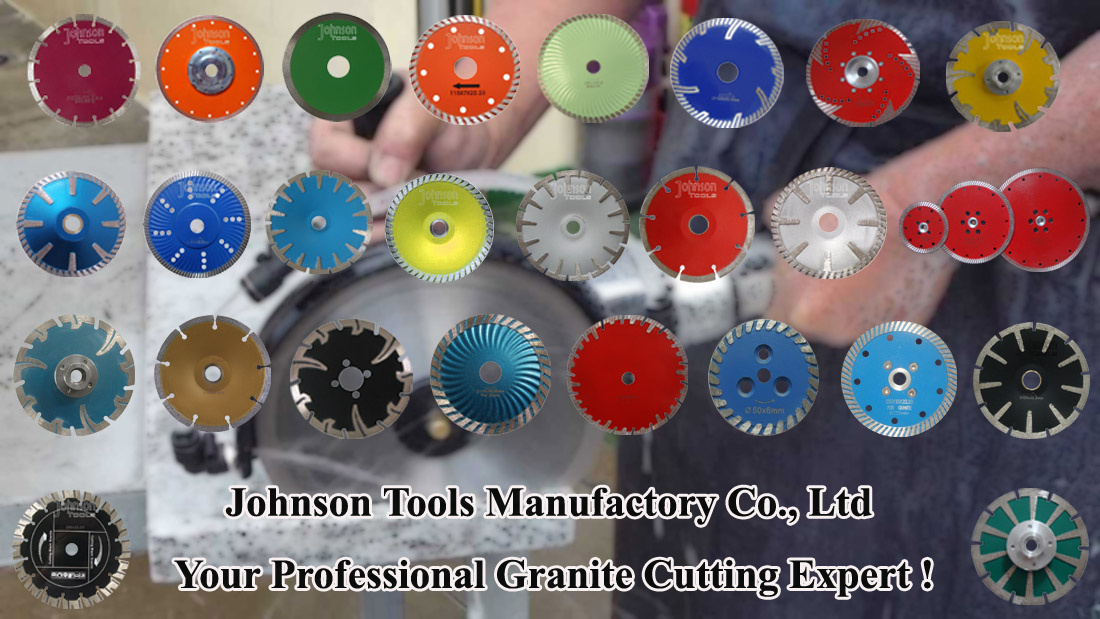

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.Delivery way: By air, by sea, by land, by courier, etc5. Payment term T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.6.Our Related Products
7.Certification

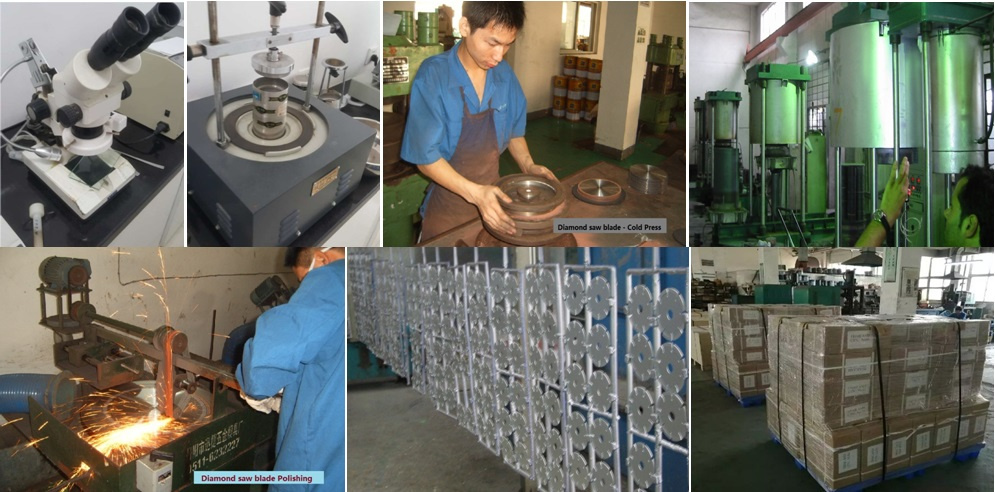

8.Our technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
9.FAQQ: How to place order to your company?1. Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.2. Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.3. Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.4. Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers. 5. After-Sale Service: Track the goods, learn the products' performance.6. Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.10. Company information

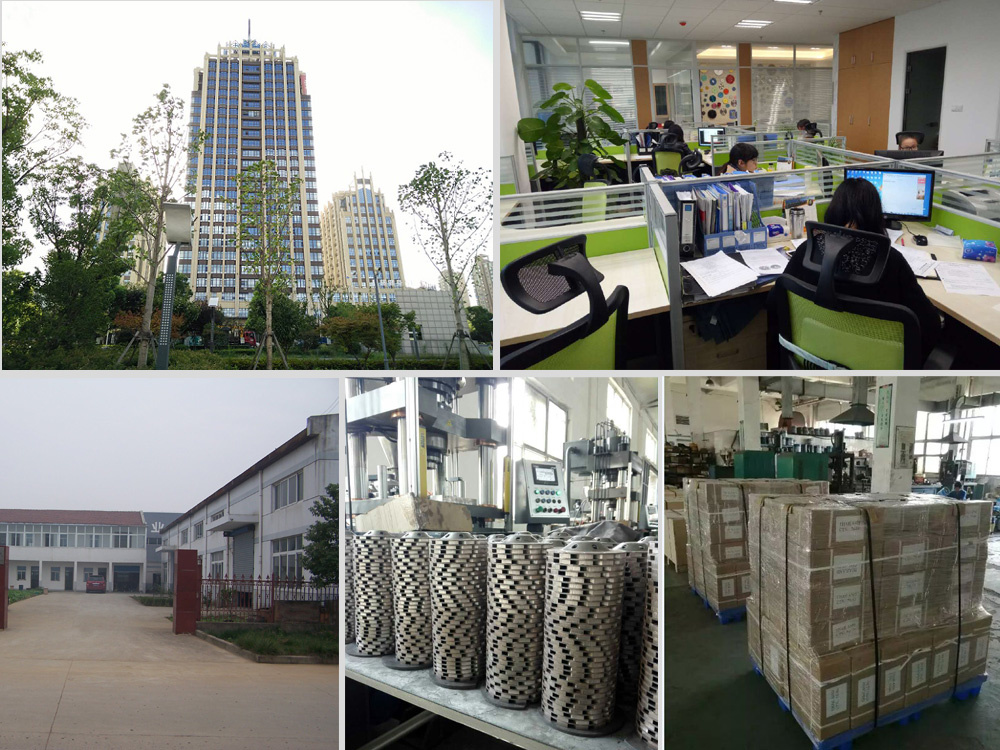

Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China's stone and construction industries. We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.Johnson Tools people sincerely looking forward to serving you in the near future!Let's work together to make the business better and better.
