| Prod Model: |
HZ-1100 |
| Segment Material: |
Diamond Powder, Cobalt, Metal |
| Working Condition: |
Wet/Dry Cut |
| Segment Type & Shape: |
Normal, Turbo; Sandwich, Groove, etc |
| Welding Method: |
High Frequency Welding/Laser Weld |
| Perfromance Comparison: |
Sharp Diamond Blade, Wearable Diamond Blade |
| Base & Matrix Type: |
Normal, Silent Saw Blade |
| Model Number: |
Hz-1093 |
| Cutting Direction: |
Vertical Cut, Horizontal Cut |
| Type: |
Power Tool Parts |
| Size: |
250mm-3500mm |
Product Description

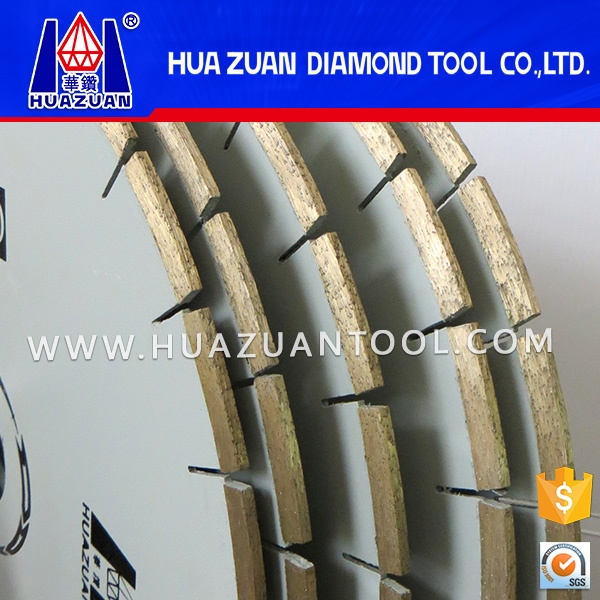

Diamond Saw Blade with Smooth Cutting Marble Segment
Product Description
| Product name | Diamond Saw Blade with Smooth Cutting Marble Segment |
| Brand | Huazuan or OEM |
| Types | Power Tool Parts |
| Compose | Segment + core bit matrix |
| Diameter | 250mm-3500mm |
| Length | 40mm, 24mm, other length is available upon request. |
| Machine | Cutting machine |
| Application | Suitable for marble,limestone,travertine etc. |
Quality Control |
1. Strict Raw material inspection
2. Professional formula
3. Production process control(PDCA+7S Principle)
4. Do some cutting testing to sure the using function
5. Products pass ISO9001 and SGS inspection
|
| MOQ | 3 PCS for each size |
| Payment term | TT,Western union,Paypal L/C, Money Gram,etc |
| Package | As customers' requirement. |
| Delivery | 7-10 days after receiving the payment. |
| Certification | ISO9001 and SGS Product quality control. |
| Edge cutting blade segment dimension |
| Outer Diameter | Dimension of Teeth | No.of Teeth |
| Inch | MM | Length | Thickness | Height | No.of Teeth |
| 10'' | 250 | 40 | 2.6/2.8 | 8/10/12 | 16/17 |
| 12'' | 300 | 40 | 2.8/3.0 | 8/10/12 | 21/22 |
| 14'' | 350 | 40 | 3.0/3.2 | 8/10/12 | 24/25 |
| 16'' | 400 | 40 | 3.4/3.6 | 8/10/12 | 28/29 |
| 18'' | 450 | 40 | 3.8/4.2 | 8/10/12 | 32 |
| 20'' | 500 | 40 | 4.0/4.2 | 8/10/12 | 32/36 |
| 22'' | 550 | 40 | 4.6/4.8 | 8/10/12 | 40 |
| 24'' | 600 | 40 | 4.6/4.8 | 8/10/12 | 42 |
| 26'' | 650 | 40 | 5.0/5.2 | 8/10/12 | 46 |
| 28'' | 700 | 40 | 5.0/5.2 | 8/10/12 | 42/50 |
| 30'' | 750 | 40 | 5.2/5.6 | 8/10/12 | 54 |
| 32'' | 800 | 40 | 5.5/6.0 | 8/10/12 | 46/57 |
| Single/Multi blades segment dimension |
| 36'' | 900 | 24 | 6.0/6.8 | 12/13/15 | 64 |
| 40'' | 1000 | 24 | 6.7/7.0 | 12/13/15 | 70 |
| 48'' | 1200 | 24 | 6.5/7.5 | 12/13/15 | 80 |
| 52'' | 1300 | 24 | 7.0/7.6 | 12/13/15 | 88 |
| 56'' | 1400 | 24 | 8.2/8.8 | 12/13/15 | 92 |
| 64'' | 1600 | 24 | 8.4/9.0 | 12/13/15/20 | 108 |
| 72'' | 1800 | 24 | 9.5/10.5 | 12/13/15/20 | 120 |
| 80'' | 2000 | 24 | 10.5/11 | 12/13/15/20 | 128 |
| 88'' | 2200 | 24 | 10.5/11 | 12/13/15/20 | 132 |
| 100'' | 2500 | 24 | 11/12 | 12/13/15/20 | 140 |
| 120'' | 3000 | 24 | 11.5/12.5 | 12/13/15/20 | 160 |
| 140'' | 3500 | 24 | 12/12.5 | 12/13/15/20 | 180 |
| Other specification are available upon request |
Features:
Segmented blade, smooth cutting, long lifespan. Especially for the cutting of marble and micro-crystal glass.
Our advantage:
1.High sharpness
2.Rich experienceMore
3.Stable quality
4.Price-performance ratio
