Prod Model: |
10.1.12 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Be Brazed On: |
600mm Saw Blade |
Segment Size: |
40X4.2/4.8/5 X 10/12/15mm |
Number Per Set: |
36/42PCS |
Cutting Material: |
Stone and Building Materials |
Delivery Time: |
Based on Actual Order, Generally 15days |
Kind: |
Diamond Segment |
Saw Blade External Diameter: |
24 Inches |
Product Description

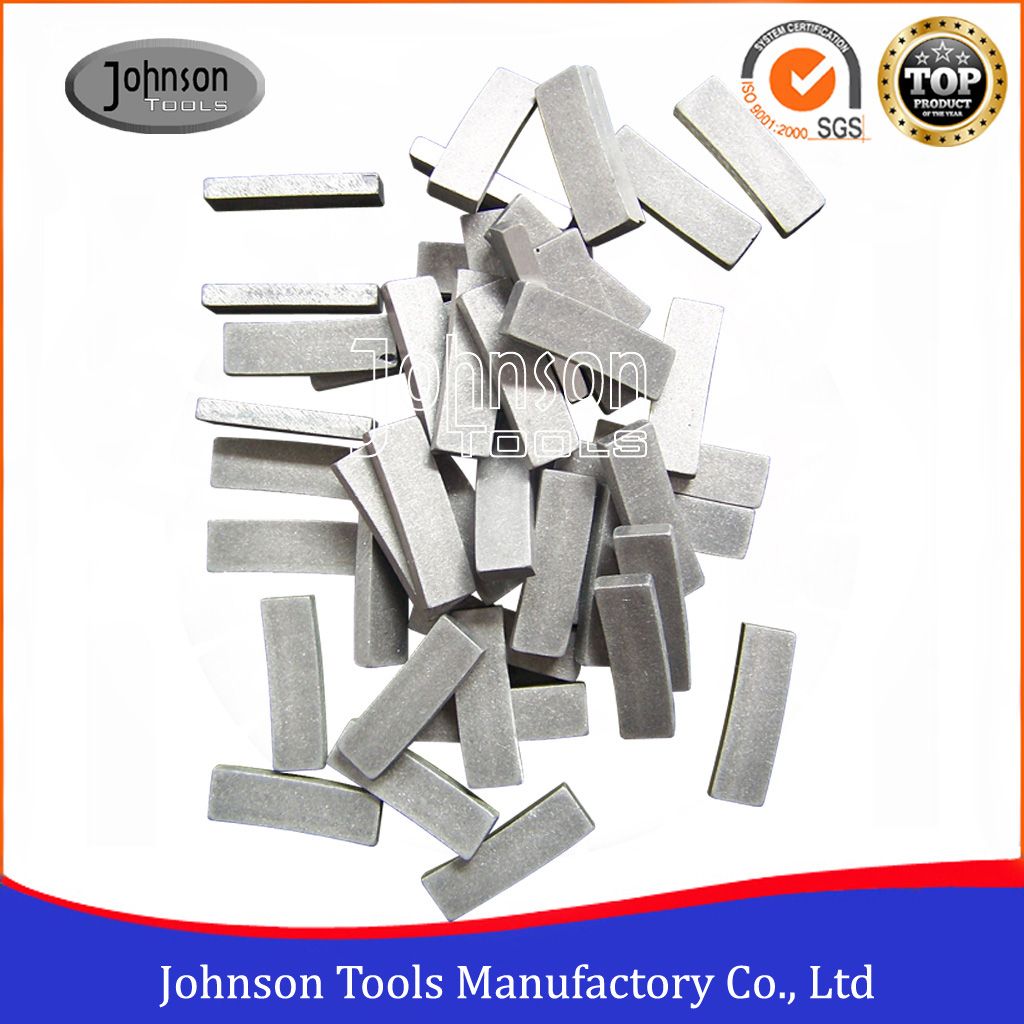

Diamond Segment for 600mm Circular Saw Blade
Why choose us
Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time
1.Description of Diamond Segment for 600mm Circular Saw Blade Diamond segments are parts of diamond tools.
1. Be brazed on: 600mm diameter diamond saw blades, single saw blades and saw blanks, which are especially for stone and construction industries
2. Application: different formula for all kinds of stone (such as marble, granite, limestone, basalt stone, sand stone, grit stone, etc.) and construction industry (such as concrete, reinforced concrete, cured concrete, green concrete, wet concrete, asphalt, etc).
2.Features of Diamond Segment for 600mm Circular Saw Blade
1. High percent of bond materials
2. High grade of diamonds
3. Various experience with hundreds of formula against different stones
4. Competitive price and stable quality
5. Strict quality control before send out
6. Our products last long life and give a sharp cutWe can satisfy different companies, high-, middle- and low-end markets.Shapes and performance also can be customized based on customers' requirements7. Advantage: Good cutting performance and long life.3.Specification information of Diamond Segment for 600mm Circular Saw Blade1. Types available: Normal type, Sandwich type, Ladder type, Turbo, etc.2. Be well exported to UK, Yemen, PK, Iran, India, Egypt, Brazil, Mexico, etc.
3. Diameter: 600mm
4. Specification: 40x4.2/4.8/5x10/12/15mm
6. Delivery time: 15days
7. Advantage: Good cutting performance and long life.
We can satisfy different companies, high-, middle- and low-end markets.
Shapes and performance also can be customized based on customers' requirements
Segment type | Segment size | Segment teeth |
OD600mm diamond segments | 40x4.2/4.8/5x10/12/15mm | 36/42 |
Other size we could do:Item | Be brazed on | Seg.L /mm | Seg.W /mm | Seg.H /mm |
SCB-350 | OD350mm diamond saw blade | 40 | 3.2 | 10/12 |
SCB-400 | OD400mm diamond saw blade | 40 | 3.4 | 10/12 |
SCB-450 | OD450mm diamond saw blade | 40 | 3.6 | 10/12 |
SCB-500 | OD500mm diamond saw blade | 40 | 3.8 | 10/12 |
SCB-600 | OD600mm diamond saw blade | 40 | 4.2 | 10/12 |
SCB-700 | OD700mm diamond saw blade | 40 | 5 | 10/12 |
SCB-800 | OD800mm diamond saw blade | 40 | 6 | 10/12 |
SCB-900 | OD900mm diamond saw blade | 24 | 6.5 | 10/12/13/14/15 |
SCB-1000 | OD1000mm diamond saw blade | 24 | 7 | 10/12/13/14/15 |
SCB-1200 | OD1200mm diamond saw blade | 24 | 7 | 10/12/13/14/15 |
SCB-1300 | OD1300mm diamond saw blade | 24 | 7 | 10/12/13/14/15 |
SCB-1600 | OD1600mm diamond saw blade | 24 | 9 | 10/12/13/14/15 |
SCB-1800 | OD1800mm diamond saw blade | 24 | 9 | 10/12/13/14/15 |
SCB-2000 | OD2000mm diamond saw blade | 24 | 10 | 10/12/13/14/15 |
SCB-2200 | OD2200mm diamond saw blade | 24 | 10 | 10/12/13/14/15 |
SCB-2300 | OD2300mm diamond saw blade | 24 | 10.5 | 10/12/13/14/15 |
SCB-2500 | OD2500mm diamond saw blade | 24 | 12 | 10/12/13/14/15 |
SCB-3000 | OD3000mm diamond saw blade | 24 | 13 | 10/12/13/14/15 |
SCB-3500 | OD3500mm diamond saw blade | 24 | 13 | 10/12/13/14/15 |

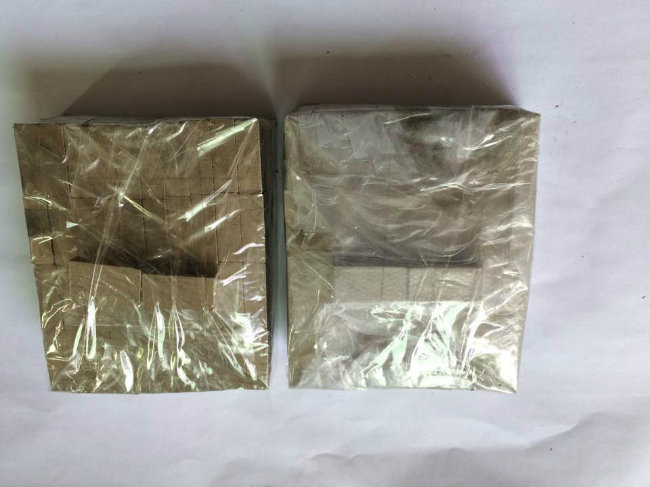

4.Packing and shipping of Diamond Segment for 600mm Circular Saw Blade
Each diamond segments are packed in plastic bags or white boxes, then according to the gross weight, usually around 15-20kg per carton.
Shipping date: If we have mould in our stock, normally shipment within 5days. If not, usually around 7-10days
Delivery way: By sea, by air, by courier, by track, etc.
5.Payment term
T/T, Irrevocable L/C at sight, Paypal, Western Union, Credit Card, etc

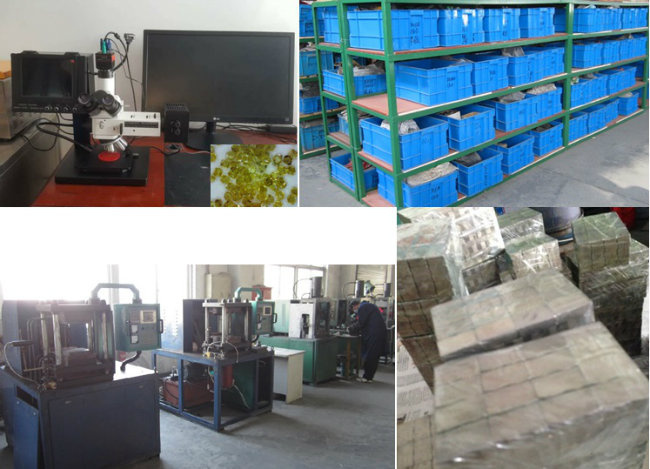

6.Our Technology
We are processing advanced production equipment,modern checking system,strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond tools is our aim.

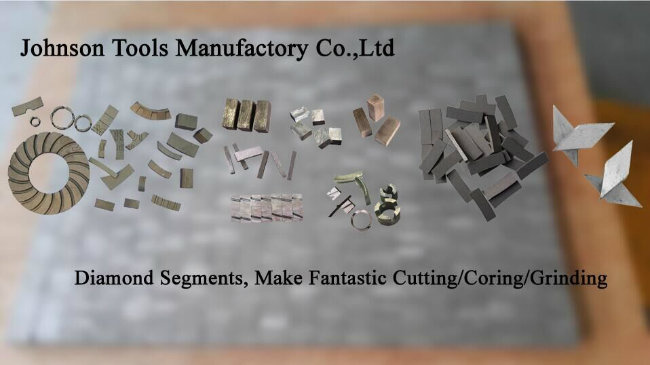

7.Our Related Products:
8. FAQ: Q: How to place order to your company?
1. Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2. Proforma Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3. Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4. Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5. After-Sale Service: Track the goods, learn the products' performance.
6. Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
9. Our Certification:
10. Our exhibition:
11. Sales Team:
