| Price: | US $ 0.80-1/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 400/Piece |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: | HZ-GDS1200 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Items: | Diamond Segment for Granite |
| Application: | Cutting Granite |
| Welding: | High-Frequency |
| Material: | Diamond and Metal Bond |
| Kind: | Stone Sawing Machine |
| Manufacturing Arts: | Sinter |
| Usage: | Fire-Retardant, Porcelain |
| Graininess: | 30/50# 70/80# |
| Thickness: | 6.5/7.5mm |
| Shape: | Normal and OEM |
| Brand: | Huazuan |
| Saw Blade External Diameter: | 1200mm Blade Diamond Segment |
| Specification: | 48 Inch |

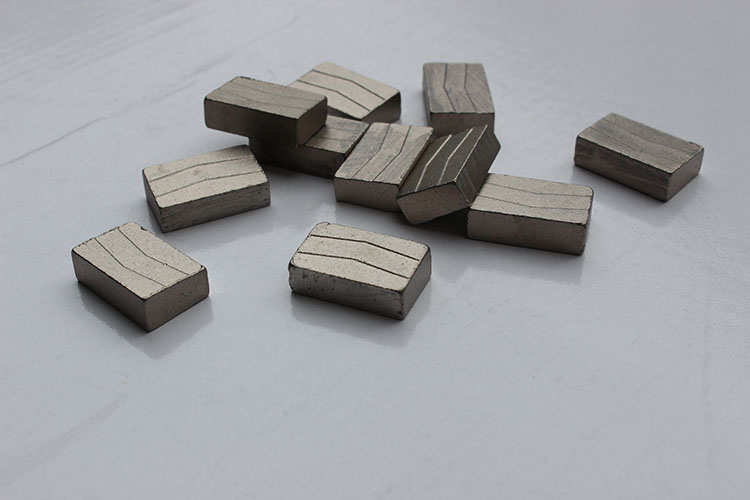

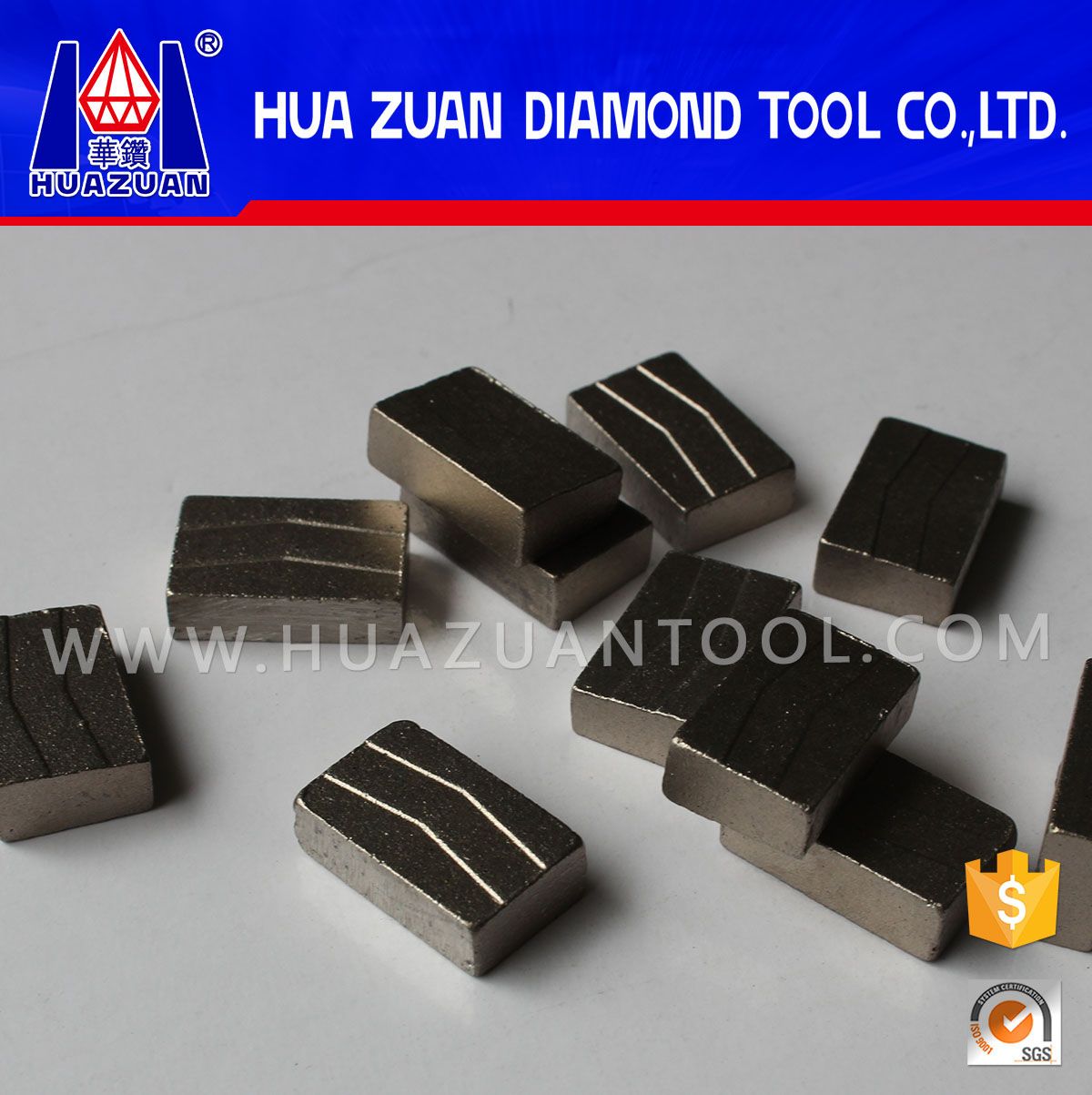

| Product Name | Diamond segment for granite 1200mm |
| Size | 24*6.5/7.5*15mm ( Specialized in making any sizes of diamond segment, we can make many different kinds of quality and sizes to fit your market and your stone. ) |
| Diameter | 1200mm blades diamond segment |
| Application | Diamond segment Used for cutting granite, ( also other segments can made for marble, sandstone, limestone, lava, concrete, mine ) |
| Feature | 1. Fast cutting & long life & Stable performance, High grade of diamonds 2. Different bonds are for different applications & precise segment size 3. Working safe, quiet, and precise, reducing cutting & working time 4. Great adaptability & No chipping diamond segment |
| Package | Color box,double blister card,skin packing,white box etc |
| Quality | GSG&Gold Supplier |
| Factory=Quality Control=Competitive Price=Owntechnology=OEM |
| Middle blade diamond segment dimension | |||||
| Outer Diameter | Dimension of Teeth | No.of teeth | |||
| Inch | mm | length | Thickness | Height | |
| 10" | 250 | 40 | 3 | 10 / 15 | 17 |
| 12" | 300 | 40 | 3 | 10 / 15 | 21 |
| 14" | 350 | 40 | 3.2 or 3.4 | 10 / 15 | 24 |
| 16" | 400 | 40 | 3.4 or 3.6 | 10 / 15 | 28 |
| 18" | 450 | 40 | 4 | 10 / 15 | 32 |
| 20" | 500 | 40 | 4.2 | 10 / 15 | 36 |
| 24" | 600 | 40 | 4.6 | 10 / 15 | 42 |
| 28" | 700 | 40 | 5.6 | 10 / 15 | 42 |
| 32" | 800 | 40 | 5.6 | 10 / 15 | 46 |
| Single/Multi blades diamond segment dimension | |||||
| 36" | 900 | 24 | 6.0/6.8 | 12/13/15 | 64 |
| 40" | 1000 | 24 | 6.4/7.2 | 12/13/15 | 70 |
| 48" | 1200 | 24 | 6.5/7.5 | 12/13/15 | 80 |
| 56" | 1400 | 24 | 7.5/8.5 | 12/13/15 | 92 |
| 64" | 1600 | 24 | 8.4/9.2 | 12/13/15/20 | 108 |
| 72" | 1800 | 24 | 9.2/10 | 12/13/15/20 | 120 |
| 80" | 2000 | 24 | 9.5/10.5 | 12/13/15/20 | 128 |
| 88" | 2200 | 24 | 10.5/11.5 | 12/13/15/20 | 132 |
| 100" | 2500 | 24 | 11.5/12.5 | 12/13/15/20 | 140 |
| 120" | 3000 | 24 | 12.5/13.5 | 12/13/15/20 | 160 |
| 140" | 3500 | 24 | 12.5/13.5 | 12/13/15/20 | 180 |
| Other specifications of diamond segment are available upon request. | |||||
Q1:Are you a factory or trading company?
A:We are factory.
Q2:Where is your factory located?How can I visit you?
A:Our factory located in Quanzhou City,Fujian Province,China.You can fly to Xiamen International Air Port or Jinjiang Air Port,and we will you pick you up.Welcome you to visit our factory.
Q3. How is your quality?
A. We have a very seriously control system(PDCA principle and 7S) and . We guarantee the high performance of our products.
Q4.What we should do if your products can not run well?
A:Give us detailed report.Analyze the reason.
Try to find a way to solve the problem.If it's our problem and not possible to solve then will give replacement.
Q5. Do you have different quality for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different typology respectively.
