| Prod Model: |
tipped saw blade |
| Quality: |
High |
| Used: |
Granite,Marble,Sandstone,Limestone,etc. |
| Use: |
Wet Cutting |
| Diameter: |
105-3500mm |
| Core Size: |
According to Customer Requirements |
| Product Name: |

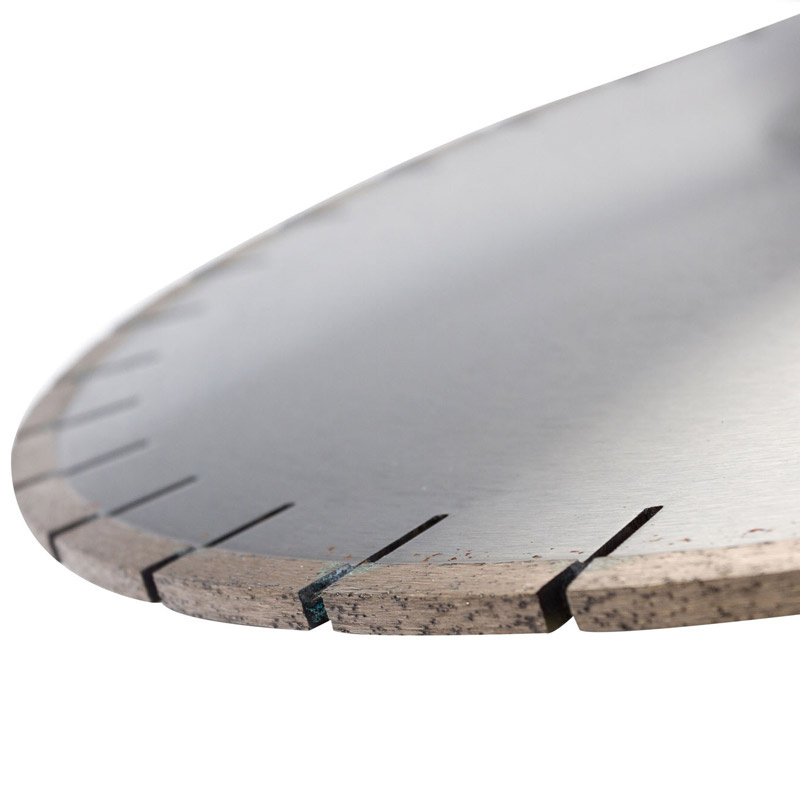

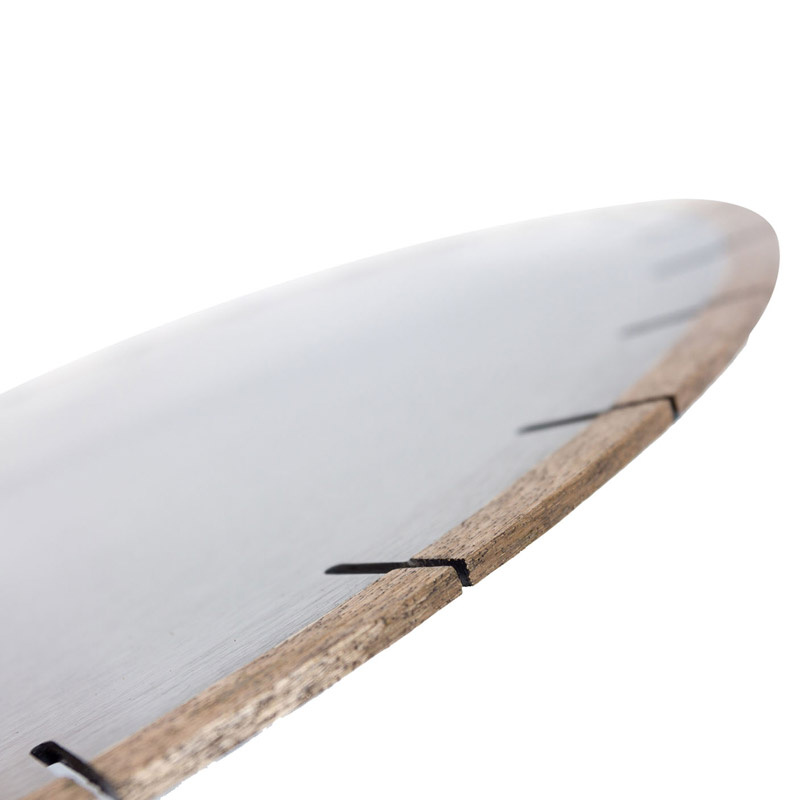

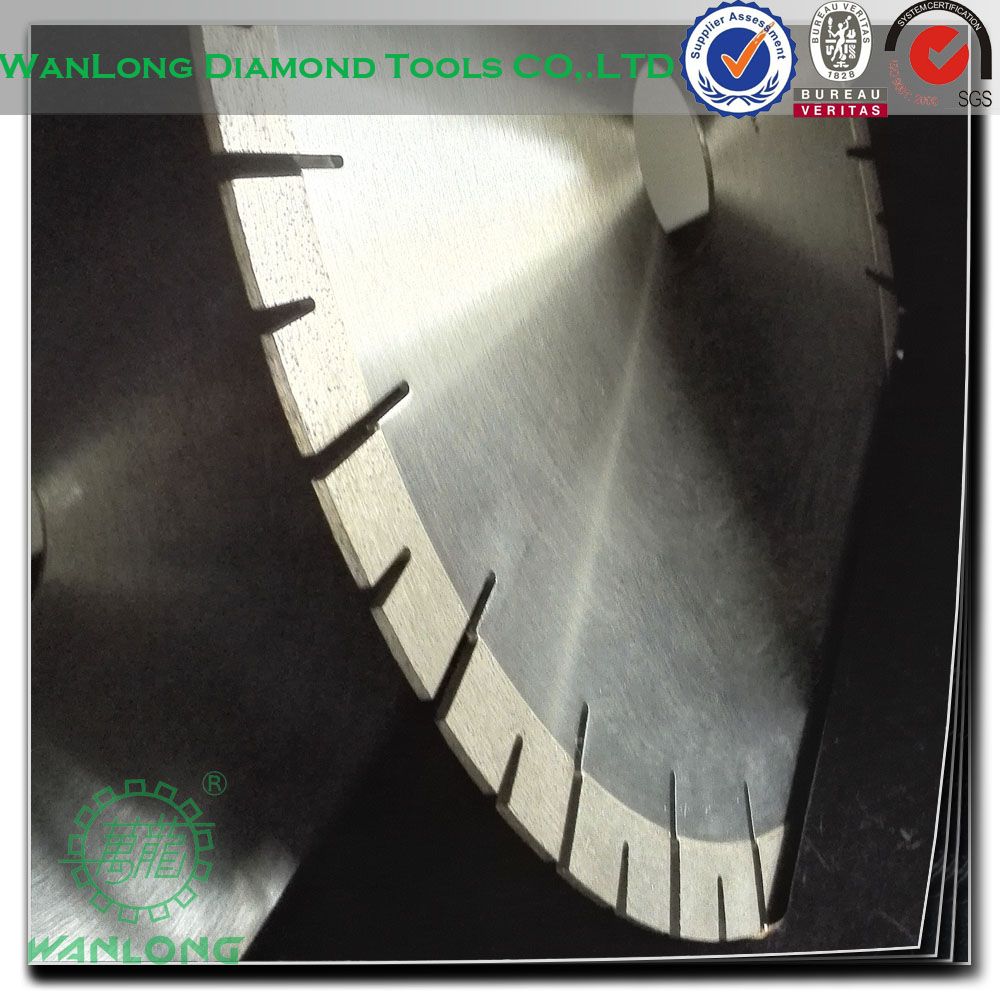

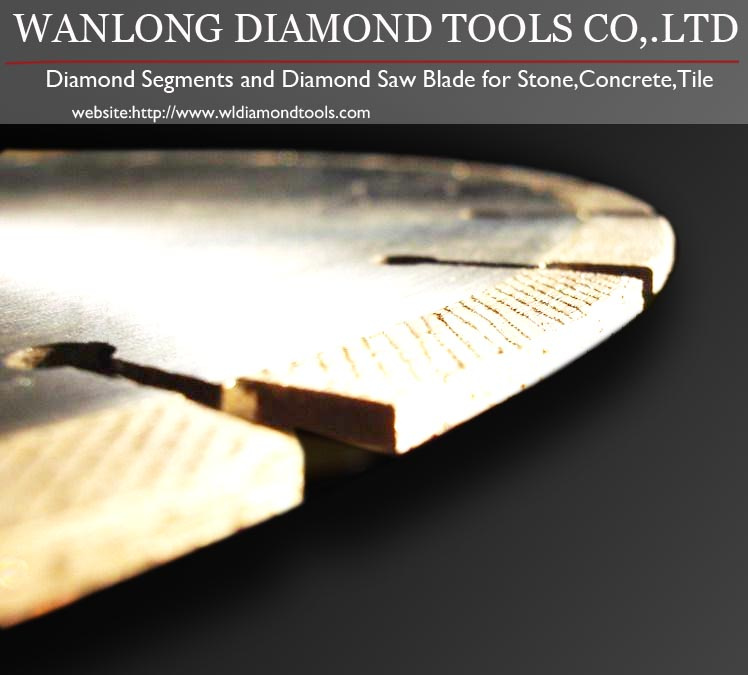

Segmented Saw Blade |
| Authentication: |
ISO9001-2008,TUV,SGS |
| Advantage: |
Fast Cutting Speed and Long Lifespan |
| Technology: |
Sinter |
| Machine: |
Block Cutting Machine,Bridge Cutting Machine ,etc, |
Product Description
Block Cutting Segment For MarblePRODUCT FEATURES:
1 The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long life span 2 Good cutting result:smooth cutting,flat surface and even size 3 stable cutting,narrow cutting gap,stone waste reduction
| Diameter(mm) | Steel core(mm) | Head size(mm) | Segment Number | Shape | Application |
|---|
| 900 | 5.0 | 24×7.5×10(13) | 64 | Z(straight) | marble |
| 1000 | 5.0 | 24×7.5×10(13) | 70 | Z(straight) | marble |
| 1200 | 5.5 | 24×8.0×10(13) | 80 | Z(straight) | marble |
| 1400 | 6.0 | 24×8.5×10(13) | 92 | Z(straight) | marble |
| 1600 | 7.0 | 24×9.5×10(13) | 108 | Z(straight) | marble |
| 1800 | 7.5 | 24×10×10(13) | 120 | Z(straight) | marble |
| 2000 | 8.0 | 24×11×10(13) | 128 | Z(straight) | marble |
| 2200 | 8.0 | 24×11×10(13) | 132 | Z(straight) | marble |
| 2500 | 9.0 | 24×12.5×10(13) | 140 | Z(straight) | marble |
| 2700 | 9.0 | 24×12.5×10(13) | 140 | Z(straight) | marble |
| 3000 | 9.3 | 24×13×10(13) | 160 | Z(straight) | marble |
| Diameter(mm) | Steel core(mm) | Head size(mm) | No. | Shape | Application |
|---|
| 300 | 2.2 | 43/40×3.2×10 | 21 | RF | Marble |
| 350 | 2.2 | 43/40×3.2×10 | 24 | RF | Marble |
| 400 | 2.6 | 43/40×3.6×10 | 29 | RF | Marble |
| 450 | 3.0 | 42/40×4.0×10 | 32 | RF | Marble |
Other specifications are available upan request.
Silent and non-silent blades are available for choice.
Block Cutting Segment And Blade For GranitePRODUCT FEATURES:
1 The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan 2 Good cutting result:smooth cutting,flat surface and even size 3 Stable cutting,narrow cutting gap,stone waste reduction 4 M-Shape segment is easy for diamond opening
| Diameter(mm) | Steel core(mm) | Head size(mm) | No. | Shape | Application |
|---|
| 900 | 5.0 | 24×7.0/6.2×13(15,20) | 64 | Z3T/Z3T-M (conical) | Granite |
| 1000 | 5.0 | 24×7.0/6.2×13(15,20) | 70 | Z3T/Z3T-M (conical) | Granite |
| 1200 | 5.5 | 24×7.4/6.6×13(15,20) | 80 | Z3TZ3T-M (conical) | Granite |
| 1400 | 6.0 | 24×8.0/7.2×13(15,20) | 92 | Z3T/Z3T-M (conical) | Granite |
| 1400 | 6.5 | 24×8.4/7.6×13(15,20) | 92 | Z3T/Z3T-M (conical) | Granite |
| 1600 | 7.2 | 24×9.2/8.4×13(15,20) | 108 | Z3T/Z3T-M (conical) | Granite |
| 1800 | 7.5 | 24×10/9.2×13(15,20) | 120 | Z3T/Z3T-M (conical) | Granite |
| 2000 | 8.0 | 24×11/10×15(20) | 128 | Z3T/Z3T-M (conical) | Granite |
| 2200 | 9.0 | 24×11/10×15(20) | 132 | Z3T/Z3T-M (conical) | Granite |
| 2500 | 9.0 | 24×12/11×20(30) | 140 | Z3T/Z3T-M (conical) | Granite |
| 2700 | 9.0 | 24×12/11×20(30) | 140 | Z3T/Z3T-M (conical) | Granite |
| 3000 | 9.3 | 24×13/12×20(30) | 160 | Z3T/Z3T-M (conical) | Granite |
| 3500 | 9.5 | 24×13.5/12.5×20(30) | 180 | Z3T/Z3T-M (conical) | Granite |
| Diameter(mm) | Steel core(mm) | Head size(mm) | No. | Shape | Application |
|---|
| 400 | 2.6 | 40×3.8×10 | 28 | GENERAL SPLITTING | Marble |
| 450 | 3.0 | 40×4.2×10 | 32 | GENERAL SPLITTING | Marble |
| 500 | 3.0 | 40×4.2×10 | 36 | GENERAL SPLITTING | Marble |
| 550 | 3.6 | 40×5.0×10 | 40 | GENERAL SPLITTING | Marble |
| 600 | 3.6 | 40×5.0×10 | 42 | GENERAL SPLITTING | Marble |
| 650 | 4.0 | 40×5.5×10 | 46 | GENERAL SPLITTING | Marble |
| 700 | 4.0 | 40×5.5×10 | 50 | GENERAL SPLITTING | Marble |
| 750 | 4.0 | 40×5.5×10 | 54 | GENERAL SPLITTING | Marble |
| 800 | 4.5 | 40×6.0×10 | 57 | GENERAL SPLITTING | Marble |
| 850 | 4.5 | 40×6.0×10 | 58 | GENERAL SPLITTING | Marble |
Other specifications are available upan request.
Silent and non-silent blades are available for choice.
