Product Description

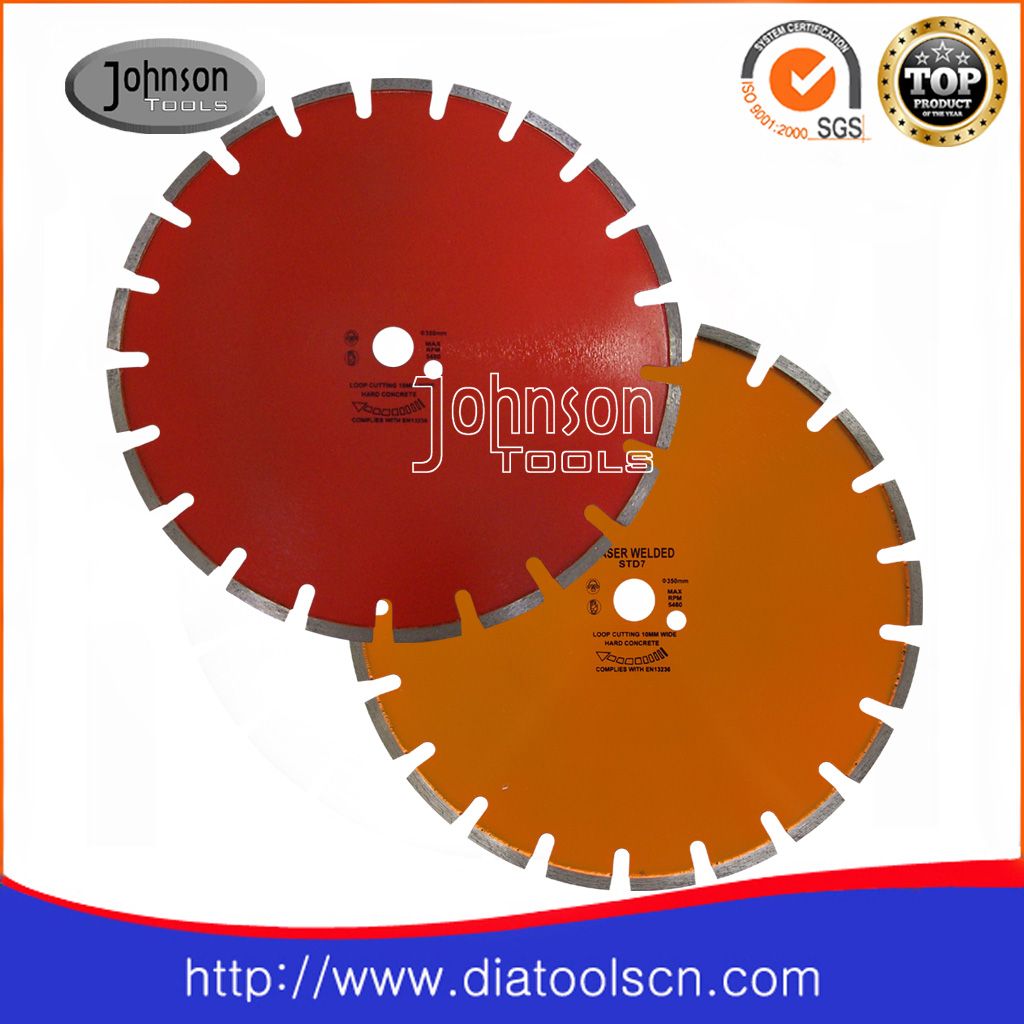

Diamond Loop Saw Blade for Concrete and Asphalt Cutting
Why choose us:
1. SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2. Well approved by our worldwide clients, export more than 70 countries.
3. Success formula for concrete saw blade
4. Quick Delivery time
5. One-Day reply to your inquiry and question.
1. Description of Diamond Loop Saw Blade for Concrete and Asphalt Cutting
Loop diamond concrete saw blade is specially for cutting and grooving on concrete and asphalt for burying Traffic safety Detector . Providing straight cutting and reducing vibrations for trouble free operation.
Usually its segments, steel cores thicker than regular saw blade for improved tracking. All could do laser welding, if thicker than 14mm, only could do silver brazing.At present, they're well exported to European, Africa and Australia market. Have a good feedback.
We can offer our clients good after-sale service and professional technical assistance
2. Features of Diamond Loop Saw Blade for Concrete and Asphalt Cutting
1. Used for random grooving saws.
2. Providing straight cutting and reducing vibrations for trouble free operation.
3.laser welded or silver brazed, accoridng to the segment and steel disc thickness
4. Thicker than normal steel cores for improved tracking.
5. Cutting expansion joints in fresh concrete or for loop-line traffic light detector systems.
6. Dry or wet cutting.
7. Key slot loop cutting saw blade
3. Specification Information of Diamond Loop Saw Blade for Concrete and Asphalt Cutting
1. Diameter: 350-450mm
2. Segment length: 40mm
3. Segment Width:6-14mm or as your request.
4. Segment height:10mm, 12mm, 15mm.
5. Inner hole: 22.23mm, 25.4mm, 50mm or as your request.
6. Key slot loop cutting saw blade
Size of diamond loop saw blade for concrete and asphalt
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth width
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 12" | 300 | 40 | 6/8/10/12/14 | 10/12/15 | 20 |
| 14" | 350 | 40 | 6/8/10/12/14 | 10/12/15 | 24 |
| 16" | 400 | 40 | 6/8/10/12/14 | 10/12/15 | 28 |
| 18" | 450 | 40 | 6/8/10/12/14 | 10/12/15 | 32 |
4. Packing and Shipping
Packing: Each saw blade is packed in white box, then according to the size, 5pcs put in an export standard carton.
Shipping: Usually by courier, air and sea, we could recommend the suitable way for actually quantity and gross weight.
5.Payment terms
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Our Technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7. FAQ
Q: How to place order to your company?
1) Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2) Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3) Production Process: Arrange production, based on the contract and PI description and mutual
communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4) Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5) After-Sale Service: Track the goods, learn the products' performance.
6) Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
Many other related tools, welcome to contact us now.
