| Prod Model: |
1.2.0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
105-650mm |
| Shape: |
Round |
| Manufacturing Arts: |
Welding |
| Customized: |
Customized |
| Graininess: |
30/35#, 35/40# |
| Thickness: |
2.2-4.2mm |
| Kind: |

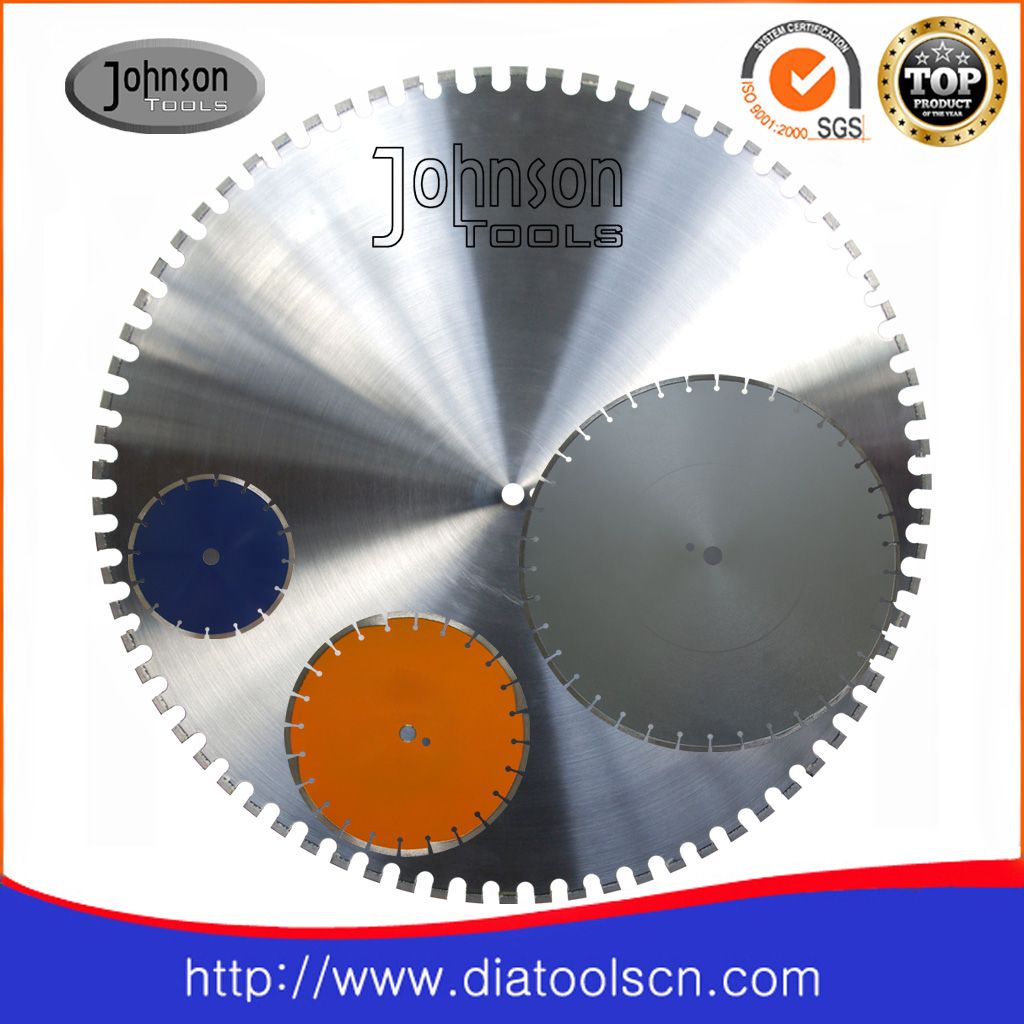

Diamond Laser Saw Blade |
| Usage: |
Cutting |
| Brand: |
Johnson Tools |
| Saw Blade External Diameter: |
105-650mm |
Product Description
Features:
A...Applied to cut variety materials.
B. 100% laser welding strength of segment tested one by one via torque wrench.
C. Superior cutting efficiency at a very competitive cost.
D. Laser welding technology ensures safe and long cutting.
E. Segmented dry cutting.
F...Good balance assures safety and excellent cutting effect.
G. Different quality grades for selection.
H. Any specification as your request.
Company instruction:
1) We're direct manufacturer and 100% export to worldwide (Thailand, India, Malaysia, Jordan, South Africa, Kenya, Morocco, Australia, UK, Spain, Brazil, etc)
2) We have around fourteen years producing experience.
3) Our main product: Laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products etc.
4) Above 95% customers will be place a formal order after testing the samples.
| Product Number | Diameter Inch | Segment number | Segment height MM | Segment thickness MM | Slot Type |
| LGP105 | 4" | 8 | 7/8/10 | 2.2 | Key / U |
| LGP115 | 4.5 " | 9 | 7/8/10 | 2.2 | Key / U |
| LGP125 | 5" | 10 | 7/8/10 | 2.2 | Key / U |
| LGP150 | 6" | 11 | 7/8/10 | 2.2 | Key / U |
| LGP180 | 7" | 12 | 7/8/10 | 2.4 | Key / U |
| LGP200 | 8" | 13 | 7/8/10 | 2.4 | Key / U |
| LGP230 | 9" | 16 | 7/8/10 | 2.6 | Key / U |
| LGP250 | 10" | 18 | 7/8/10 | 2.6 | Key / U |
| LGP300 | 12" | 20/21 | 8/10/12 | 3 | Key / U |
| LGP350 | 14" | 24 | 8/10/12 | 3.2 | Key / U |
| LGP400 | 16" | 28 | 8/10/12 | 3.4 | Key / U |
| LGP450 | 18" | 32 | 8/10/12 | 3.6 | Key / U |
| LGP500 | 20" | 36 | 8/10/12 | 3.8 | Key / U |
| LGP600 | 24" | 42 | 8/10/12 | 4.2 | Key / U |
