Diamond Wire Saw for Squaring Special Shapes for Marble Granite

Name: Diamond Wire Saw for Squaring Special Shapes for Marble Granite
Brand: tool-buy.com
SKU: 834311005
Availability: InStock
Rating: 4.4 (54 reviews)

Price:	US $ 32000-38000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Fujian Xianda Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	CNC-3000
Name:	CNC Diamond Wire Saw Stone Cutting Machine
Function:	Special Shapes Cutting
Cutting Material:	Granite and Marble
Type:	CNC Cutting Machine
Usage:	Marble
Application:	Machinery & Hardware
Source Voltage:	380V
Automation:	Automatic

Product Description

Product Description

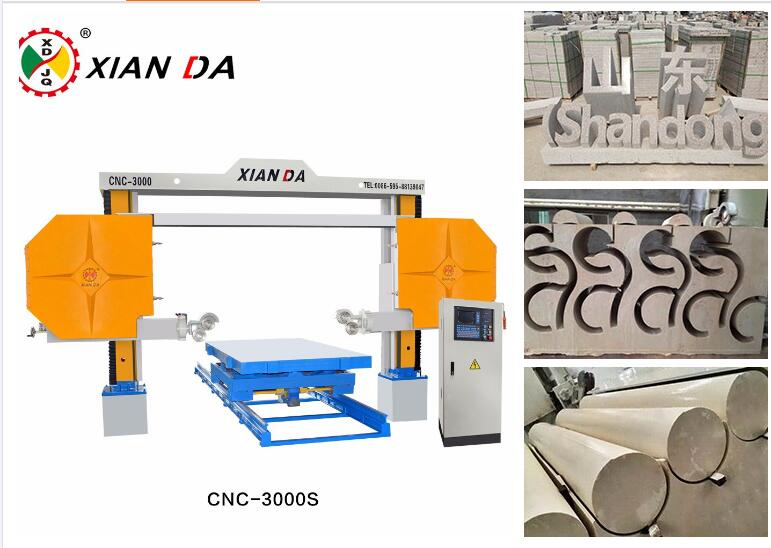

XIANDA DIAMOND WIRE SAW PROFILING FOR GRANITE MARBLE STONE adopts CNC control, four-spindle linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other shapes for the stone. This machine is good quality with high processing precision.

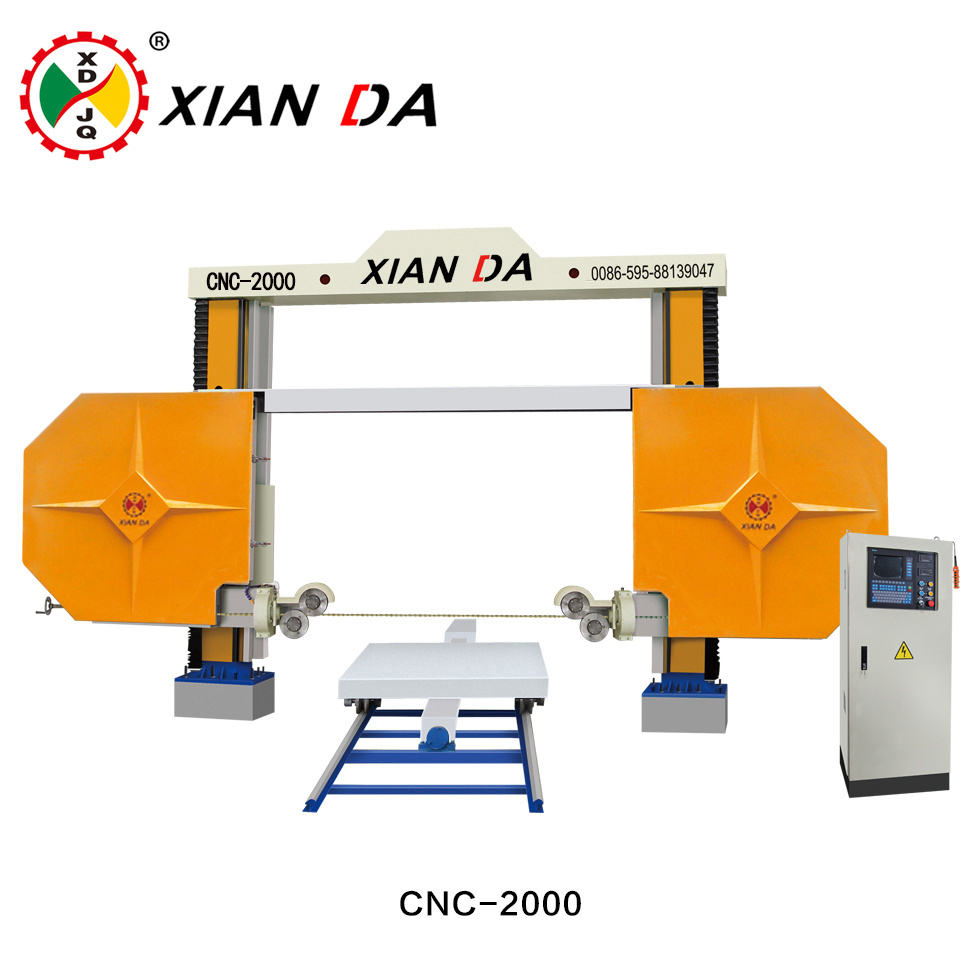

Parameter	Unit	CNC-2000	CNC-2500	CNC-3000
Max Processing Size(L×W×H)	mm	3000×2000×1500	3000×2500×1500	3000×3000×1500
Dimension of Worktable(L×W)	mm	2500×1300	2500×1300	2500×1300
Main Motor	kw	7.5	7.5	7.5
Outline Dimension	mm	6500×6300×3800	7000×6300×3800	7500×6300×3800
Gross Weight	kg	5000	5500	6000
Water Consumption	m³/h	4	4	4

2. Quality Control

We have our own experienced QC.

Our machine will be strictly inspected.

We will provide a Testing Video for each machines before shipping out if required by customer.

3. Delivery time

Based on order quantity, normally three weeks against payment.

4. Warranty

All the machines have one year warranty.

5. After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.

6. Call Me Now

Cell: +86-13959953983

Web: www.chinaxianda.com

Add: Anqi Road, Wuli Industrial Park, Jinjiang City, Fujian, China.

Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20, 000 Square meters. We are dedicated to the development and production of a series of column making machine, stone machine, wire saw stone cutting machine, block trimming machine, Infrared bridge saw, profiling stone machine.

With rapid development, we have attained ISO9001 certification and won many honorary titles, including International Gold Plant Quality Award, China construction recommend building materials production enterprises.

Our company is located in the rapidly developing overseas Chinese hometown-Quanzhou Anhai Cultural and Historial Town, with convenience transportation, by the well-know Wuli Bridge which was named "No a bridge is longer than Wuli".

Since its foundation in 1985 we keep "Advanced Technology and High Quality" as our aim, Moreover, our company dare innovate and develop, and invite the high quality engineers and own a group of strong team with modern technology. By the effort of the whole stuff, we have developed a range of "Xianda" Brand special shape stone processing machineries which is with good quality, new style, reasonable structure, and sold well around China as well as in South Korean and Southeast Asiaetc, It receives high opinions from customers.
