| Prod Model: |
HZDWS0904 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coating: |
Rubber, Plastic |
| Beads/Meter: |
40 |
| Material: |
Diamond |
| Manufacturing Art: |
Sintered, Cold-Pressed, Hot-Pressed |
| Feature: |
Sharpness, Smooth Cutting |
| Certification: |
ISO9001:2000, SGS |
| Kind: |
Wire Saw |
| Manufacturing Arts: |
Sinter |
Product Description

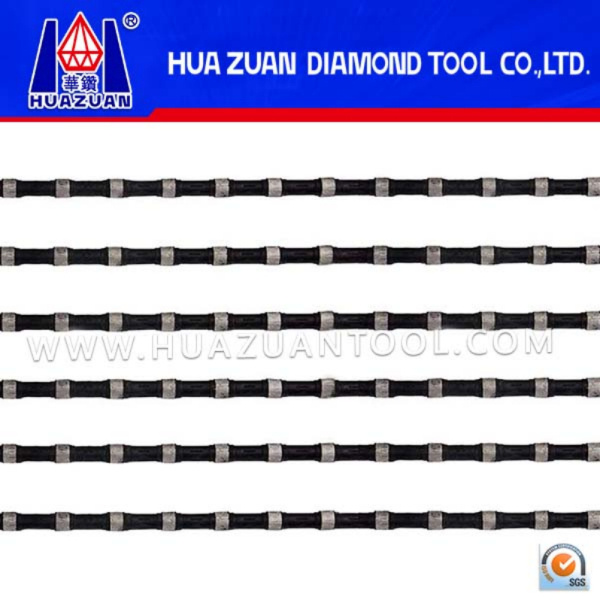

Diamond wire saw for stone saws
The use of diamond wire for shaping operating provides a huge range of possibilities.Tombstones as well as columns and elements for the building industry can be produced in a much more economic way.
The advantages:
1.High cutting ability
2.Smooth surface and clean edges
Wire Application
Cutting various types of granite arc board
For various granite shaping operations
Granite cylinder cutting
Features
High efficiency and smooth cutting surface.
Fewer chance of wire breaking off but long cutting life.
The characteristics of cutting big size blocks with diamond wire
1.It can cut the block with the thickness of 2.3M.
2.It can cut accurately with small inter-space.
3.Reliable cutting and can change the cutting technology according to the stone type.
4.Compare to the blade cutting,it makes lower cutting noise.
Wire Specifications
| Bead Diameter(mm) | Bead/meter | Application | Coating |
| 8.0 | 37 | Granite profiling | High strength plastic |
| 8.5 | 37 |
| 9.0 | 37 |
Parameters
| Application | Wire Linear Speed(m/s) | Cutting Speed(m2/h) | Life(m2/m) |
| Soft granite | 25-28 | 1.0-2.0 | 15-20 |
| Medium hard granite | 22-25 | 0.8-1.5 | 10-15 |
| Hard granite | 20-23 | 0.5-1.0 | 8-12 |
Bead Specification
| Bead diameter(mm) | Working Layer Height(mm) | Support Length(mm) | Bead Type |
| 8.0 | H6.0 | 9.5 | Sintered |
| 8.5 | H6.0 | 9.5 | Sintered |
| 9.0 | H6.0 | 9.5 | Sintered |
Diamond Wire Saw for Marble Profiling
The advantages:
1.High cutting ability
2.Smooth surface and clean edges
Wire Application
Cutting various types of marble arc board.
For marble shaping operations.
Marble cylinder cutting.
Features
High efficiency and smooth cutting surface.
Less wire broken chance but with long cutting life.
Wire Specification
| Bead Diameter(mm) | Bead/Meter | Application | Coating |
| 8.5 | 33 | Marble profiling | High strength plastic |
| 37 |
| 9.0 | 33 |
Parameters
| Application | Wire Speed(m/s) | Cutting Speed(m2/h) | Life(m2/m) |
| Soft marble | 30-35 | 3-6 | 35-40 |
| Medium hard marble | 25-28 | 2-4 | 25-35 |
| Hard marble | 23-25 | 1-2 | 15-25 |
Bead Specification
| Bead Diameter(mm) | Working Layer Height(mm) | Support Length(mm) | Bead Type |
| 8.5 | H6.0 | 9.5 | Sintered |
| 9.0 | H6.0 | 9.5 | Sinetered |
| 9.5 | H6.2 | 10.0 | Electroplated single layer diamond |
