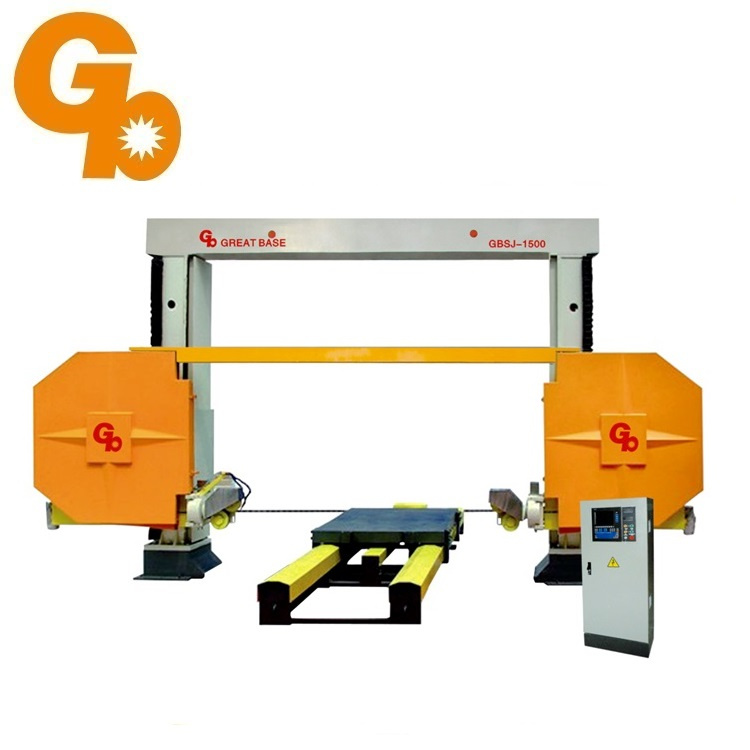

Diamond Wire Saw Granite Marble Cutting Machine Profiling Machine

Name: Diamond Wire Saw Granite Marble Cutting Machine Profiling Machine
Brand: tool-buy.com
SKU: 826304895
Availability: InStock
Rating: 4.9 (113 reviews)

Price:	US $ 27900-45000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Xiamen Great Base Co., Ltd.

Showroom Product Company Profile

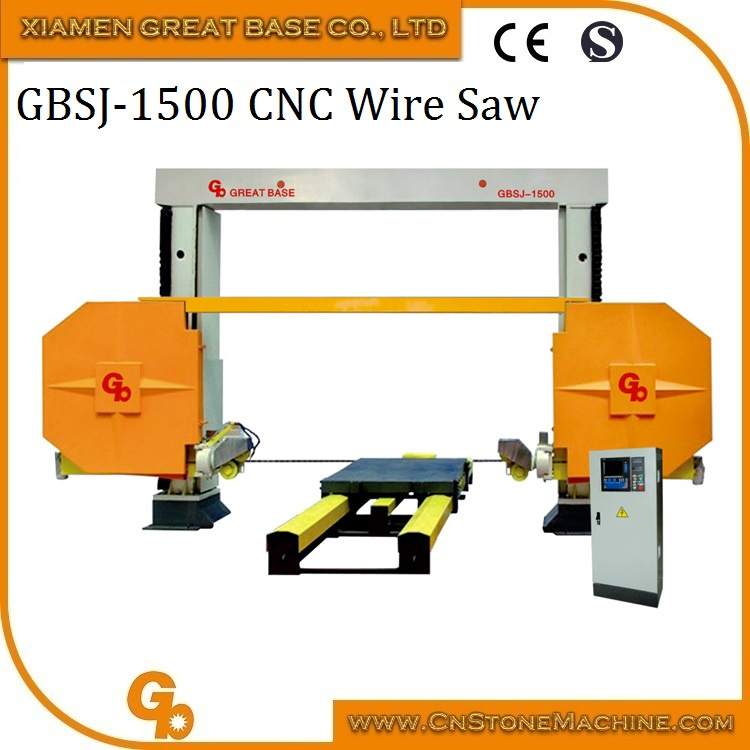

Prod Model:	GBSJ-1500
Function:	cut different shapes and slabs
Key Word:	wire saw machine
Main Motor:	15.09kw
Type:	CNC Cutting Machine
Usage:	Marble
Application:	Stone Industry
Source Voltage:	380V
Automation:	Automatic

Product Description

Features:

1.The degree of automation is high. The electrical system adopts the CNC technician; the mian running adports the stable, good quality and strong servo motor. The running of the wheel adopts the stepping motor.

2. The structure is reasonable, the running is stable. The main frame is gantry type. And because the up/down of the two flywheels adopt the roller type structure, the up/down action is light and flexible, stable. The wire wheel is through balance adjustment so its work is more stable. The up/down is controlled by separate stepping motors, so it is easy for adjustment and easy to keep in the same height.

3. The operation is easy. It adopts the man-machine menu which is easy for reading and monitoring. Design the shape on the computer and then copy it to this system. It will change it into the procedure directly.

4. The tension of the wire adopts hydraulic system. This hydraulic system is designed with the hydraulic accumulator and discharge pressure switch which can make sure the stable pressure and is easy for maintance.

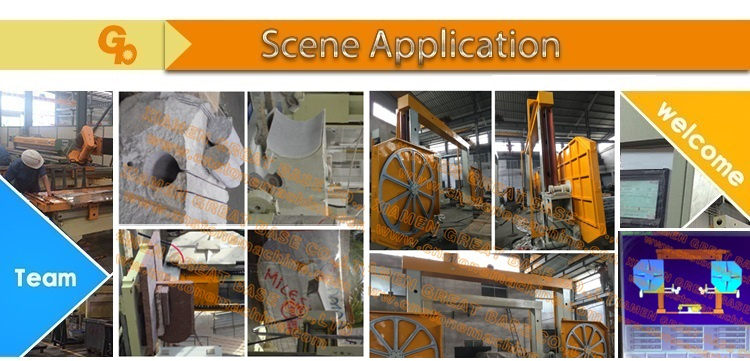

5. It is major in profiling processing of the granite and marble, can cutting different sizes of arc slab, solid columns and hollow columns and large-scale stone line, letter etc.
Technical Data:

Name	Unit	GBSJ-1500
Saw diameter	mm	Φ8-Φ11
Saw gross length	mm	16500
Line speed	m/s	0-40
Lifting travel of cutter	mm	1600
Max process size	mm	3000X2000X1500
Production efficiency	m²/h	1-2 (marble) 0.5-1 (granite)
Full size	mm	7500X6000X3800
Gross power	kw	15.09
Gross weight	kg	7000
Worktable whether revolve		no

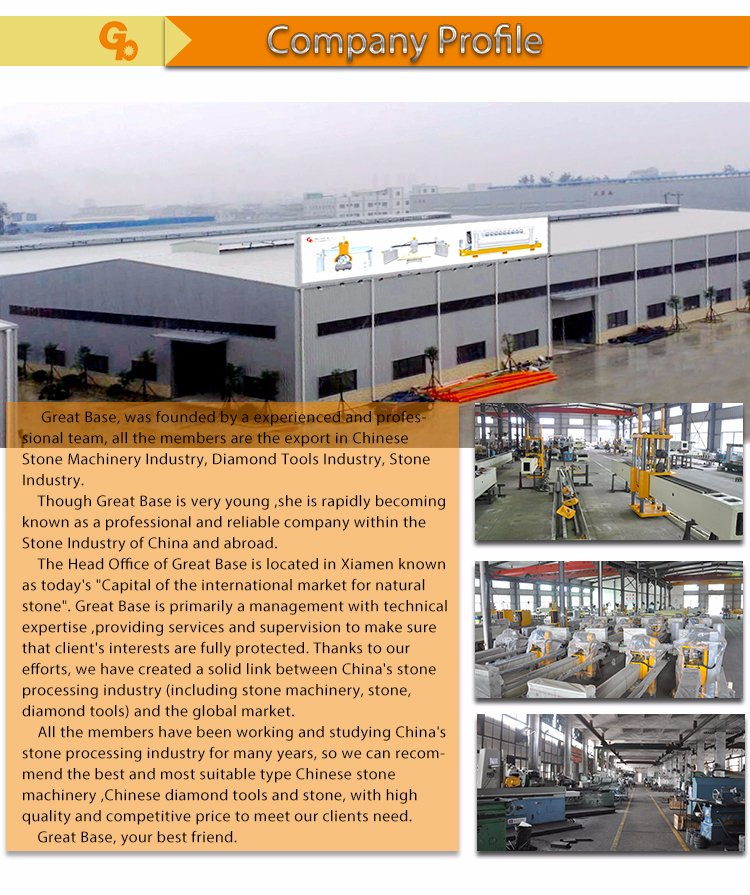

Great Base, was founded by a experienced and professional team, all the members are the export in Chinese Stone Machinery Industry, Diamond Tools Industry, Stone Industry.

Though Great Base is very young, she is rapidly becoming known as a professional and reliable company within the Stone Industry of China and abroad.

The Head Office of Great Base is located in Xiamen known as today's "Capital of the international market for natural stone". Our own stone machine factory is located in, Xiang'an industry, Xiamen, we can produce series Stone Processing Machine, such as GBQS series Block Cutter, GBQQJ series Bridge Type Block Cutter, GBHW series Laser Bridge Edge Cutter, GBLXM series Granite Polishing Line, GBMM series Marble Slab Polishing Line, GBSJ series CNC Wire Saw/ Block Cutting Wire Saw, GBXJ series Automatic Profile Saw, GBYZ series Column Cutting Machine, and so on. All machines are improved based on current machine in China because of all the technician/managers with more than 20 years working experience in Stone Machine industry. We know what kind of quality/price/service we need provide for our abroad clients, and hope long term cooperation. At this moment our machines are working in USA, Canada, Australia, Bulgaria, Russia, Ukraine, Moldova, Kyrgyzstan, Armenia, Saudi Arabia, Egypt, Dubai, Oman, Sudan, Uganda, South Africa, Vietnam and other places, We also participate in Coverings in USA Apirl, Dubai Stone Fair in May, Moscow Stone Fair in June, Cairo Stone Fair in DEC. We also have already several partners in different countries.

Any inquiry, any question, please call/email us, and we also warmly invite you to visit us, Great Base looks forward to cooperating with you and building a better future together.
