| Price: | US $ 9800-12500/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | YG 25 |
|---|---|
| Name: | Diamond Wire Saw Machine |
| MOQ: | 1 Set |
| Power: | 22/25kw |
| Warranty: | 1 Year |
| Fuel Tank Capacity: | 17L |
| Working Pressure: | 15-20MPa |
| Weight: | 176kg |
| Voltage: | 380V/50Hz |
| Working Flow: | 40-100L/ Min |
| Feeding Method: | Automatic Hydraulic |
Product Description
Hydraulic Diamond Wire Saw Diamond Beads For Cutting Stones is used to cut concrete and rock walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.If you are interested, please let us know which type of festool saw you need. We will offer you the best Diamond Wire Saw Machine and a very competitive price.
Technical Parameters
| Diamond wire saw machine and hydraulic power station | |||
| Motor type | YG-25 | Rated put power | 22/25kw |
| Min. input power | 25/33HP | Working voltage | 380v/50Hz |
| Shaft output speed | 350/940/1300r/min | Hydraulic station type | Gear pump |
| Max. rope length | 18m | Working flow | 40-100L/ min |
| Feeding method | Automatic hydraulic | Working pressure | 15-20Mpa |
| Cutting Unit Weight | 64kg | Fuel tank capacity | 17L |
| Drive motor weight | 14kg | Size | 650*550*1150mm |
| Weight | 78kg | Weight | 98kg |

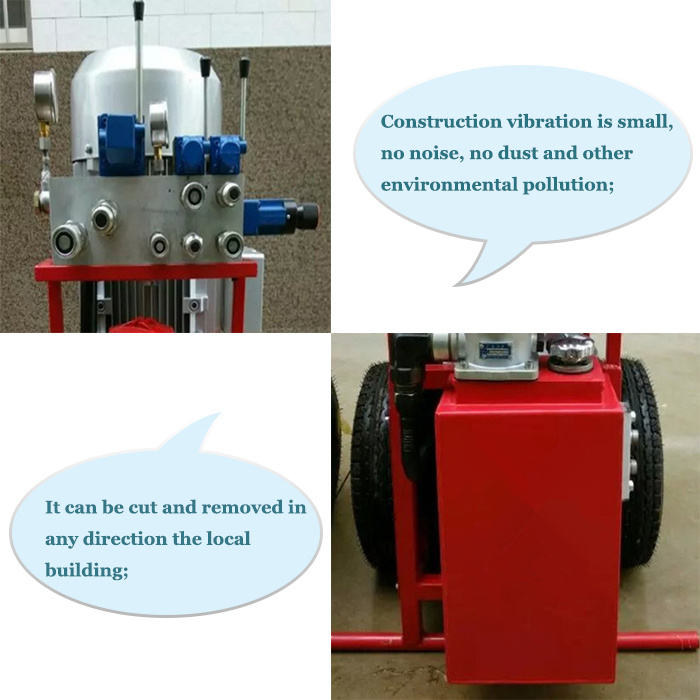

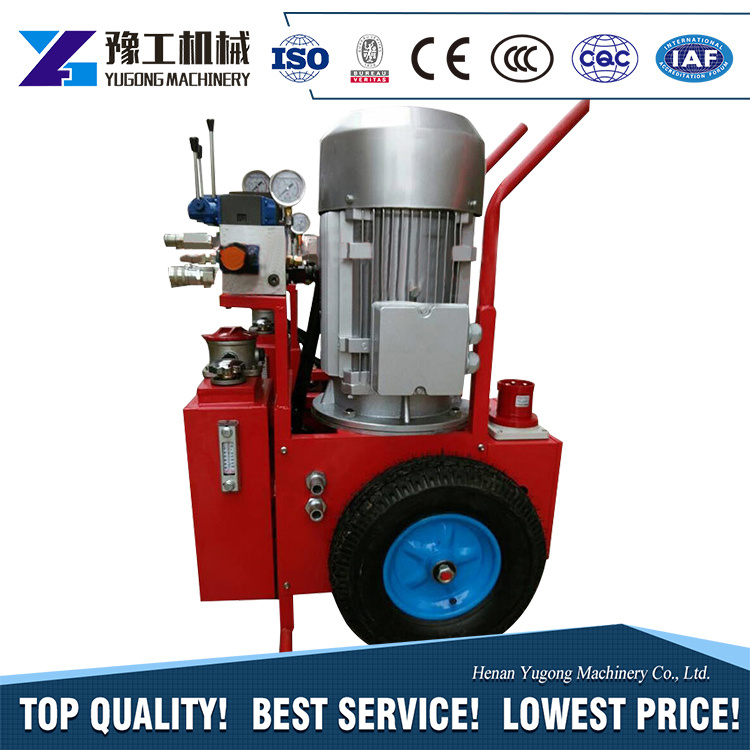

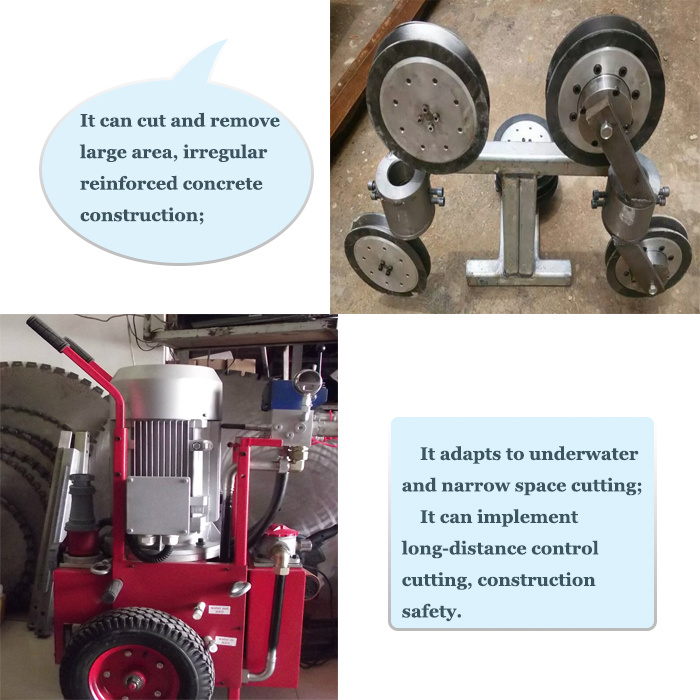

Product Features and Details

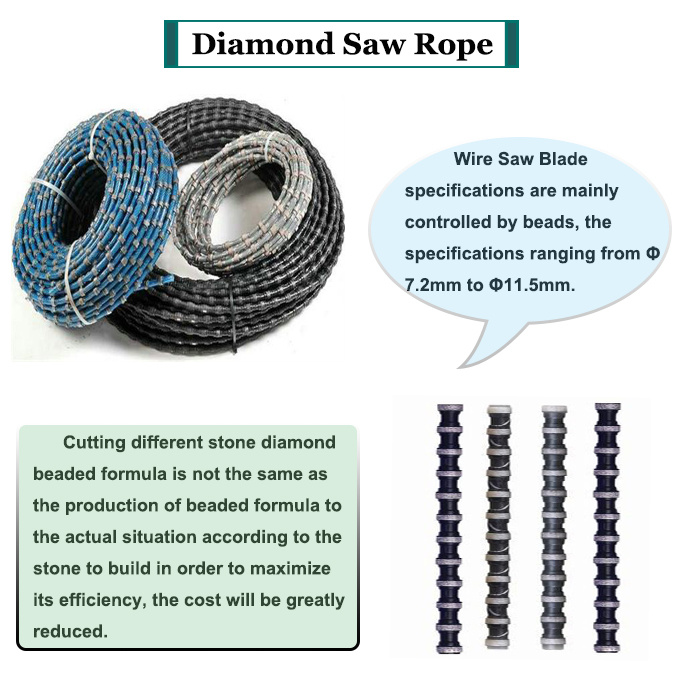

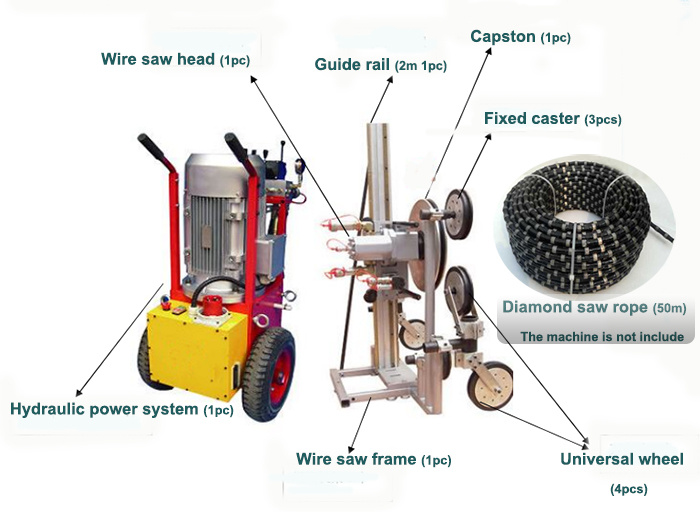

Product and Spare Parts Show
Packaging & Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Payment Terms
We accept L/C, T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Frequently Asked Questions
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What is your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
About Us
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
