| Prod Model: |
HQ600 |
| Max. Cut Size (Lxw): |
3200X2000 mm |
| Max. Cut Thick: |
180 mm |
| Table Tilting: |
0-85' |
| Table Rotation: |
90/360' |
| Max. Blade Size: |
600 mm |
| Spindle Motor: |
15 Kw |
| Weight: |
6,500 Kg |
| Type: |
CNC Cutting Machine |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
Product Description
Model NO. : HQ600

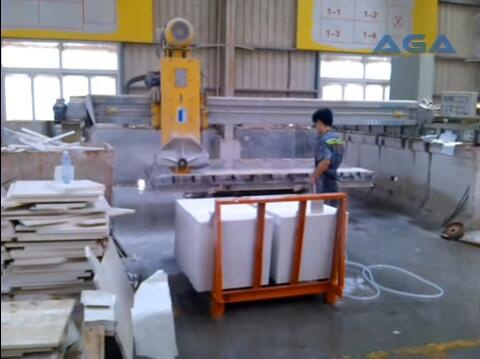

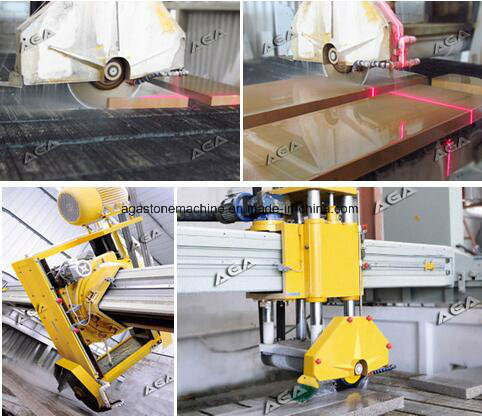

Bridge saw cutting machine for marble granite stones. It is applicable on cutting and trimming slab, countertop, steps, etc.
The bridge saw works by industrial computer with programs for automatic cut, and also capable of manual operation. All the operations are achieved from the touch screen panel.
It is able to cut 3.2m length and 2 m width with laser guide sensor for cutting guide.
The table tilts up to 85 for easy load of big slabs and also turns 360 degree to change the cutting direction.
Advantage
Main structures made of strong cast iron and stainless steel for protection
Electric parts from Japan ensuring stable performance
Computer control automactic work and stable performance
Flexible movements in X,Y,Z axis by screw
Precise cut +/- 0.2mm
Touch Screen easy operation
Specification:
Max. cut size
( L x W ) | mm | 3200 x 2000 |
| Max. cut thick | mm | 180 |
| Table tilting | mm | 0-85 |
| Table size ( L x W ) | ° | 3200 x 2000 |
| Table rotation | ° | 90/360 |
| Max. blade size | mm | Φ600 |
| Spindle motor | Kw | 15 |
Dimention
( Lx W x H ) | m | 6 x 4.8x 3 |
Related bridge saw
Our main machineWe are professional in making marble granite machine, such as Polishing Machine XMJ1050-16C, ZDMJ-16C, Bridge Saw XZQQ625A, HQ400/600/700, HQ1200, Block Cutter DQ2200/2500/2800,DS1600,DL2200/2500/3000, CNC Wire Saw WS2000, Balustrade Cutting Machine DYF600, Column Cutting Maching SYF1800, Edge Polishing Machine MB3000, MB3000L, Splitting Machine P90/95, P240, Pressing Machine P72/ 80, P74, Stone Crusher PS22... ect, please visit our website for more machine pictures: www.againdustry.com .
Packing
