| Prod Model: |
GCP11.4/GCP11.0/GCP10.5 |
| Certification: |
SGS/Ce/ISO9001 |
| Beads/Meter: |
37beads/M |
| Size Of Segment: |
Various as Customer Requirements |
| Fixing: |
Plastic |
| Colour: |
Customized |
Product Description
Products introduction:
Company Information:
Skystone has been devoting to manufacture diamond tools for the stone industry since 1994,which has a professional diamond wire saw manufacturing factory ,a stone machine maufacturing factory, a diamond tool R&D center, a equipment R&D center,a mining project technology center and a building cutting technology center. Our range of wires covers all the needs in quarries as well as in processing for marble, granite and abrasive materials. Our product performance have been widely proven in the world, and they are exported to Brazil, Iran, Norway, South Africa, Turkey, Russia, Poland and other 30 countries.

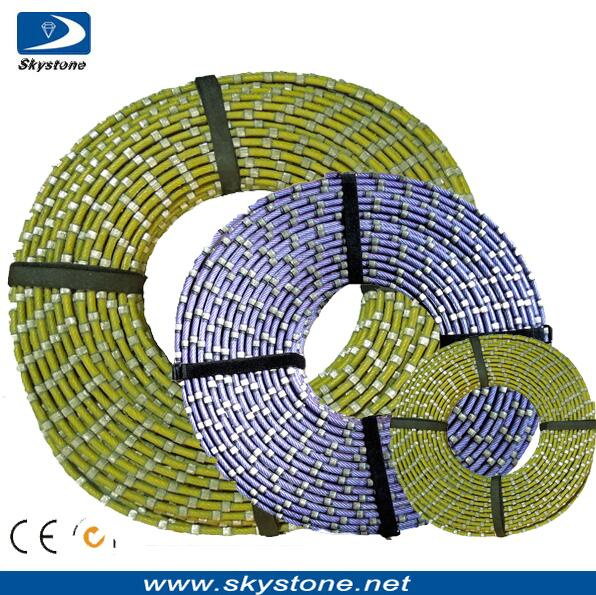

Advantages of the single diamond wire for granite block cutting:
1. There is not much block size limited for wire sawing compare with disk saw.
2. The wire saw inter-space is thinner and more precise than the large disk saw (deviation < 1 mm)
3. Wire saw cutting is more effective and relatively cheaper in long term working.
4. By virtue of its greater and greater reliability, wire sawing technology is more and more automated and thus becomes just as productive as competing techniques.
5. Noise nuisance generated by diamond wire sawing is significantly less than that produced by other sawing techniques.
Specification of this knind diamond wire:
| Model | Diameter(mm) | Fixing | Beads/m | Material | Sawing speed (mm/min) | Life time (m2/m) | line speed (m/s) |
| GCP11.4 | 11.4 | plastic | 40 | class 1-2
class 3-4
class 5 | 12-20
8-15
6-10 | 12-20
10-15
7-10 | 28-30
28-30
26-30 |
| GCR11.4 | 11.4 | rubber | 40 |
| GCP11.0 | 11.0 | plastic | 37/40 |
| GCR11.0 | 11.0 | rubber | 40 |
| GCP10.5 | 10.5 | plastic | 37 |
Note: Efficiency is measured by down-feed per min.
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
