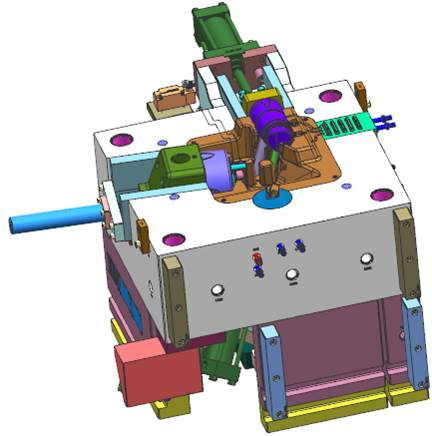

Die Casting Mold Fit on 800t Press Machine-W
| Price: |
US $ 20000-40000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DW-017 |
| No. Of Cavities: |
1X1 |
| No. Of Sliders: |
4 |
| Mold Structure: |
2-Plate Die |
| Die Casting Machine: |
800t |
| Mold Delivery: |
42days |
| Mold Standard: |
Dme, Hasco |
| Certificate: |
ISO9001:2008 |
| Material: |
Steel |
| Application: |
Mechanical |
Product Description
Description:| Part Name | xxxx | No. of Cavities | 1*1 |
| Part Material | A360 | No. of Sliders | 4 |
| Part Size | 176*155*253mm | Die Structure | 2-plate die |
| Die casting machine | 800T | Mold Size | 980*620*620mm |
| Industry | Mechanical and electrical | Mold Delivery | 42 days |
Company Introduction:
Shenzhen Precisioner Diecasting Mold Co., Ltd
1. Business filed:
1) High pressure die casting die
2) Trimming die
3) Rapid prototype die casting die
4) DME quick-change replacement unit die
5) Components of die casting die, such as replacement core, a single sub-insert, a mold base only, cavity insert only etc.
2. Multiple Tool Material for option
A.Mold Insert Steel: ASSAB 8418/Dievar, ASSAB 8407/Orvar Supreme,1.2343,1.2344, Chinese H13...
B. Mold base steel: P20, S50C...
C. Trimming Die Insert Steel: ASSAB XW-42, A2, D2, Chinese H13 ...
D. Trimming Die Base Steel: S50C...
3. Professional Engineering service:
1) Responding e-mails within 24 hours
2) Quotation offered within 2 working days after enquiry and order details received
3) DFM report and mold flow analysis within 2 working days
4) Process report updated every week when start construction.
5) Mold operation instructions, Testing report and recommended parameters, Certificate of steel purchase and heat-treatment QC report, Mold maintenance recommendation, Complete mold drawings, Spare wearing parts, Mold production record provided.
4. Wide Industry Range
Automotive and Trucking, Aerospace, Recreational Vehicles, Aviation, Telecommunications equipment, Medical Devices, Electrical Instrumentation, daily hardware, motorcycle, etc.
5. High Quality
A. Certificate: ISO 9001: 2008. By the way, ISO 14000 and TS16949 are in agenda.
B. Standard: DME, HASCO
C. Qualified Rate of T1: Over 95% of our molds can be directly put into mass production after T1 with excellent performance.
6. Short Lead time (T1 ):
Mold Size Lead Time
<500mm 3-4 weeks
500-800mm 4-7 weeks
800-1200mm 7-9 weeks
1200-1500mm 9-12 weeks
Precisioner Diecasting Mold Co., Ltd is a reliable diecasting mold manufacturer who focuses on integrated solution of zinc and aluminum diecasting mold, while provides one-stop service for customer, from optimize initial design, analyze budget scheme, CNC prototyping of conceptual product, design and manufacture of rapid prototype mold, mass production mold and its matching trim die, also provides small lot production, mold maintenance, repair, rebuild and refurbish service and so on. Our focus is mold itself, not providing large lot production of parts.

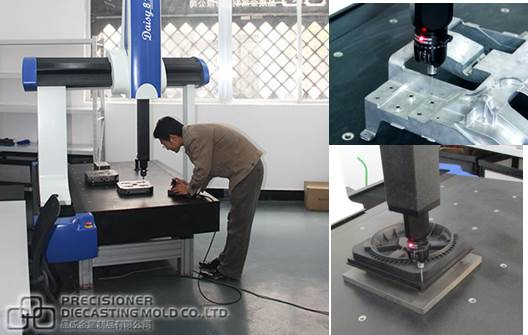

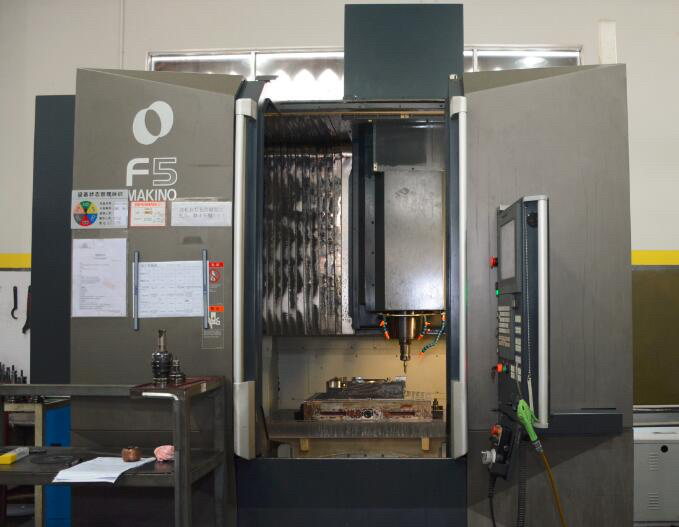

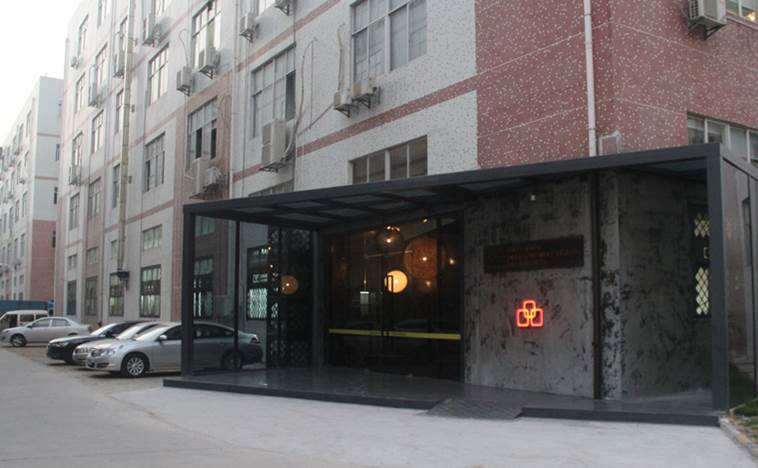

Precisioner Diecasting Mold Co., Ltd. is located in Guanlan Street, Longhua New district of Shenzhen. It was first established in Jincanda Industrial Park in Guanlan before moving to the Silicon Valley Power New Material Industrial Park in July of 2013, equipped with corollary equipments of manufacturing and inspecting diecasting mold, with over 70 engineers and technicians specialized in diecasting mold for years, Precisioner started exporting diecasting molds since 2009 and have already exported more than 2400 sets of diecasting molds and service. Our customers are mainly in America, Canada, Australia, Germany, Sweden, Portugal, Russia, Brazil, New Zealand, Chinese Guangdong Province, Shanghai city and so on. Precisioner supplies a wide range of industrial and commercial clients from automotive, communication, electric power, mechanical equipment, medical instrument, LED, household appliances, furniture and other leading industries. To better serve international clients, an office in Hong Kong Precisioner Industry ( HK ) Co., Ltd has also been set up.
Excellent Quality - On Time Delivery - Transparent Mold Cost
A reasonably optimal design scheme is the key of producing a high quality diecasting mold, we think highly of prophase design and spend much effort in analysis, discussion and modification to make the design scheme can avoid or prevent potential problem that will happen during mass production, on this basis, with precise machining process control, more than 90% of our produced diecasting mold can be directly into mass production after T1 and perform excellently, which help our customers save much time and cost, further gain larger competitive edge.
Delivery time is another vital factor of a successful project, and therefore we already have an elaborate progress plan and sound project leader system before a project starts, in the mean time, we will provide customers with weekly progress report and pictures in the manufacturing process, also welcome schedule inquiry and site inspection, consequently the problem of delayed delivery rarely happens.
On account of price disorder and asymmetric information of cost in mold manufacturing industry, what we provided for each RFQ is not only a total price, but also a break out list which contains each price component, including mold dimension, mold steel, tooling life, material cost, machining cost, administration cost, profit rate and so on, to let you know more.
Please take this opportunity to view our diecasting mold services in detail.
Not only a diecasting mold manufacturer, Precisioner Diecasting Mold Co., Ltd is also a provider of information and service, welcome to contact us for further inquiry.
