| Price: | US $ 10000-15000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | JBP100B |
|---|---|
| Model No.: | Jbp100b |
| Drill Depth: | 30m |
| Hole Diameter: | 80-130mm |
| Working Pressure: | 0.5-1.4MPa |
| Air Delivery: | 7-12m3/Min |
| Diesel: | Yc2115 |
| Power: | 37kw |
| Dimension(L*W*H): | 4250*1980*2260mm |
| Weight: | 3200kgs |
| Used For: | Blasting Rock in Quarry, Building Road |

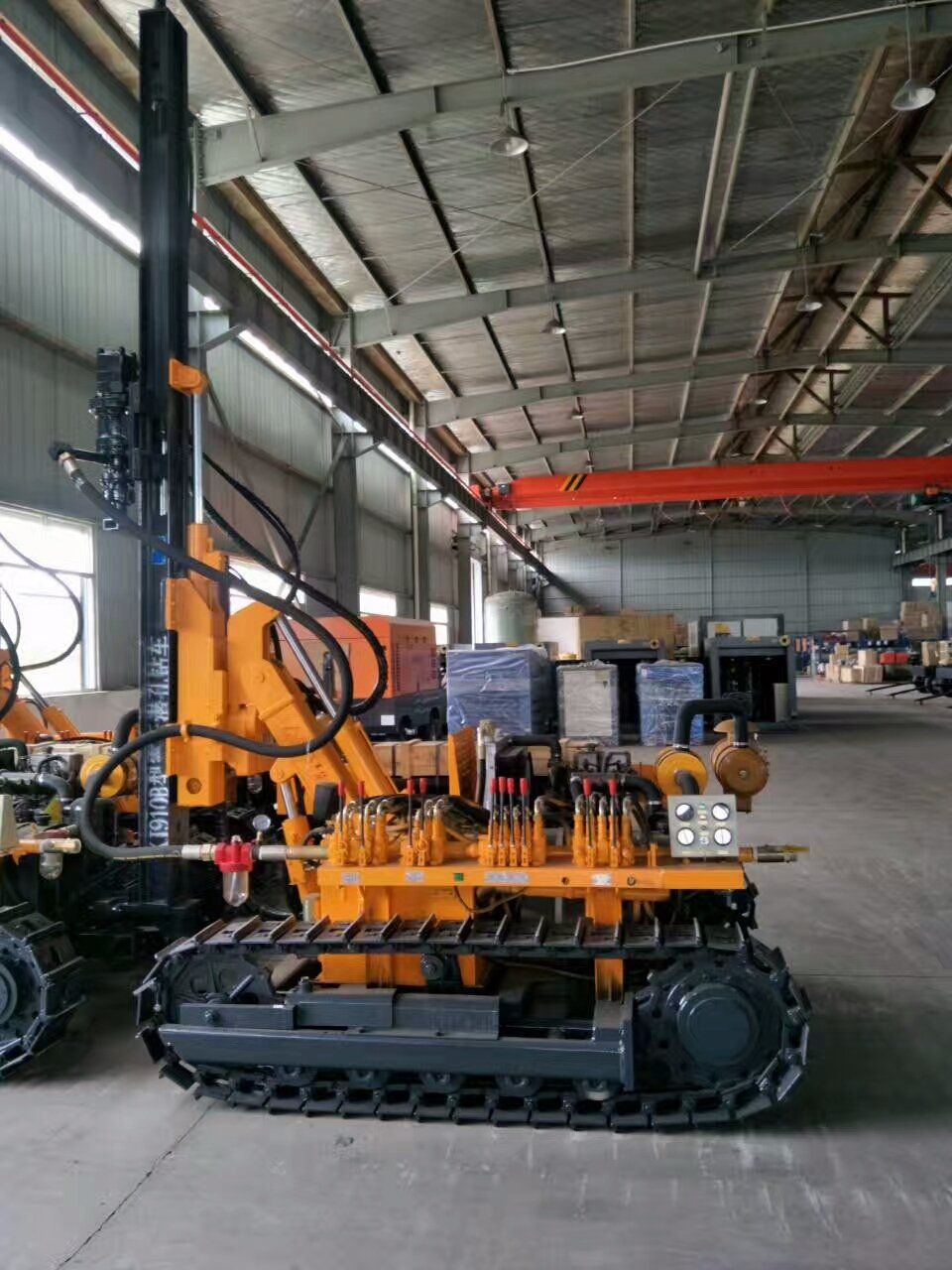

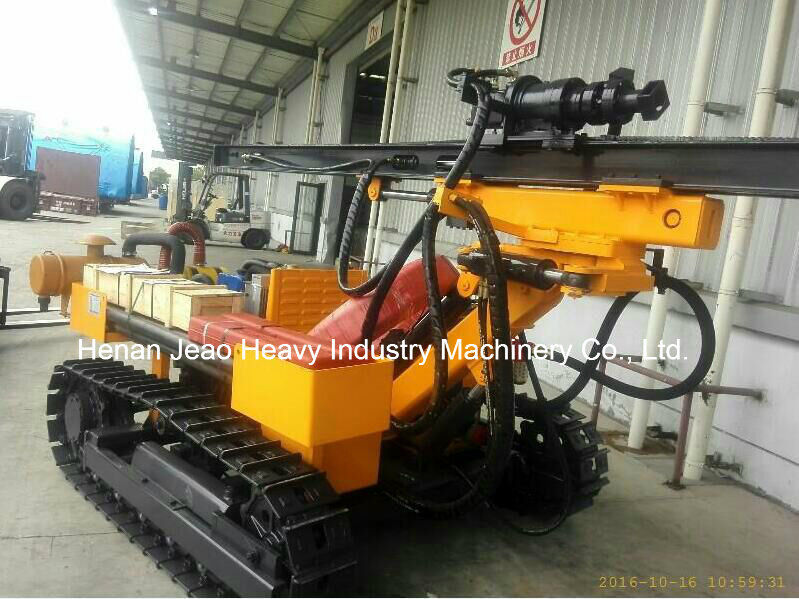

The Usage of JBP100B Portable Crawler Mining Pneumatic Rock Drilling Rig .
1. This series machine are used in a wide variety of Quarry ,Highway , Water and electricity , Surface mine and deep hole joint pipe drill work on the building project etc.
2. This series drilling rigs with air compressor,hammer together work , To blasting horizontal hole ,vertical holes ,inclines holes .

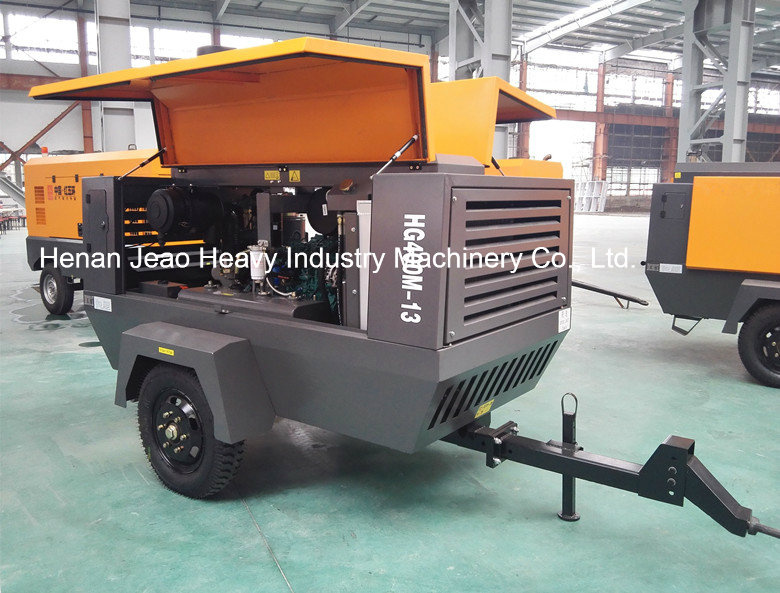

Specification of Diesel Crawler Down The Hole Drilling Rig Machine:
| Model No | HG400M-13 |
| Compressor | |
| Style | Double screw, single stage compression, Portable |
| Air Delivery(m³/min) | 10 |
| Rated Working pressure (Bar) | 13 |
| Range of Working pressure(Bar) | 5-13 |
| Lube Capacity(L) | 60 |
| Interface Dimension,Quantity | R1.1/2" x 1,R1"x1 |
| Tire Specifications | 6.5-16x2 |
| Tire Pressure(Kpa) | 50-600 |
| Elevation Work Max.(m) | 3000 |
| L×W×H(mm) | 3220×1850×1850 |
| Weight | 2450 |
| Noise dB(A) | 80-85 |
| Diesel Engine | |
| Model | 6BT5.9 or YC6108ZG |
| Style | Cooled stroke 4 direct injection super charge |
| Rated Power(Kw/Hp) | 110/150 |
| Rated Speed(rpm) | 2500 or 2400 |
| Coolant Volume(L) | 25-28 |
| Engine Oil Capacity(L) | 12-18 |
| Fuel Tank Capacity(L) | 120-160 |
| 80% Load oil wear (L/h) | 17-18 |
