Home Toolbuy Products Different Shapes Diamond Segments Stone Cutting Segment for Granite Marble Limestone
Different Shapes Diamond Segments Stone Cutting Segment for Granite Marble Limestone
Price: |
US $ 0.8/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
700/Piece |
Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Prod Model: |
HZ-SDS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Items: |
Stone Cutting Segment |
Application: |
Segment for Cutting Stone |
Welding: |
High-Frequency |
Material: |
Diamond and Metal Bond |
Product Description
Product Description

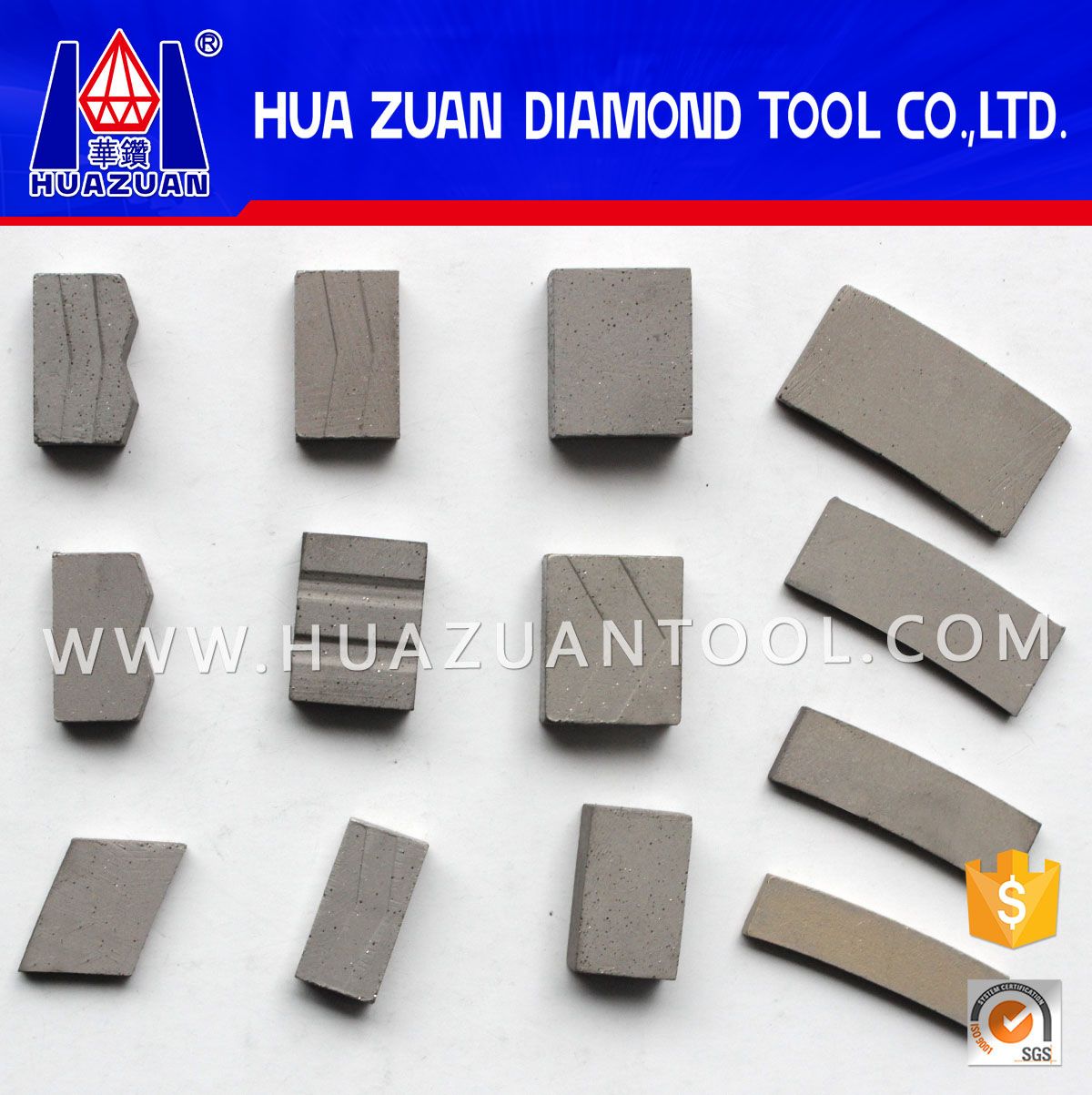

Product Name | Different shapes diamond segments stone cutting segment for granite marble limestone |
Size | ( Specialized in making any sizes of diamond segment, we can make many different kinds of quality and sizes to fit your market and your stone. ) |
Diameter | From 300mm to 3500mm |
Application | Diamond segment Used for cutting granite, ( also other segments can made for marble, sandstone, limestone, lava, concrete, mine ) |
Feature | 1. Fast cutting & long life & Stable performance, High grade of diamonds 2. Different bonds are for different applications & precise segment size 3. Working safe, quiet, and precise, reducing cutting & working time 4. Great adaptability & No chipping diamond segment |
Package | Color box,double blister card,skin packing,white box etc |
Quality | GSG&Gold Supplier |
Factory=Quality Control=Competitive Price=Owntechnology=OEM |
Middle blade diamond segment dimension |
Outer Diameter | Dimension of Teeth | No.of teeth |
Inch | mm | length | Thickness | Height | |
10" | 250 | 40 | 3 | 10 / 15 | 17 |
12" | 300 | 40 | 3 | 10 / 15 | 21 |
14" | 350 | 40 | 3.2 or 3.4 | 10 / 15 | 24 |
16" | 400 | 40 | 3.4 or 3.6 | 10 / 15 | 28 |
18" | 450 | 40 | 4 | 10 / 15 | 32 |
20" | 500 | 40 | 4.2 | 10 / 15 | 36 |
24" | 600 | 40 | 4.6 | 10 / 15 | 42 |
28" | 700 | 40 | 5.6 | 10 / 15 | 42 |
32" | 800 | 40 | 5.6 | 10 / 15 | 46 |
Single/Multi blades diamond segment dimension |
36" | 900 | 24 | 6.0/6.8 | 12/13/15 | 64 |
40" | 1000 | 24 | 6.4/7.2 | 12/13/15 | 70 |
48" | 1200 | 24 | 6.5/7.5 | 12/13/15 | 80 |
56" | 1400 | 24 | 7.5/8.5 | 12/13/15 | 92 |
64" | 1600 | 24 | 8.4/9.2 | 12/13/15/20 | 108 |
72" | 1800 | 24 | 9.2/10 | 12/13/15/20 | 120 |
80" | 2000 | 24 | 9.5/10.5 | 12/13/15/20 | 128 |
88" | 2200 | 24 | 10.5/11.5 | 12/13/15/20 | 132 |
100" | 2500 | 24 | 11.5/12.5 | 12/13/15/20 | 140 |
120" | 3000 | 24 | 12.5/13.5 | 12/13/15/20 | 160 |
140" | 3500 | 24 | 12.5/13.5 | 12/13/15/20 | 180 |
Other specifications of diamond segment are available upon request. |
FAQ
Q1:Are you a factory or trading company?
A:We are factory.
Q2:Where is your factory located?How can I visit you?
A:Our factory located in Quanzhou City,Fujian Province,China.You can fly to Xiamen International Air Port or Jinjiang Air Port,and we will you pick you up.Welcome you to visit our factory.
Q3. How is your quality?
A. We have a very seriously control system(PDCA principle and 7S) and . We guarantee the high performance of our products.
Q4.What we should do if your products can not run well?
A:Give us detailed report.Analyze the reason.
Try to find a way to solve the problem.If it's our problem and not possible to solve then will give replacement.
Q5. Do you have different quality for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different typology respectively.
Quanzhou Huazuan Diamond Tools Co., Ltd., established in 1994 and covering an area of more than 10, 000 square meters, is an enterprise with more than 20 years' experience in research, development and production. "HUAZUAN" means made in China, as solid and stable as diamond. Driven by diamond saw blade, diamond segment and diamond wire saw as for main products, company produce a series of high quality diamond grinding and polishing tools. Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers. With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology, and build the outstanding business relationship with more than 50 countries and region partners. We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients, suppliers and staffs. In recent years, company make and practice a strategic plan to"reinforce a high quality production system, create a consultant service team" and reached great success. At present, China diamond tool constantly embody the competitiveness in the world, we expect to contribute ourself to change the poor quality image of China diamond tool in the world with our effort.
