Digital Concrete Rebound Hammer Ht-225D/Ht-75D/Ht-20d
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
HT-225D/HT-75D/HT-20D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
| Color: |
Red |
| Gross Weight: |
3.0 |
| Hammer Material: |
Steel |
| Explosion-proof: |
Explosion-proof |
| Type: |
Rebount Hammer |
| Brand: |
Sadt |
Product Description

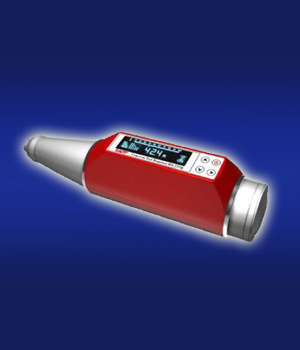

HT-225D concrete test hammer/HT-75D concrete test hammer/HT-20D concrete test hammer is an integrated digital concrete hammer which combines data processor and test hammer into one unit. It is widely used for non destructive testing quality of concrete and building materials in finished structure or prefabricated blocks. From its rebound value, the compressive strength of concrete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.
KEY FEATURES
High contrast OLED display
All setup can be made on site
Automatic calculating compressive strength
Automatic correction of impact direction
All data will be stored in memory
All data can be transferred to PC by USB cable or blue tooth(optional)
Dual display for analogue ruler and digital value
| Model | HT-225D | HT-75D | HT-20D |
| Display | OLED digital |
| Measuring range | 10-70N/mm2 | 1-25N/mm2 |
| Accuracy | ± 0.1R |
| Impact energy | 0.225kgm (2.207Nm)for testing ordinary building and bridge construction | 0.075kgm (0.735Nm)for testing small and impact-sensitive parts of concrete or artificial brick | 0.020kgm (0.196Nm)for testing mortal or clay of products |
| Communication | USB2.0 or Bluetooth(optional) |
| Storage | data for 4000 concrete structures |
| Operating temperature | -40º -60º C |
| Power supply | 3.7V Li-ion rechargeable battery charged via USB port |
| Dimension (mm) | 280x75x60 |
| Net weight | 1.1kg |
