Mortar Test Hammer Ht-20d Concrete Test Hammer at Factory Price
Price: |
US $ 100-1500/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal |
Prod Model: |
HT-20D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
Color: |
Red |
Hammer Material: |
Steel |
Application: |
Electrical Tool Set |
Explosion-proof: |
Explosion-proof |
Type: |
Electronic Hammer |
Brand: |
Sadt |
Handle Material: |
Plastic |
Product Description

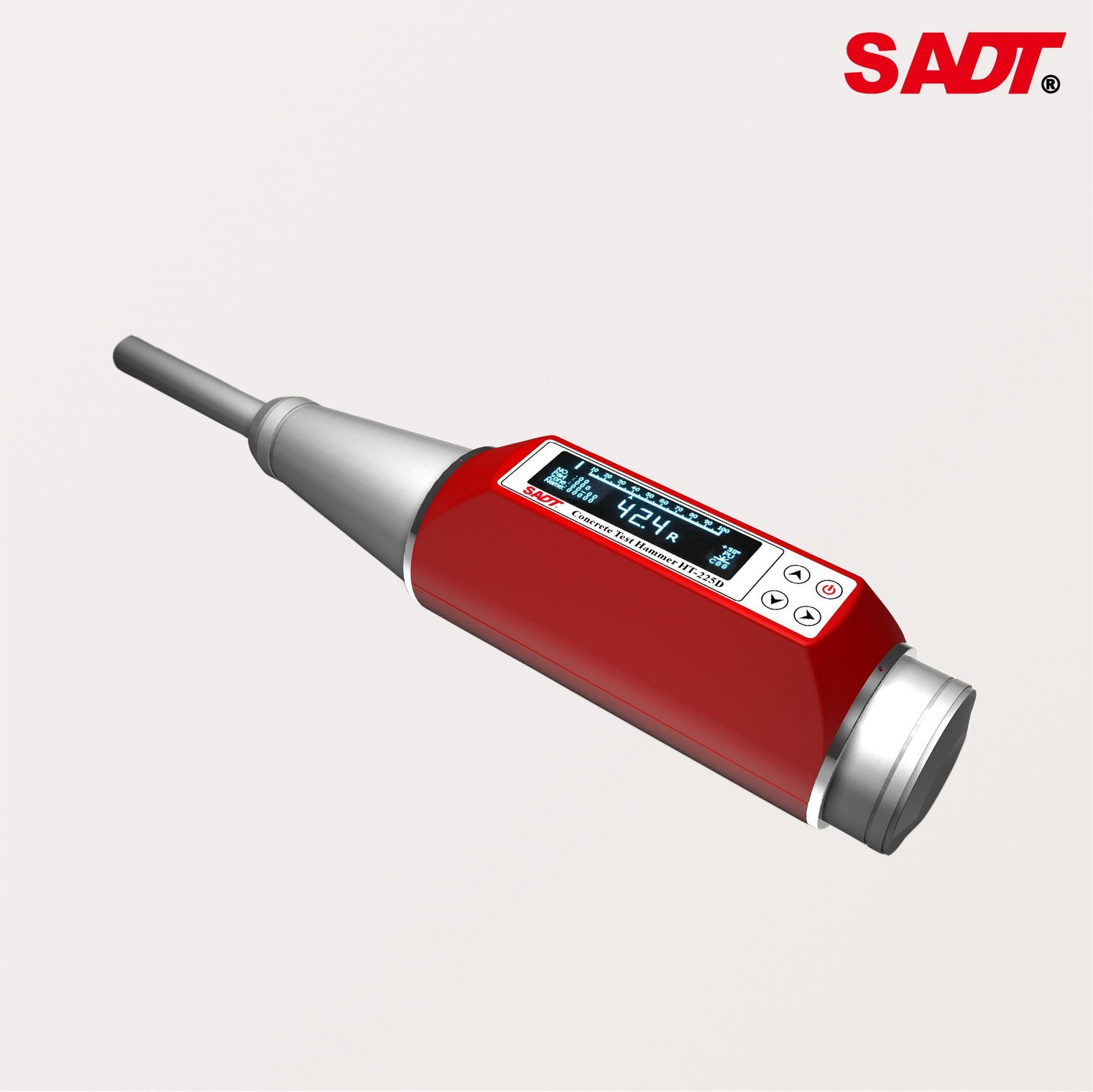

Mortar Test Hammer Ht-20d concrete test hammer at factory priceHT-20D concrete test hammer is an integrated digital concrete test hammer which combines data processor and test hammer into one unit. It is widely used for teting mortar or clay for products. From its rebound value, the compressive strength of concrete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.
KEY FEATURES
High contrast OLED display
All setup can be made on site
Automatic calculating compressive strength
Automatic correction of impact direction
All data will be stored in memory
All data can be transferred to PC by USB cable or blue tooth(optional)
Dual display for analogue ruler and digital value
Model | HT-225D | HT-75D | HT-20D |
Display | OLED digital |
Measuring range | 10-70N/mm2 | 1-25N/mm2 |
Accuracy | ± 0.1R |
Impact energy | 0.225kgm (2.207Nm)for testing ordinary building and bridge construction | 0.075kgm (0.735Nm)for testing small and impact-sensitive parts of concrete or artificial brick | 0.020kgm (0.196Nm)for testing mortal or clay of products |
Communication | USB2.0 or Bluetooth(optional) |
Storage | data for 4000 concrete structures |
Operating temperature | -40º -60º C |
Power supply | 3.7V Li-ion rechargeable battery charged via USB port |
Dimension (mm) | 280x75x60 |
Net weight | 1.1kg |
Sino Age Development Technology, Ltd. (SADT), is a leading manufacturer of measuring and testing instrument, specialized in NDT and quality control fields. We have our own HARTIP series portable hardness testers from the very begining. We are professional producer with ISO 9001 quality system. The main products include: Hartip series hardness tester (HARTIP3000, HARTIP1500, HARTIP1000, HARTIP1800, HARTIP2000, HARTIP2200 and HARTIP1900), ultrasonic thickness gauge( SA40+ SA40, SA40EZ, ST5900), concrete hammer(HT-225D, HT-225A), ultrasonic flaw detector(SUD10, SUD50), gloss meter( GTS, GT60, GT45, GT60N), portable metallurgical microscope (SM500, SM-3), brinell hardness reading automatic measuring system, surface roughness tester and color meter. Most of the products are applied with CE certificate.
Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc. All products supplied by SADT have excellent quality and competitive price with our best service.
