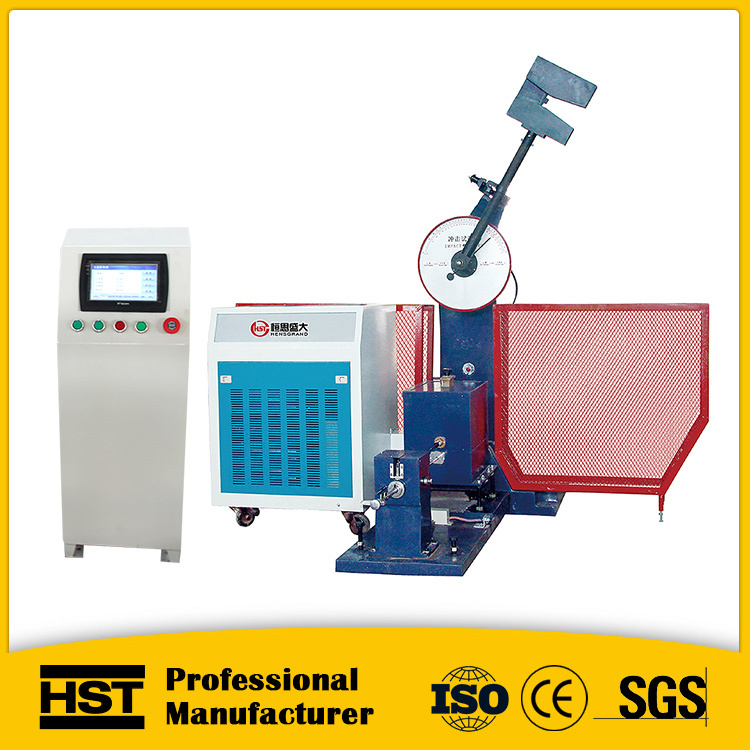

Digital Pendulum Low Temperature Izod Charpy Impact Testing Machine (JBS-300Y/500Y)

Name: Digital Pendulum Low Temperature Izod Charpy Impact Testing Machine (JBS-300Y/500Y)
Brand: tool-buy.com
SKU: 712088722
Availability: InStock
Rating: 4.4 (127 reviews)

Price:	US $ 3000-20000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Jinan Kason Testing Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	JBS-300Y/500Y
Delivery Time:	2 Days After Get Payment
Warranty:	12 Months
Impact Energy:	150j/300j/250j/500j
Type:	Impact Testing Machine
Weight:	500-1000Kg
Power Source:	AC220V
Maxcapacity:	500j

Product Description

JBS-Y Series Digital Pendulum Low Temperature Impact Testing Machine cheap price

Application:

JBS-Y type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load. It's a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
Features:
3.1 Low temperature system uses refrigeration compressor technology to achieve uniformity of the sample auto-cooling, with the use of heat balance principle and cycle mixing method.
3.2 Which adopts singlechip control, this machine can auto-complete the following actions: rising pendulum, hanging pendulum, sending specimen, positioning, impacting,temperature conditioning
3.3 After impacting the specimen, the machine can raise pendulum with surplus energy automatically so as to be ready for the next test
3.4 Can display material impact absorption power, impact toughness, pendulum raising angle and test average value, and can print the test data and the average value of the test.

Main Technical Specifications:

Model	JBS-300Y		JBS-500Y
impact energy	150J	300J	250J	500J
Value of every grid	2J	1J	5J	2.5J
Moment of pendulum(N.m)	160.7695	80.3848	267.9492	133.9746
The distance between the pendulum shaft and impact point	750mm		850mm
Impact speed	5.2m/s		5.4 m/s
Pre-rising angle of the pendulum	150°
Specimen bearer span	40+0.2mm
Round angle of the jaw	R1-1.5mm
Round angle of impact edge	R2-2.5mm,R8±0.05(special order)mm
Angle accuracy	0.1°
Standard specimen dimension	10mm×10(7.5/5)mm×55mm
Thickness of impact knife	16mm
Dip angle of supporting surface of supports	11°
Cooling way	compressor
Capacity of sample box	20
Range of low temperature	0 --80°c
Precision of controlling temperature	fluctuation ±0.5°C grades 1°C
Speed of sending specimen	≤2S
Power supply	3phs, 380V, 50Hz Or 220V,60Hz
Dimensions (mm)	2200 ×1500×1900		2200 ×1500×1900
Net Weight (kg)	880		950

Standard Accessories

5.1 Main unit----------1 set
5.2 Pendulum

JB-300B	JB-500B
150J/300J--2 pcs	250J/500J--2 pcs

5.3 Span specimen plate (L = 40mm)----1 pc
5.4 Specimen centering plate (L = 40mm)(U, V)----1 pc
5.5 Stripping attachment----1 pc
5.6 Internal hexagonal wrench (S=30mm)---1 pc
5.7 Anchor bolts (M16x300mm)---4 pcs
5.8 Impact testing security guards----1 pc
5.9 Low temperature device---1 pc
5.10 Automatic sample sending and automatic positioning device---1 pc

Packing and shipping:

impact testing low temperature chamber (Compressor Cooling)

Computer control impact testing software for choice:

Impact testing machines in storage:

U V notch cutter:

FAQ:
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the  product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.  We can arrange engineer to train the operation of equipment to customer's company when you need.
products are widely recognized and trusted by users.
