DIN/ANSI Standard Cast/Ductile Iron Flange End Ball Valve with Reduced/Full Bore of Pn10/16/25 Class150/300/600
| Price: |
US $ 8-120/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
QFI01 |
| Body Material: |
Cast Iron(Gg25/Ggg40) |
| Bonnet Material: |
Cast Iron(Gg25/Ggg40) |
| Ball Material: |
SS304/SS316 |
| Seat Material: |
PTFE/Rptfe |
| Handle Material: |
Ductile Iron(Ggg40) |
| Certificate: |
Ce/ISO/Wras |
| Name: |
Full Bore/Reduced Bore |
| Standard: |
DIN/ANSI |
| Inspection And Test Standard: |
API 598/DIN3230/En12266/ ISO5208 |
| Flange Standard: |
ANSI 16.10/In3202/En558-1 |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Material: |
Cast Iron/Ductile Iron |
| Nominal Pressure: |
Pn16/Class150 |
Product Description

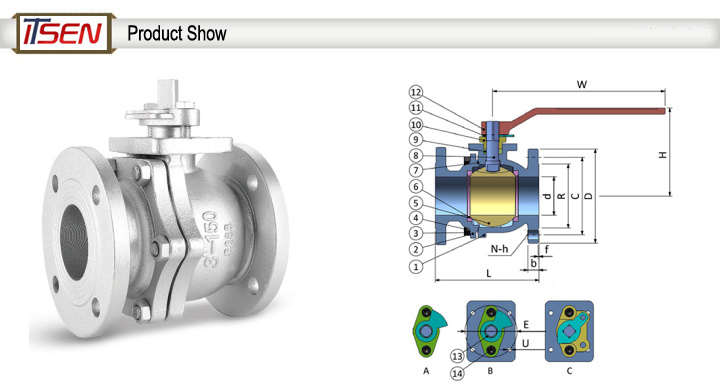

| ANSI Ball Valve | MATERIAL |
| Product name :ANSI Cast Iron Ball Valve | NO. | Part Name | Material |
| Product model :MPQ41F-150 | 1 | Body | Cast Iron(ASTM A126-B) |
| Product specification :1/2" ~ 12 " | 2 | Bonnet | Cast Iron(ASTM A126-B) |
| End flange size :ANSI 16.1 | 3 | Nut | Steel |
| Nominal pressure :150LB | 4 | Bolting | Steel |
Test :Shell Test 400psi (by water ) Seal Test 320psi (by water)
Seal Test 60~100psi(by air) | 5 | Ball | SS304/SS316 |
| Actuator mounting pad :ISO5211 | 6 | Seat | PTFE/RPTFE |
| Main material :A126-B | 7 | Gasket | PTFE/RPTFE |
| | 8 | Stem | SS304/SS316 |
| Design and manufacture :ANSI B16.34 | 9 | Stem Packing | PTFE/RPTFE |
| Major design standards :ANSI 16.34 | 10 | Gland Flange | Ductile Iron |
| Flange standard :ANSI 16.10 | 11 | Stop Collar | Steel |
| Structural length :ANSI 16.10 | 12 | Circlip | Steel |
| Inspection and test standard :API 598 | 13 | Handle | Ductile Iron |
| | 14 | Gland Bolt | Steel |
| DIMENSION |
| SIZE | d | L | D | C | R | b | N | h | f | W | H |
| 1/2" | 15 | 108 | 89 | 60.5 | 35 | 11.2 | 4 | 16 | 1.6 | 130 | 89 |
| 3/4" | 20 | 117 | 98.6 | 70 | 43 | 11.2 | 4 | 16 | 1.6 | 130 | 88 |
| 1" | 25 | 127 | 108 | 79.5 | 51 | 11.2 | 4 | 16 | 1.6 | 160 | 95 |
| 1 1/4" | 32 | 140 | 117 | 89 | 63.5 | 12.7 | 4 | 16 | 1.6 | 160 | 102 |
| 1 1/2" | 40 | 165 | 127 | 98.5 | 73 | 14.2 | 4 | 16 | 1.6 | 250 | 130 |
| 2" | 50 | 178 | 152.5 | 120.5 | 92 | 15.9 | 4 | 19 | 1.6 | 250 | 146 |
| 2 1/2" | 65 | 190 | 178 | 139.5 | 105 | 17.5 | 4 | 19 | 1.6 | 350 | 176 |
| 3" | 76 | 203 | 190.5 | 152.5 | 127 | 19.1 | 4 | 19 | 1.6 | 350 | 222 |
| 4" | 100 | 229 | 229 | 190.5 | 157 | 23.9 | 8 | 19 | 1.6 | 400 | 222 |
| 5" | 125 | 355.6 | 254 | 215.9 | 186 | 23.8 | 8 | 22 | 1.6 | 600 | 260 |
| 6" | 150 | 393.7 | 279.4 | 241.3 | 216 | 25.4 | 8 | 22 | 1.6 | 600 | 280 |
| 8" | 200 | 457.2 | 342.9 | 342.9 | 270 | 28.6 | 8 | 22 | 1.6 | 700 | 340 |
| 10" | 250 | 533.4 | 406.4 | 406.4 | 324 | 30.2 | 12 | 25 | 1.6 | 800 | 380 |

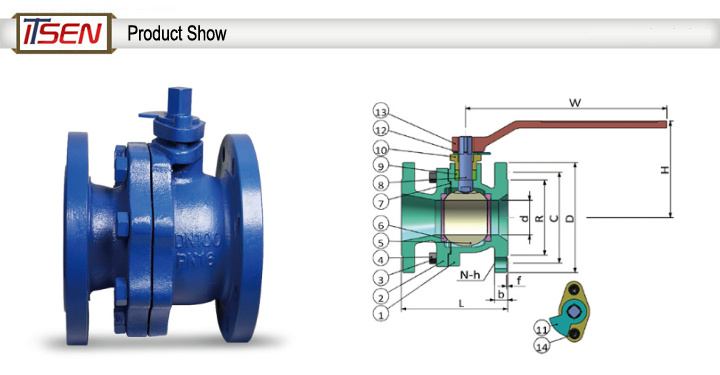

| Reduced DIN Ball Valve | MATERIAL |
| Product name :Reduced Port DIN Ball Valve | NO. | Part Name | Material |
| Product model :DSQ41F-16 | 1 | Body | Cast Iron(GG25/GGG40) |
| Product specification :2"~8" | 2 | Bonnet | Cast Iron(GG25/GGG40) |
| End flange size :EN 1092-2/ISO7005-2 | 3 | Nut | Steel |
| Nominal pressure :PN16 | 4 | Bolting | Steel |
| Test :Shell Test 3.1 mpa (by water ) | 5 | Ball | SS304/SS316 |
| Actuator mounting pad :NO | 6 | Seat | PTFE/RPTFE |
| Main material :Cast Iron | 7 | Gasket | PTFE/RPTFE |
| | 8 | Stem | SS304/SS316 |
| Design and manufacture :EN12516/DIN3357 | 9 | Stem Packing | PTFE/RPTFE |
| Major design standards :EN12516/DIN3357 | 10 | Gland Flange | Ductile Iron(GGG40) |
| Flange standard :DIN3202/EN558-1 | 11 | Stop Collar | Steel |
| Structural length :14/ F4 | 12 | Circlip | Steel |
| Inspection and test standard :EN1266 / ISO5208 /DIN3230 | 13 | Handle | Ductile Iron(GGG40) |
| | 14 | Gland Bolt | Steel |
| DIMENSION |
| SIZE | d | L | D | C | R | b | N | h | f | H | W |
| DN50 | 37 | 150 | 165 | 125 | 102 | 20 | 4 | 19 | 3 | 130 | 250 |
| DN65 | 49 | 170 | 185 | 145 | 122 | 20 | 4 | 19 | 3 | 145 | 250 |
| DN80 | 58 | 180 | 200 | 160 | 138 | 22 | 8 | 19 | 3 | 170 | 350 |
| DN100 | 75 | 190 | 220 | 180 | 158 | 24 | 8 | 19 | 3 | 180 | 350 |
| DN125 | 88 | 200 | 250 | 210 | 188 | 26 | 8 | 19 | 3 | 205 | 400 |
| DN150 | 98 | 210 | 285 | 240 | 212 | 26 | 8 | 22 | 3 | 225 | 400 |
| DN200 | 148 | 400 | 340 | 295 | 268 | 30 | 12 | 22 | 3 | 237 | 600 |

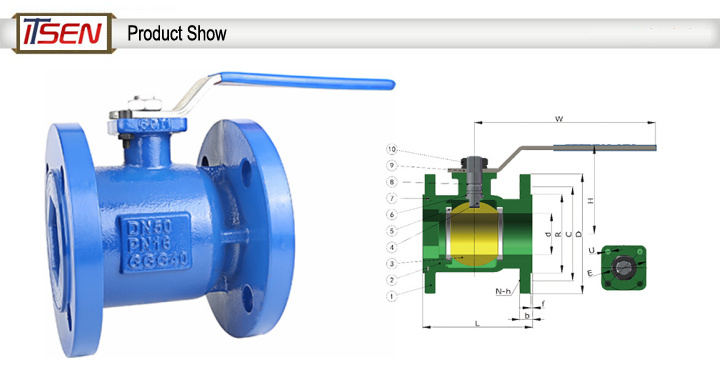

| DIN Ball Valve Full Bore | MATERIAL |
| Product name :Ductile Iron DIN Ball Valve | NO. | Part Name | Material |
| Product model :DFQ41F-16Q | 1 | Body | Ductile Iron(GGG40) |
| Product specification :DN15 ~ DN100 | 2 | Bonnet | Ductile Iron(GGG40) |
| End flange size : | 3 | Ball | SS304/SS316 |
| Nominal pressure :PN16 | 4 | Stem | SS304/SS316 |
| Stress test :Shell Test 2.4 Mpa (by water) Seal Test 0.6 Mpa ( by air) | 5 | Seat | PTFE |
| Actuator mounting pad :ISO5211 | 6 | Gasket | PTFE |
| Main material :GGG40/50 | 7 | Stem Washer | PTFE |
| Design and manufacture :DIN3357/EN12516 | 8 | O-ring | NBR/VITON |
| Major design standards :DIN3357/EN12516 | 9 | Handle | Steel |
| Flange standard :DIN3202/EN558-1 | 10 | Nut | Steel |
| Structural length :DN15-DN100 ( 14/F4) DN125-DN250(15/F5) | | | |
| Inspection and test standard:DIN3230/EN12266/ ISO5208 | | | |
| DIMENSION |
| SIZE | d | L | D | C | R | b | f | N | h | W | H |
| DN15 | 15 | 115 | 95 | 65 | 45 | 14 | 2 | 4 | 14 | 150 | 82 |
| DN20 | 20 | 120 | 105 | 75 | 58 | 16 | 2 | 4 | 14 | 150 | 86 |
| DN25 | 25 | 125 | 115 | 85 | 68 | 16 | 2 | 4 | 14 | 150 | 84 |
| DN32 | 32 | 130 | 140 | 100 | 78 | 18 | 2 | 4 | 19 | 250 | 99 |
| DN40 | 37 | 140 | 150 | 110 | 88 | 20 | 3 | 4 | 19 | 250 | 104 |
| DN50 | 46 | 150 | 165 | 125 | 102 | 20 | 3 | 4 | 19 | 250 | 113 |
| DN65 | 57 | 170 | 185 | 145 | 122 | 20 | 3 | 4 | 19 | 350 | 123 |
| DN80 | 73 | 180 | 200 | 160 | 138 | 22 | 3 | 8 | 19 | 350 | 123 |
| DN100 | 88 | 190 | 220 | 180 | 158 | 24 | 3 | 8 | 19 | 350 | 154 |
| DN125 | 100 | 325 | 250 | 210 | 188 | 26 | 3 | 8 | 19 | 500 | 207 |
| DN150 | 123 | 350 | 285 | 240 | 212 | 26 | 3 | 8 | 22 | 600 | 225 |
| DN200 | 148 | 400 | 340 | 295 | 268 | 30 | 3 | 12 | 22 | 600 | 237 |
Q. Do you provide samples?Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.
Q. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear
their own the cost.
Q. Can I request to change the form of packaging and transportation?
A: Yes, we can change the form of the packaging and transportation as per your request, but you have to bear their own costs incurred during this period and the spreads.
Q. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.Or it is 15-20 days if the goods are not in stock,it is according to your quantity.
Q C an I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
Q. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q. What is your payment terms?
A: Payment<=1000USD,100% in advance.
Payment>=1000USD,30% T/T in advance,banlance before shippment.
