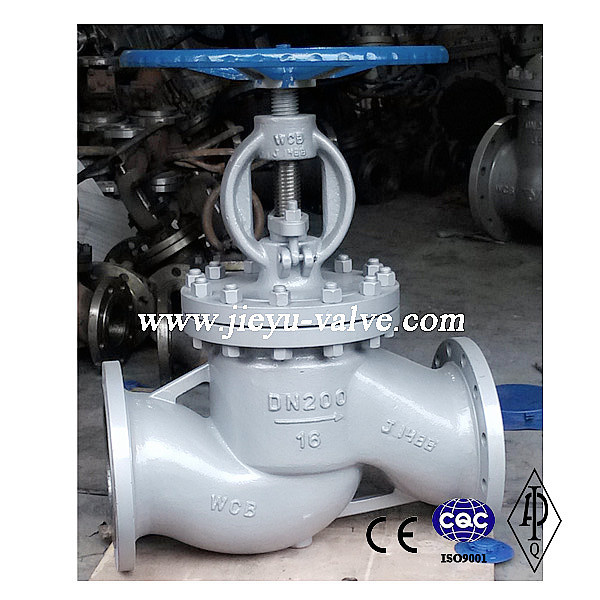

DIN Pn16/25/40/63/100/160 Carbon Steel Globe Valve

Name: DIN Pn16/25/40/63/100/160 Carbon Steel Globe Valve
Brand: tool-buy.com
SKU: 743806485
Availability: InStock
Rating: 4.3 (37 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Zhejiang Jieyu Valve Co., Ltd.

Showroom Product Company Profile

Prod Model:	J41H/J41W/J41Y/J541H/J541W/J541Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packaging Details:	Plywood or as The Customers' Requirement.
Delivery Detail:	Depend on The Quantity
Structure:	Through Way Globe Valve
Sealing Form:	Gland Packings Globe Valve
Stem Thread Position:	Outside Screw Stem Globe Valve
Standard:	GB
Application:	Plug Disc Type Globe Valve

Product Description

DIN PN16/25/40/63/100/160 carbon steel Globe Valve

Specification:

Size: DN15-DN1200

Model:J40H
Pressure: PN16-PN250
Material: 1.0619/GP240GH/GS-C25(WCB), 1.1156 (LCB), 1.7357 (WC6) ,1.7379/1.7382(WC9),1.7363 (C5), 1.7389 (C12), 1.4308(CF8), 1.4408(CF8M), 1.4552(CF8C).Etc

Type: Rising Stem Flange end RF/FTJ/FM

Operation: Handwheel, gear worm ,Electric operated

Standard:
Design & Manufacture Std.: DIN3352,BS 1873,Etc
Face to Face Std.: DIN 3202, BS2080 F1, F2,Etc
End Connection Std.: DIN2543-2548,Etc
Test Standard: ISO5208, BS 6755 DIN 3230,Etc

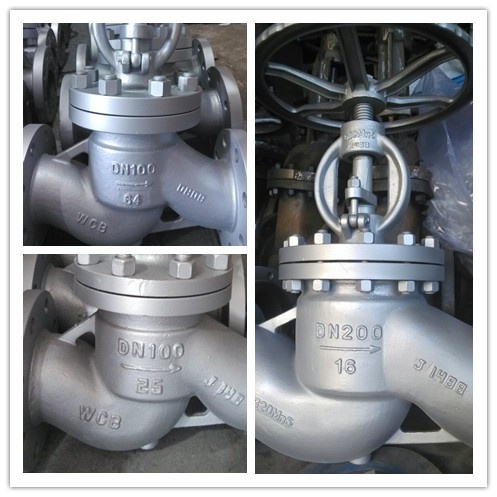

Products:

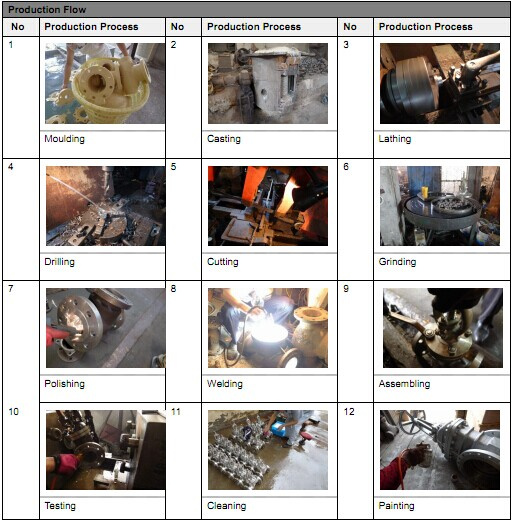

Production Flow :

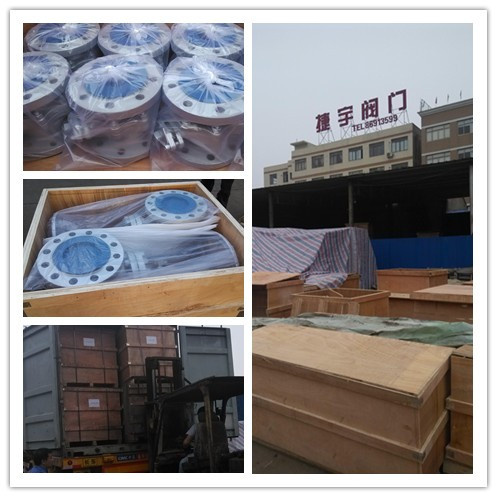

Packaging:

NO.	Part Name	Material
01	Body	ASTM A216WCB	GS-C25,CF8,CF8M
02	Seat Ring	ASTM A216+13Cr
03	Disc	ASTM A105+13Cr	A105,SS304,SS316
04	Split Ring	C.S
05	Disc Cover	C.S	25#,SS304,SS316
06	Stem	ASTM A182 F6a	13Cr,SS304,SS316
07	Gasket	304+Graphite	304+Graphite
08	Bonnet	ASTM A216WCB	A105,SS304,SS316
09	Stud	ASTM A193 B7
10	Nut	ASTM A194 2H
11	Backseat	ASTM A216+13Cr
12	Packing	Graphite	Graphite
13	Bushing	ASTM A216 F6a
14	Gland	ASTM A216WCB	Cu Alloy
15	Pin	C.S	13Cr,SS304,SS316
16	Gland Bolt	ASTM A193 B7
17	Gland Nut	ASTM A194 2H
18	Stem Nut	ZcuAl10Fe3
19	Screw	C.S
20	Handwheel	ASTM A395	C.S
21	H.W. Lock Nut	C.S	25#

Zhejiang Jieyu Valve Co., Ltd. is located in the City of Valves-Longwan Wenzhou. The company possesses high precision machinery and equipment over 70 sets and has more than 200 employees, 30 of whom are dedicated senior or middle technicians. With advanced testing equipment, complete detection method and sound CAD aided design system, the company sets in research, production, sale and after-sale service integration business.

JIEYU is one of China's top enterprises with kinds of certificates, such as API-6D certificate from American Petroleum Institute \CE certificate from EC Pressure Equipment Directive PED\ISO9001 International Quality Management System Certificate\Manufacture License of Special Equipment TS certificate and so on

JIEYU valves are grouped into the broad categories of gate, globe, check, ball valves, strainers and etc, All of products are manufactured to strict specifications and industry standards, which include ANSI, API, BS, DIN, JIS, GB and JB. JIEYU valves are broadly applied in the areas of power generation, chemical and petrochemical, oil and gas, metallurgy, ship-building, medicine, and environmental protection industries.

JIEYU's strategy is to win with top quality and reliable reputation, that is why we now have so many esteemed and faithful clients at home and abroad. We are working harder and harder to offer all of clients the best
