API ANSI 300lb Stainless Steel Flange Globe Valve

API ANSI 300lb Stainless Steel Flange Globe Valve
Price: US $ 10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: J41W/J41Y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packaging Details: Plywood or as The Customers' Requirement.
Delivery Detail: Depend on The Quantity
Structure: Through Way Globe Valve
Sealing Form: Gland Packings Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Standard: JIS
Application: Plug Disc Type Globe Valve

Product Description

API ANSI 300LB Stainless Steel Flange Globe Valve

Specification:

Size:1/2"-20"
Class:150LB-900LB

Material: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M.Etc
Type: Rising Stem Flange end RF/FTJ/FM
Operation: Handwheel, gear worm ,Electric operated


Standard:
Design and Manufactured: ANSI B16.34,BS1873
Face to face dimension:ANSI B16.34
Pressure-tempertature rating:ANSI B16.34
Pressure test:API598.

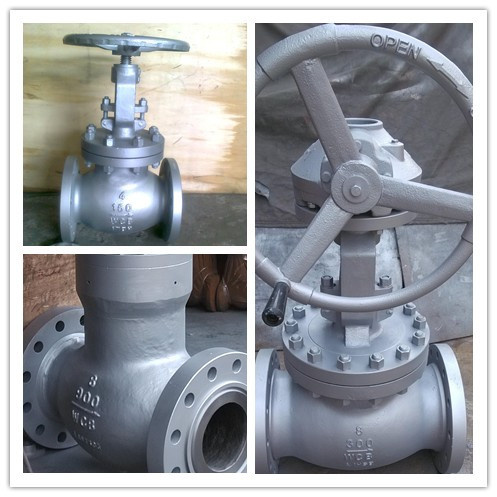

Products:

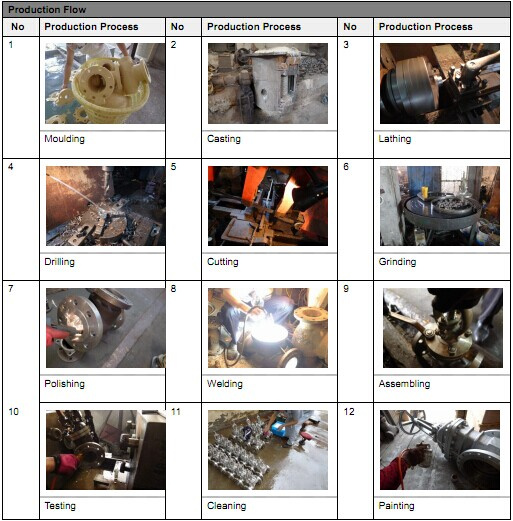

Production Flow :

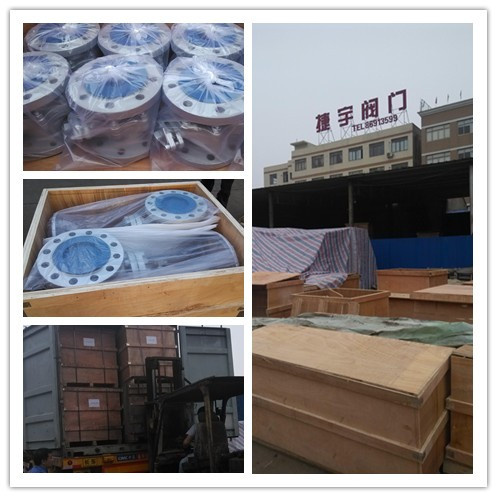

Packaging:


NO.Part NameMaterial
01BodyASTM A216WCBASTM A351 CF8ASTM A351 CF8M
02Seat RingASTM A216+13CrASTM A351 CF8ASTM A351 CF8M
03DiscASTM A105+13CrASTM A182 F304ASTM A182 F316
04Split RingC.SS.S316S.S
05Disc CoverC.SS.S316S.S
06StemASTM A182 F6aASTM A182 F304ASTM A182 F316
07Gasket304+Graphite304+Graphite316+Graphite
08BonnetASTM A216WCBASTM A351 CF8ASTM A351 CF8M
09StudASTM A193 B7ASTM A193-B8ASTM A193-B8M
10NutASTM A194 2HASTM A194-8ASTM A194-8M
11BackseatASTM A216+13CrASTM A351 CF8ASTM A351 CF8M
12PackingGraphiteGraphiteGraphite
13BushingASTM A216 F6aS.SS.S
14GlandASTM A216WCBASTM A351 CF8ASTM A351 CF8M
15PinC.SS.SS.S
16Gland BoltASTM A193 B7ASTM A193-B8ASTM A193-B8M
17Gland NutASTM A194 2HASTM A194-8ASTM A194-8M
18Stem NutZcuAl10Fe3 ZcuAl10Fe3 ZcuAl10Fe3
19ScrewC.SS.S304S.S
20Handwheel ASTM A395ASTM A395ASTM A395
21H.W. Lock NutC.SS.SS.S
Zhejiang Jieyu Valve Co., Ltd. is located in the City of Valves-Longwan Wenzhou. The company possesses high precision machinery and equipment over 70 sets and has more than 200 employees, 30 of whom are dedicated senior or middle technicians. With advanced testing equipment, complete detection method and sound CAD aided design system, the company sets in research, production, sale and after-sale service integration business.

JIEYU is one of China's top enterprises with kinds of certificates, such as API-6D certificate from American Petroleum Institute \CE certificate from EC Pressure Equipment Directive PED\ISO9001 International Quality Management System Certificate\Manufacture License of Special Equipment TS certificate and so on

JIEYU valves are grouped into the broad categories of gate, globe, check, ball valves, strainers and etc, All of products are manufactured to strict specifications and industry standards, which include ANSI, API, BS, DIN, JIS, GB and JB. JIEYU valves are broadly applied in the areas of power generation, chemical and petrochemical, oil and gas, metallurgy, ship-building, medicine, and environmental protection industries.

JIEYU's strategy is to win with top quality and reliable reputation, that is why we now have so many esteemed and faithful clients at home and abroad. We are working harder and harder to offer all of clients the best
