DIN741 Wire Rope Clip for Electric Power Fitting
Price: |
Negotiable/Piece |
Min Order: |
1000/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
DIN741 |
Mateial: |
Stainless Steel 304,or 316 |
Surface Finishing: |
Elec Galvinized,Hot Dipped Galvinized |
Delivery Time: |
25-30days After The Advanced Payment |
Range: |
Marine, Construction,Electric,Agriculture |
Product Description

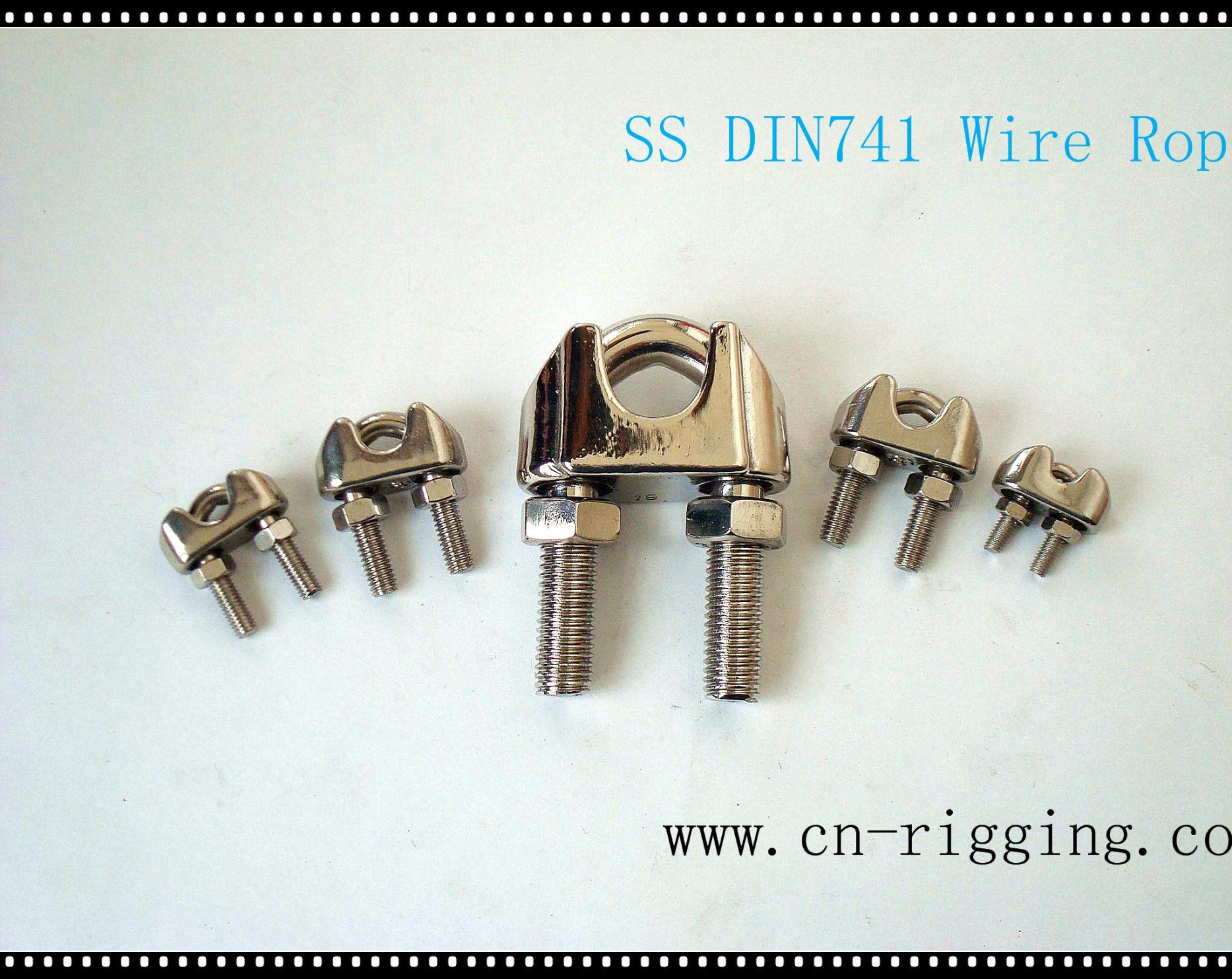

DIN741 Wire Rope Clip
SIZE | A | B | C | D | E | F | G |
M3 | 9 | 10 | 12 | 4 | 10 | 21 | 16 |
M5 | 11 | 11 | 13 | 5 | 10 | 23 | 19 |
M6 | 13 | 12 | 15 | 5 | 11 | 26 | 23 |
M8 | 16 | 14 | 19 | 6 | 15 | 30 | 28 |
M10 | 19 | 18 | 22 | 8 | 17 | 34 | 34 |
M11 | 20 | 19 | 22 | 8 | 18 | 36 | 36 |
M13 | 24 | 23 | 30 | 10 | 21 | 40 | 45 |
M14 | 25 | 23 | 30 | 10 | 22 | 44 | 47 |
M16 | 29 | 26 | 33 | 12 | 26 | 50 | 51 |
M19 | 32 | 29 | 38 | 12 | 30 | 54 | 63 |
M22 | 37 | 33 | 44 | 14 | 34 | 61 | 71 |
M26 | 41 | 35 | 45 | 14 | 37 | 65 | 81 |
M30 | 46 | 37 | 50 | 16 | 43 | 74 | 94 |
M34 | 52 | 42 | 55 | 16 | 50 | 80 | 104 |
M40 | 58 | 45 | 60 | 16 | 55 | 88 | 124 |

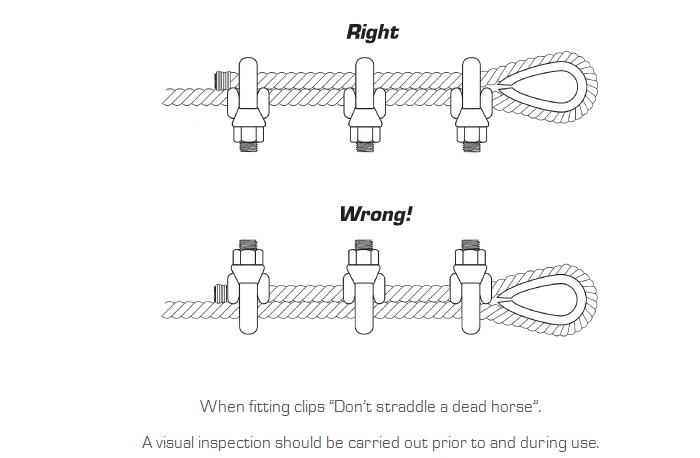

Safty:
Qingdao Sincere Metal Products CO. Ltd is located in the Qingdao City, China, which formerly known as "Qingdao Sincere Trading Co., Ltd". Our company possesses the advantaged position on the verge of Qingdao, Shanghai, and Tianjin Ports.
Qingdao Sincere Metal Products CO. Ltd is meanly engaged in the best quality of rigging hardware, lifting accessories and auto-parts, such as turnbuckles, hooks, wire rope clips, shackles, eye bolts, eye nuts, bearings and so on. The products were delivered to all over the world including European, America, Korea, Australia, the Middle East and Southeast Asia. We are always trying the best to supply you the most competitive price, the best quality and service.
Our basic business guide line is "Thinking, Enterprising, Cooperation, and Innovation". All of the employees are knowledgeably, sincerely, active college graduate men. If you have the inquiry within our scope, we would like to try our best to get the best price for you.
Welcome the friends worldwide to visit our company and make business negotiations.
