| Prod Model: |
M5-M33 |
| Material: |
Stainless Steel |
| Type: |
Hexagon Head |
| Connection: |
Common Bolt |
| Head Style: |
Hexagonal |
| Standard: |
GB |
| Finish: |
Passivation |
Product Description

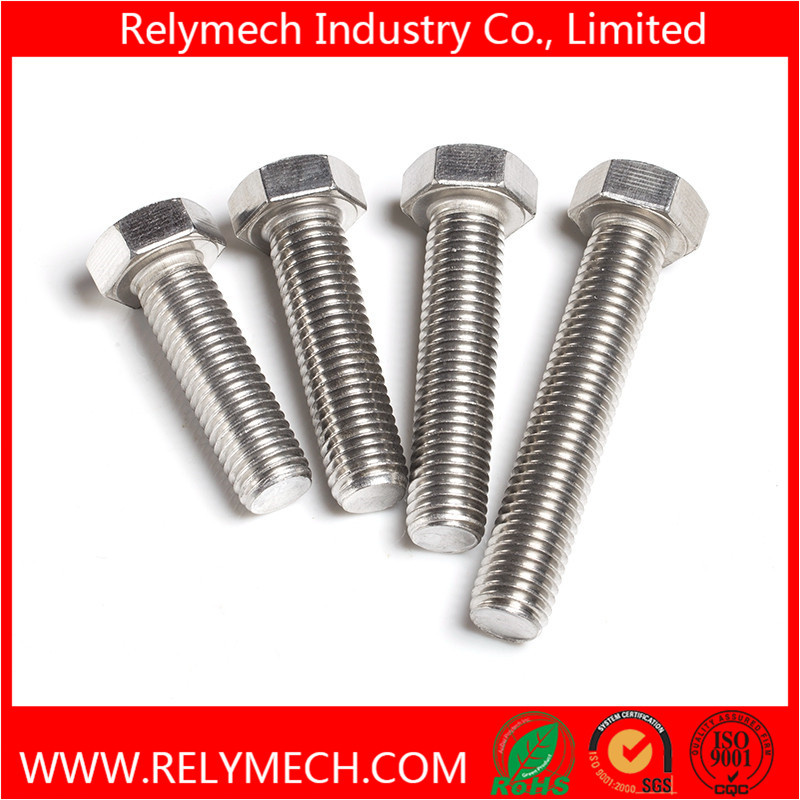

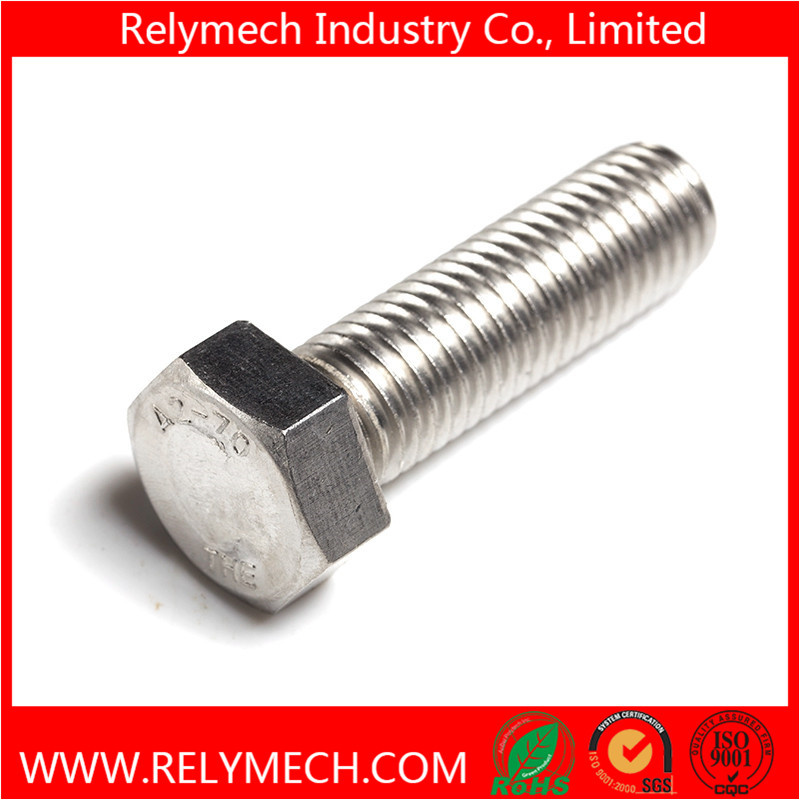

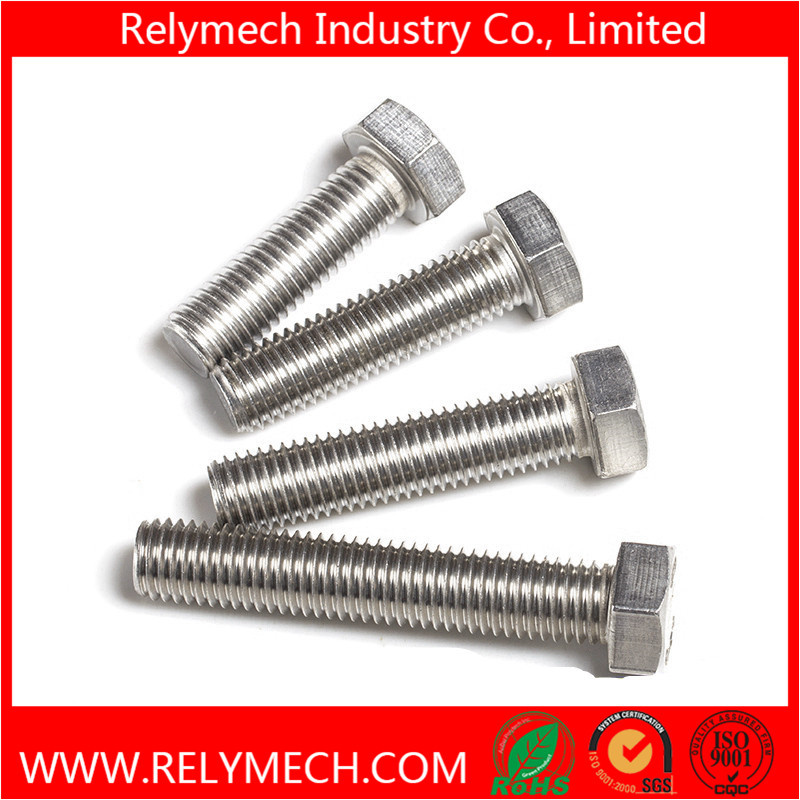

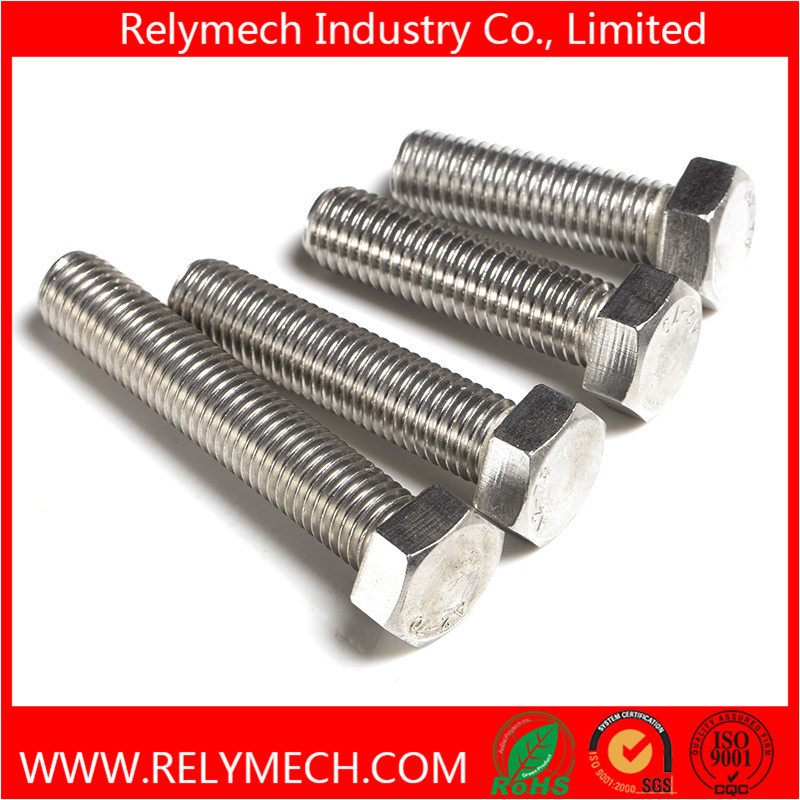

DIN933 Stainless steel Hex head bolt machine screw M5-M33 Product name: Hex bolt/ Hex head bolt
Standard:DIN933
Material: SUS304
Head type: Hex head
Diameter size:M5-M33
Length: 8mm to 200mm

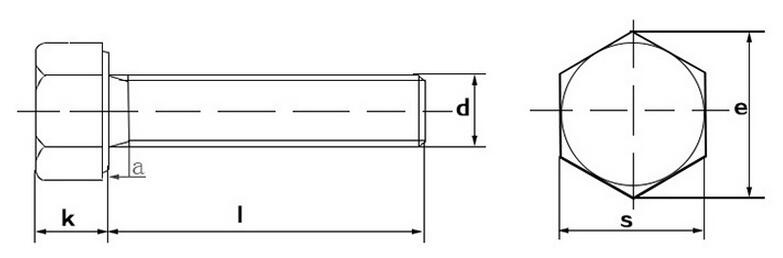

| d | P | a | e min | k | s |
| max | min | a | b |
| M5 | 0.8 | 2.4 | 0.8 | 8.79 | 8.63 | 3.5 | 8 |
| M6 | 1 | 3 | 1 | 11.05 | 10.89 | 4 | 10 |
| M8 | 1.25 | 4 | 1.25 | 14.38 | 14.2 | 5.3 | 13 |
| M10 | 1.5 | 4.5 | 1.5 | 17.77 | 17.59 | 6.4 | 16 |
| M14 | 1.75 | 5.3 | 1.75 | 20.03 | 19.85 | 7.5 | 18 |
| M16 | 2 | 6 | 2 | 23.36 | 22.78 | 8.8 | 21 |
| M18 | 2 | 6 | 2 | 26.75 | 26.17 | 10 | 24 |
| M20 | 2.5 | 7.5 | 2.5 | 30.14 | 29.56 | 11.5 | 27 |
| M22 | 2.5 | 7.5 | 2.5 | 33.53 | 32.95 | 12.5 | 30 |
| M24 | 2.5 | 7.5 | 2.5 | 37.72 | 37.29 | 14 | 34 |
| M27 | 3 | 9 | 3 | 39.98 | 39.55 | 15 | 36 |
| M30 | 3 | 9 | 3 | | 45.2 | 17 | 41 |
| M33 | 3.5 | 10.5 | 3.5 | | 50.85 | 18.7 | 46 |
| | 3.5 | 10.5 | 3.5 | | 55.37 | 21 | 50 |
The above parameters for your reference.
Please inform the the model and length when you send the inquiry, like M6*60, thank you!
