| Prod Model: |
M2-M8 |
| Material: |
Stainless Steel |
| Type: |
Countersunk Head |
| Connection: |
Common Bolt |
| Standard: |
GB |
| Grade: |
4.8 |
| Groove: |
Plum Flower |
| Head Style: |
Plum Flower Countersunk Head |
Product Description

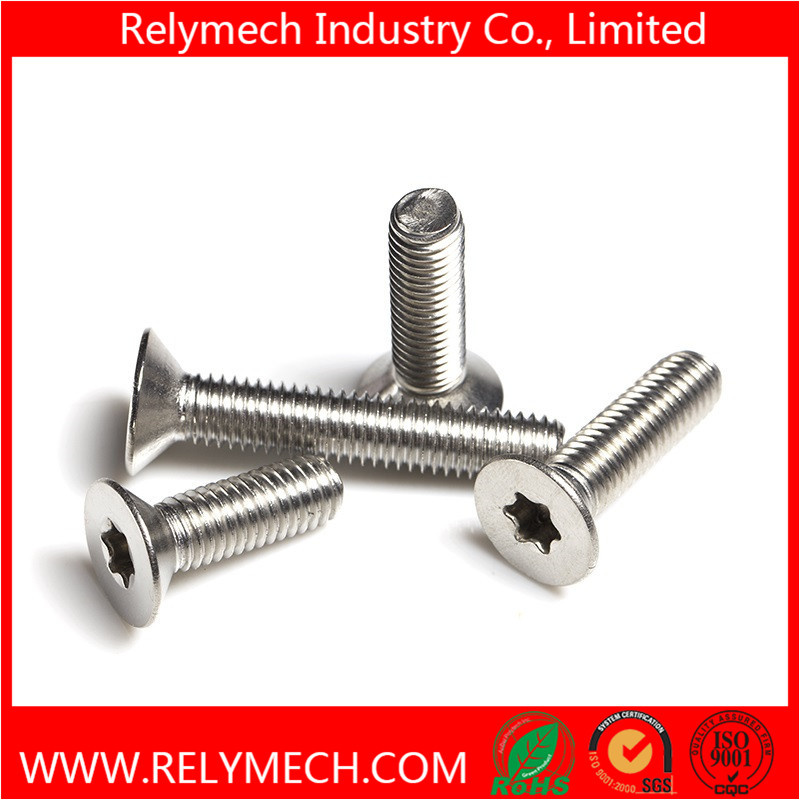

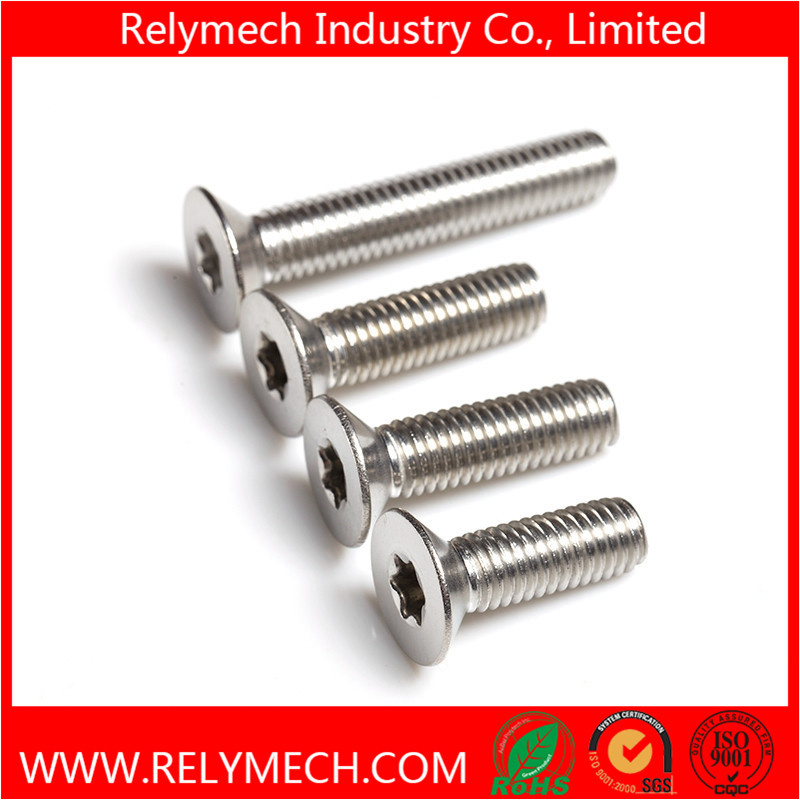

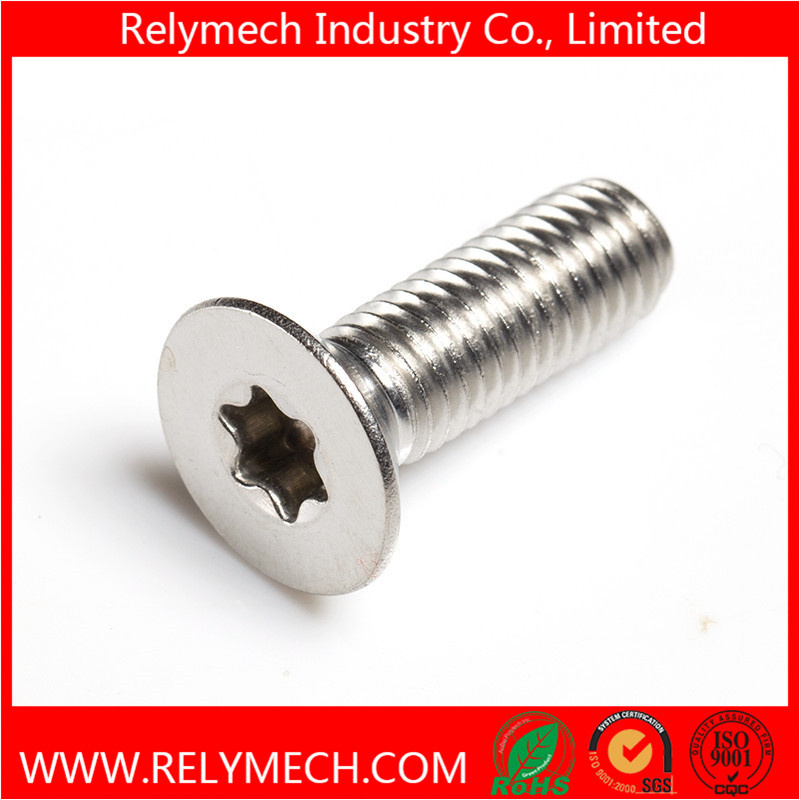

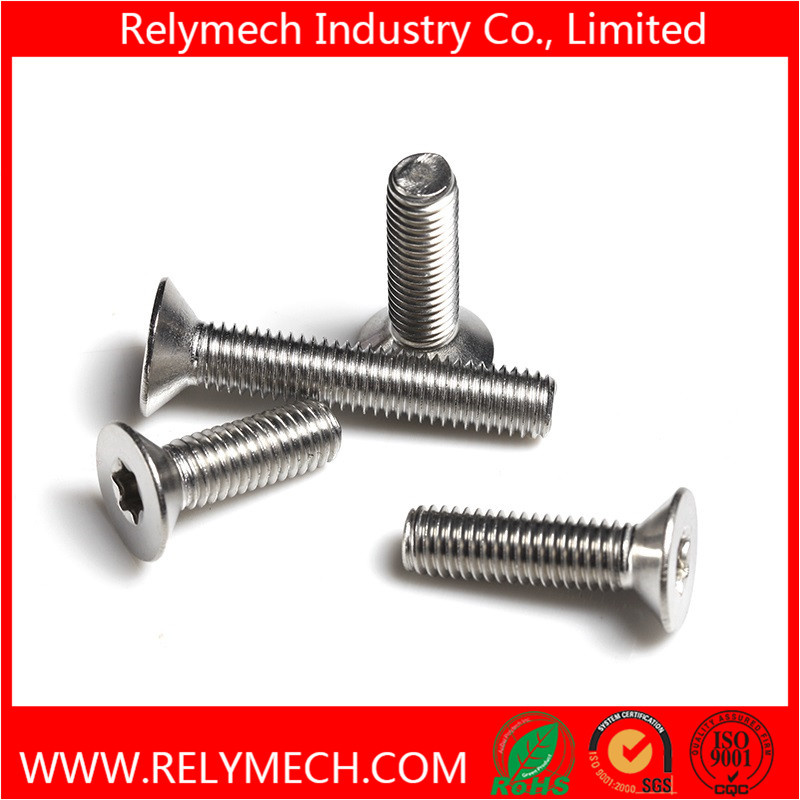

Countersunk Plum flower head machine screw in stainless steel 304 Product name: Countersunk Plum flower head machine screw
Standard: DIN,GB
Material: SUS304
Head type: Countersunk plum flower head
Diameter size:M2-M8
Length: 3mm to 50mm
Application: machinery

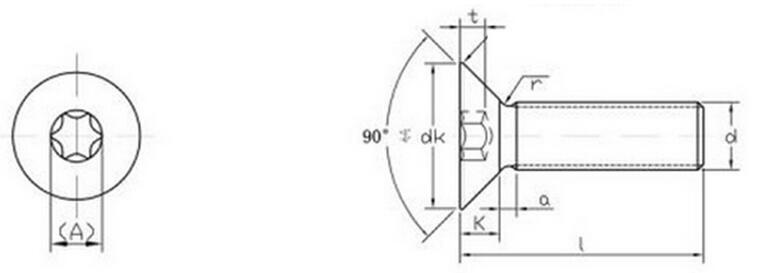

| Unit:mm |
| Model | M2 | M2.5 | M3 | M4 | M5 | M6 |
| p | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 |
| dk | 3.5-3.8 | 4.4-4.7 | 5.2-5.5 | 8.04-8.4 | 8.94-9.3 | 10.9-11.3 |
| k max | 1.2 | 1.5 | 1.65 | 2.7 | 2.7 | 3.3 |
| Slot | T6 | T8 | T10 | T20 | T25 | T30 |
| t | 0.6-0.78 | 0.7-0.95 | 0.9-1.1 | 1.1-1.45 | 1.3-1.7 | 1.4-1.8 |
| d | 1.89-1.98 | 2.38-2.48 | 2.87-2.98 | 3.84-3.98 | 4.83-4.97 | 5.82-5.97 |
The above parameters for your reference.
Please inform the the model and length when you send the inquiry, like M2*5, thank you!
