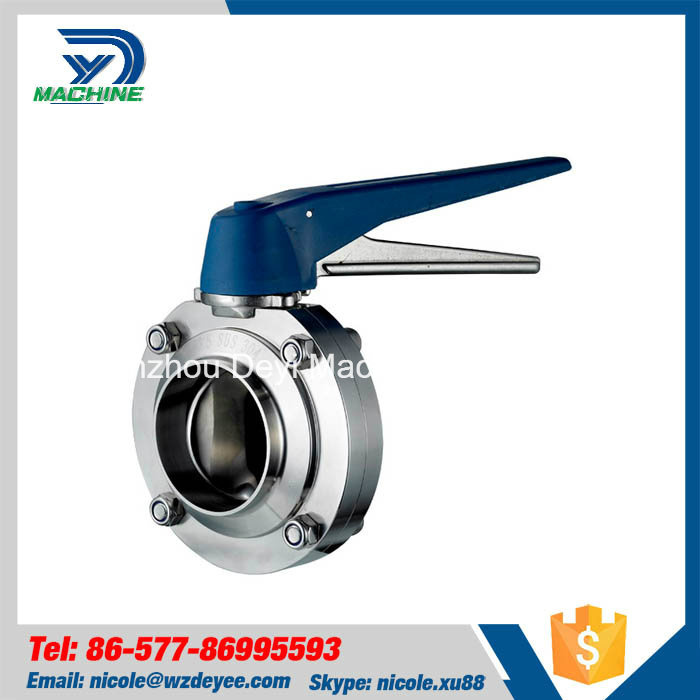

Dn20 DIN11850 AISI304 Sanitary Welded Butterfly Valve with CNC Machine
| Price: |
US $ 10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DY-BFV-W |
| Connection Standard: |
DIN, 3A, SMS, Rjt, ISO |
| Flow Medium Parts: |
304, 304L, 316, 316L (1.4301, 1. |
| Port Size: |
Dn10-150 or 1/2"-150 |

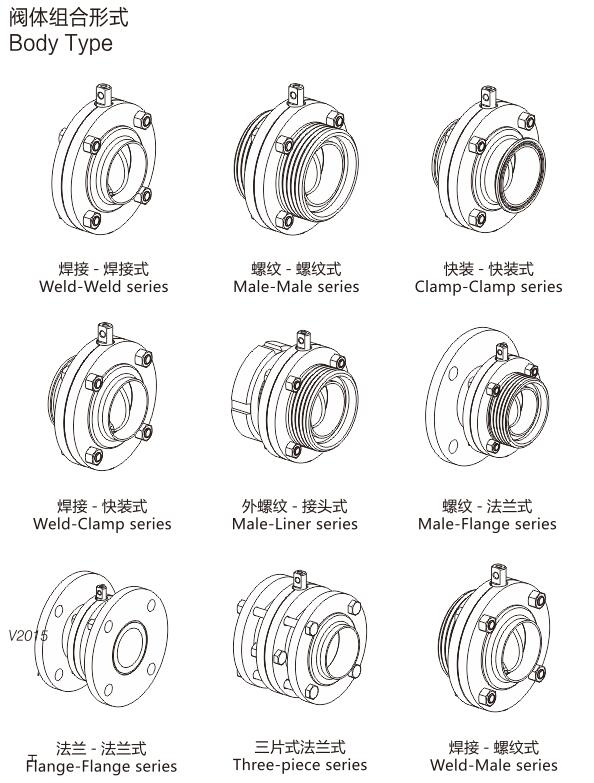

| Way Of Connection: |
Weld, Male, Clamp, Flange |
| Gasket: |
Silicone, EPDM, Viton, NBR, PTFE |
| Kinds Of Handle: |
Pull Handle, Gripper Hanle/Fiber |
| Temperature Range: |
-20 Degree Celsius to 120 Degre |
| Processing Machine: |
Forge Processing, Advance CNC |
| Pressure Range: |
8bar-10bar |
| Working Principle: |
Remote-Controlled Operation by |
| Connection Form: |
Welding |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Working Temperature: |
Medium Temperature (',120??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Household Usage |
Product Description
Dn20 DIN11850 AISI304 Sanitary Welded Butterfly Valve
ApplicationIt is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.Techncal Parameter| Standard | DIN,3A,SMS,RJT |
| Flow Medium Parts | 304,304L,316L(1.4301,1.4307,1.4404) |
| Port Size | Dn10-150 or 1/2"-150 |
| Way of Connection | Weld,Male,Clamp,Flange |
| Gasket for butterfly valve | Silicone, EPDM, Viton, NBR |
| Application | It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc |
| Working principle | Remote-controlled operation by the driving gear or manual operation by handle. |
| Three drive forms |
Normally closed, normally opened and opened and closed by two air flues seperately. |
| Handle | Metal handle, reinforced nylon handle |
| Adjustable handle, built to order according to users' request. |
| Advantage | 1.Sanitary condition passed FDA Certification |
| 2.with strong resistance to acid, alkali and high temperature |
| 3.Slight deformation under long-term compression presicion forging valve cartridge. Withstand voltages |
| 4.Appearance desigh: Keep pace with international latest designs |
| 5.Service life: Comparable to imported butterfly valve, with 18months warrenty for normal use |
