| Prod Model: |
DY-BV3PC-C |
| Connection Standard: |
DIN, 3A, SMS, Rjt, ISO |
| Flow Medium Parts: |
304, 304L, 316, 316L |
| Way Of Connection: |
Weld, Male, Clamp, Flange |
| Seat Material: |
Silicone, Viton, NBR, PTFE |
| Temperature Range: |
-20 Degree Celsius to 120 Degre |
| Working Principle: |
Manual Operation or Driving Device Operation |
| Flow Pattern: |
Straight |
| Working Pressure: |
8bar, 0.08MPa |
| Material: |
Stainless Steel |
| Channel: |
Straight Through Type |
| Structure: |
Flexible Ball Valve |
| Type: |
Flexible Ball Valve |
| Application: |
Household Usage |
| Nominal Pressure: |
0-10bar, 0-0.1MPa |
Product Description

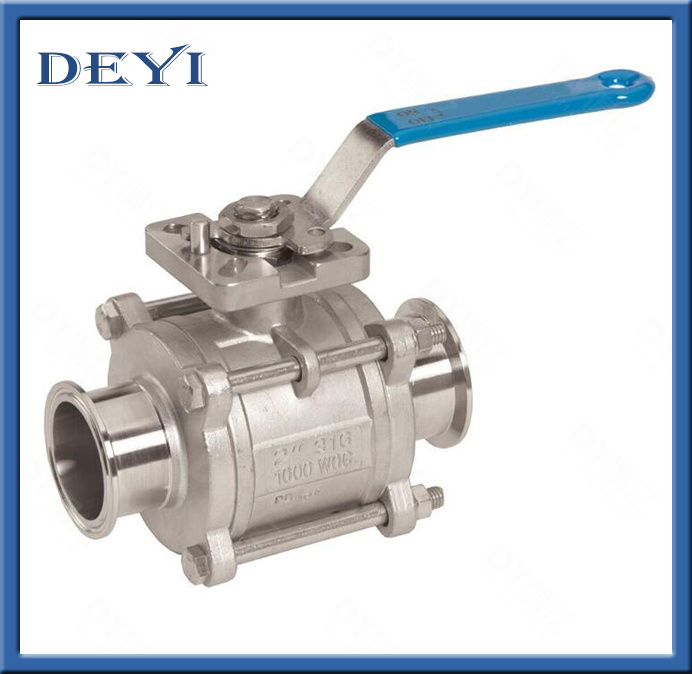

Sanitary Stainless Steel Non Dead Angle Ball ValveApplicationSanitary Stainless Steel Ball Valves is widely applied to pipeline and equipment control. It is widely used in brewing Industry, diary and so on.
Techncal Parameter| Material | AISI304 AISI316L |
| Specification | DN25-100 & 1"-4" |
| Standard | ISO, DIN, 3A,SMS etc |
| Connection | Welding, Tri Clamp, Threaded, Flange |
| Working Principal | manual operation or driving device operation |
| Flow pattern | straight |
| Seat material | PTFE, PCTFE, PEEK or upon your request |
| Orifice size | 2mm to 4.8mm |
| Body construction | 3-piece precision cast body |
| Temperature | -20degree celsius~135degree celsius |
Response
Only if they have a cavity-filled seal (encapsulated seal) or available ports for cleaning with CIP/SIP.The common ball valve has a dead space between the ball and valve body and the product can get trapped in this dead space of the valve and bacterial growth could be possible.

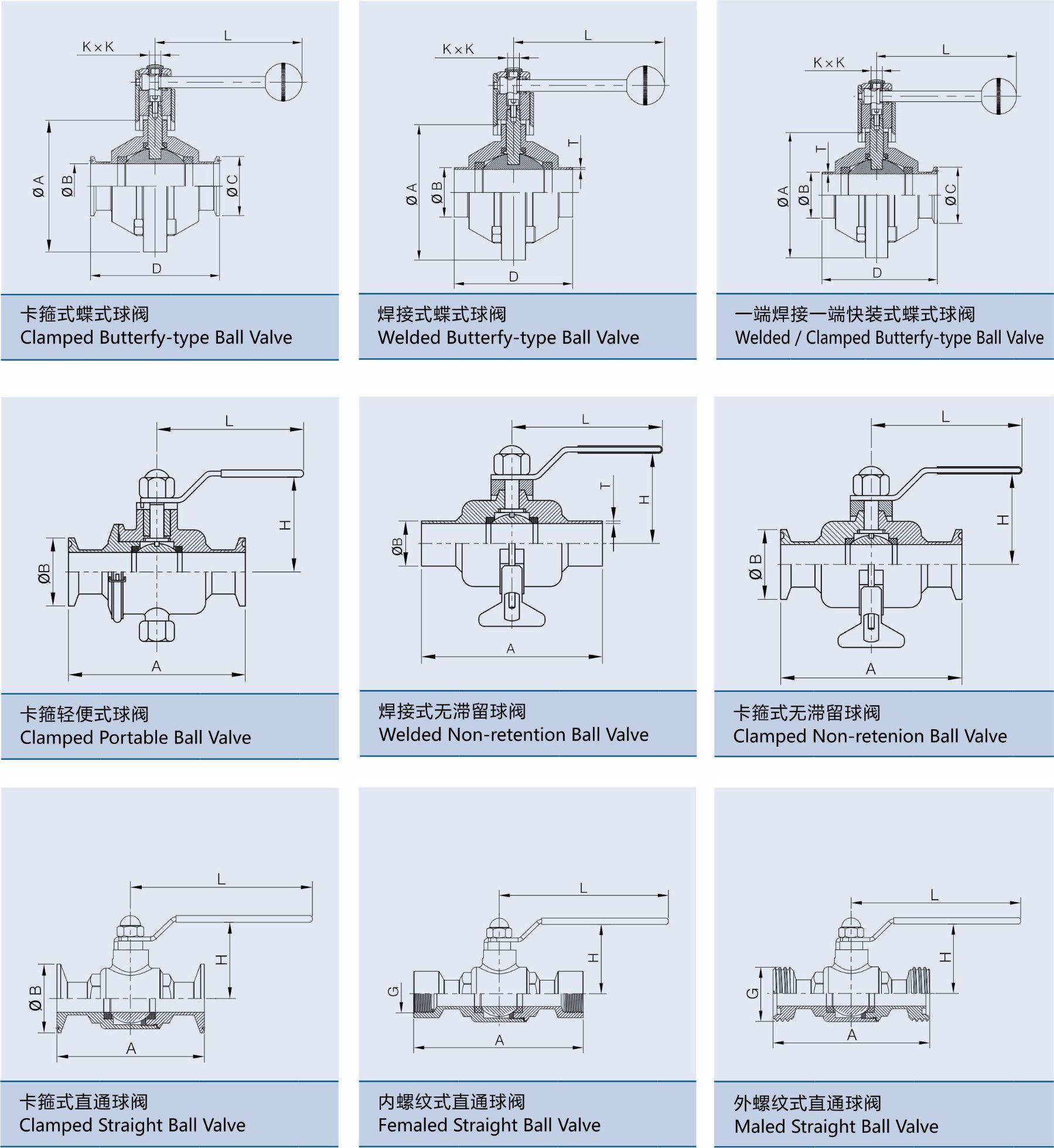

Drawing

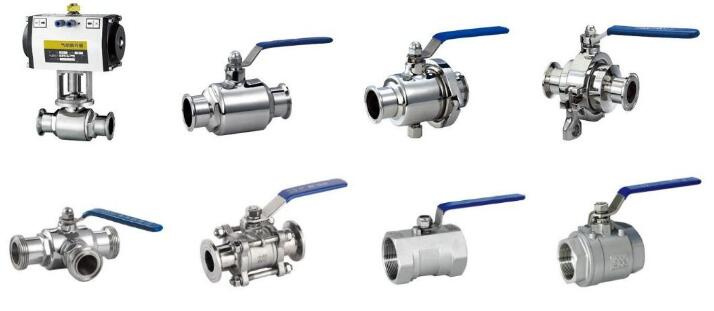

Photos
Packing & Shipping Information Port: Shanghai Port or Ningbo Port,China
MOQ: 5piece
Supply ability: 5,000 pieces/month
Payment terms: T/T,Western Union, Paypal, L/C
Packaging:Shrink Wrap-Carton Case-Exporting Plywood Case
Delivery time:Depends on quantity
Shipping mode:By sea,by air,by express
Our Service| 1. Samples: Buyer bear the air fee, but this fee will be reduced from order directly |
| 2. Delivery: Never delay delivery time |
| 3. Ensure material pure |
| 4. After Sales: Please contact our After-sales service department in time within 30days after you received the cargo. Tel: 0086-0577-86995593,Working Time: 9:00 a.m.- 6:00 p.m. (Beijing time) |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Slight problem | Please send the proof to our After-Sales Department, we will reply within two days. |
Serious problem
| a. We will dispatch our Quality and Problems Appraisers to make a confirmation |
| b. Have a negotiation of the compensation and sign agreements |
| c. Our After-Sales Department will perform the duties as the agreements |
| Replacement | Free replacement if there is any quality problem |
