| Prod Model: |
HTC9R |
| Color: |
Brown |
| Spring: |
with |
| Metal Case: |
with |
| Hardness: |
75±5 Shore a |
| Temperature: |
150ºC |
| Material: |
FPM |
| Usage: |
Engine |
| Standard: |
Standard |
Product Description

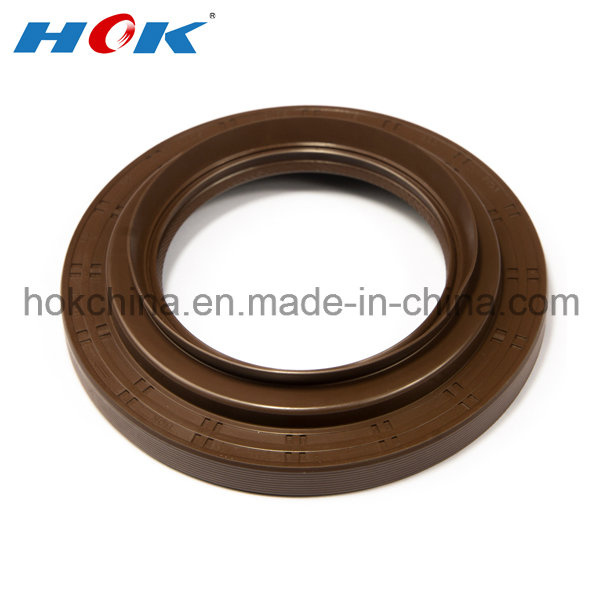

Oil Seal Specification| Item Name | Oil Seal |
| Number | 5010573A0 |
| Size | 105*135*14/20 |
| Type | HTC9R |
| Material | FPM |
| Hardness | 75 ± 5 |
| Color | Brown |
| Metal Case Material | Carbon Steel |
| Spring Material | Carbon Steel 65Mn |
| Application | Wheel |
| Packing | Plastic Bag-- Export Carton |
Oil Seal Size List| HOK No. | Size | Type |
| 5020039A0 | 4*7.1*2.5 | XKD |
| 5020162A0 | 4*10*4 | |
| 5010382A0 | 5*10*4 | WD |
| 5010491A0 | 6*10*2.5 | SC |
| 5010351A0 | 6*11*4 | VC |
| 5010063A0 | 6*11*4 | |
| 5010218A0 | 6*11*4 | |
| 5010293B0 | 6*12*4 | VC |
| 5020035A0 | 6*13*5 | XKD |
| 5010587A0 | 7.5*14*4 | WD |
| 5010262A0 | 8*14*2 | FB |
| 5010251A0 | 8*14*2.5 | FB |
| 5010262B0 | 8*14*3 | FB |
| 5010008A0 | 8*14*4 | WD |
| 5010456A0 | 8*14*4.5 | TC |
| 5020156A0 | 8*14*4.5 | |
| 5010455A0 | 8*14*9 | |
| 5020157A0 | 8*14*18 | |
| 5020062A0 | 8*16*4 | |
| 5010350A0 | 8*16*5 | TC |
| 5020037A0 | 8*16*6 | XKD |
| 5010437A0 | 8*16*7 | B |
| 5020019B0 | 8*16*8 | |
| 5020019A0 | 8*16*8 | |
| 5010261A0 | 8*18*5 | TC |
| 5010417A0 | 8*18*7 | TC4 |
| 5020001A0 | 8*18*10/17 | |
| 5020063A0 | 8*20*6 | |
| 5020018A0 | 8*22*10 | |
| 5020064A0 | 9*23*7.5 | |
| 5010672A0 | 9.2*14.7*2.8 | |
| 5020150A0 | 9.9*19*5.2 | |
| 5020108A0 | 10*14*2.8 | |
| 5020155A0 | 10*16*4 | |
| 5010378A0 | 10*16*4 | TC |
| 5020010A0 | 10*16*4/5.5 | KC4Y |
| 5020011B0 | 10*16*5 | ROY |
| 5010379A0 | 10*19*4 | TC |
| 5010671A0 | 10*19*7 | TC |
| 5020061A0 | 10*20*4 | |
| 5010410A0 | 10*20*5 | TC |
| 5020036A0 | 10*20*6 | |
| 5020105A0 | 10*20*8.3/9.5 | RS |
| 5020021A0 | 10*21*10 | DCY |
| 5010357A0 | 10*22*4 | B |
| 5010789A0 | 10*22*5 | TC |
| 5020020B0 | 10*22*11 | |
| 5020006A0 | 10*28*13.4 | TC4 |
| 5020093A0 | 10*30*8.5 | |
HOK has more than one thousand different sizes oil seals, details please contact me.

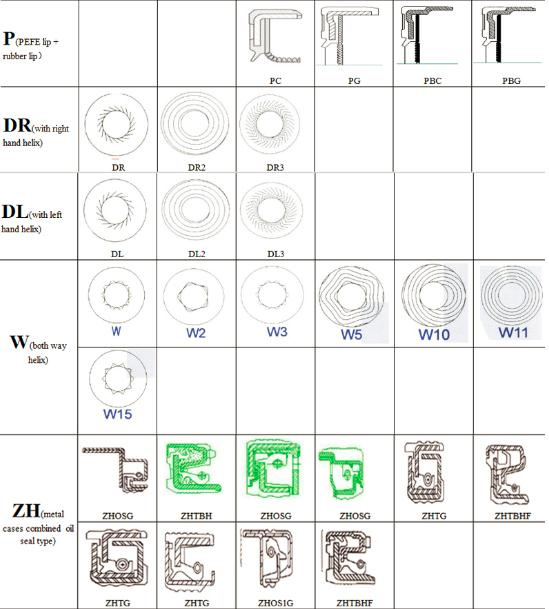

Oil Seal Main TypesOil Seal Used In Engine: DR, DL, TG, TGW, TC etc.
Oil Seal Used In Wheel: TC, TB, SB, SC, TA, SA, TG, SG, TGW, combined type and so on.
Oil Seal Used In Electric tool: TC, TB, SB etc.
Oil Seal Used In Agricultural vehicle: Special type as customers' reuqirement
Oil Seal Used In Construction Machinery: SIBC, TZDL, TA, TC etc.
Oil Seal Main ApplicationsDiesel and Gasoline Engine Like Crankshaft and Camshaft
Rotational System of Vehicle Like Gear Box,Wheel Hub, Axle, Pumps, Gas Sring, Shock Absorber
Rotational system of Farm and Construction Machinery like Forklift, Excavator
Industrial Gear Box
Daily Washing Machine
Mechanical Engineering and Equipment Processing Industry

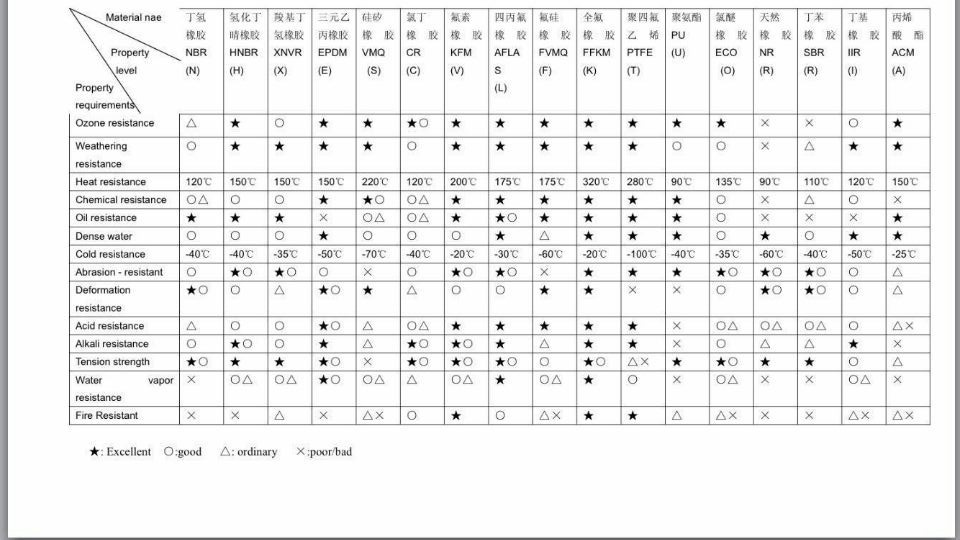

Oil Seal Main Materials and Features
HOK Oil Seal AdvantagesProfessinal Oil Seal Manufacturer since 2009, Hundreds of Different Structures
Lots of Advanced Automatic Machines, More Effiencicy
More Than 20 Test Equipments In Our Own Lab, Keep Quality Good and Stable
Professinal Engineering Team Comes from NOK, Design According to Customer Demands
Different Rubber Material Used for Different Requirement
Hundreds of Different Oil Seal Sizes In Stock
Main Products Oil Seal, Valve Stem Seal, O Ring, Rubber Molded Parts, Rubber Shock Absorder, Dust Cover

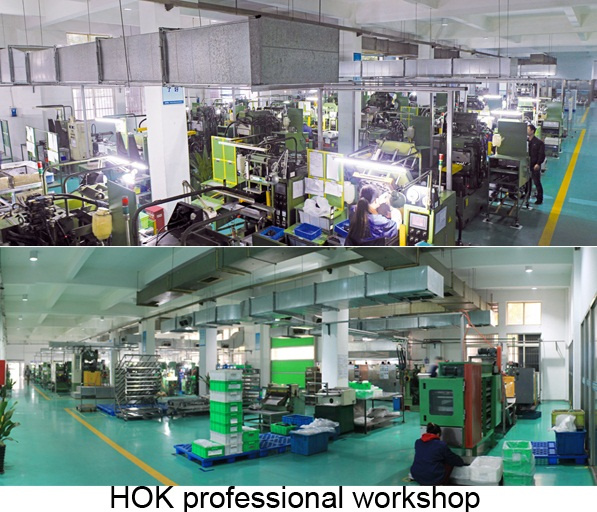

HOK Company Show

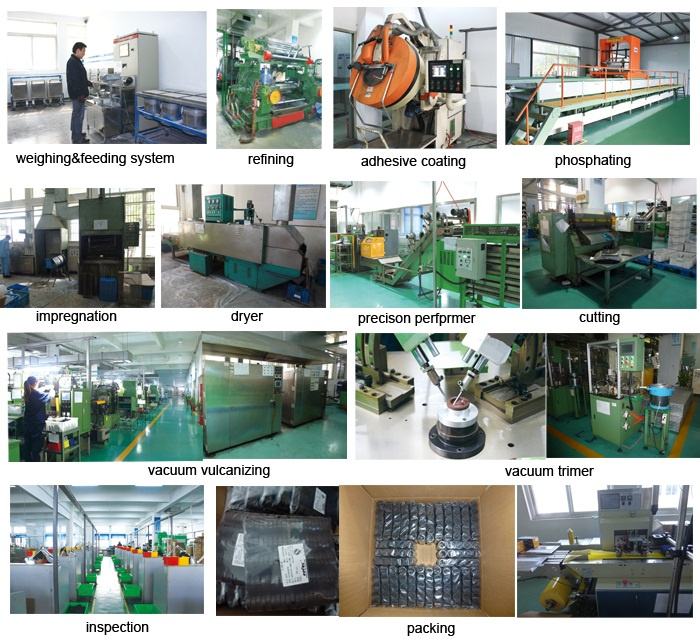

ADVANCED PRODUCING MACHINES AND TEST EQUIPMENT
