| Prod Model: |
TCFY |
| Color: |
Black |
| Spring: |
Without |
| Metal Case: |
with |
| Hardness: |
75±5 Shore a |
| Temperature: |
100ºC |
| Material: |
NBR |
| Usage: |
Engine |
| Standard: |
Standard |
Product Description

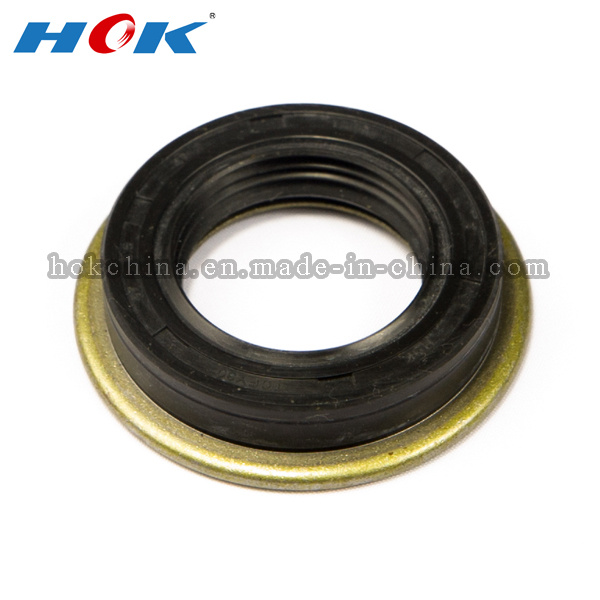

Rubber Oil Seal for Agricuture Machine
Product Specifaction:
| Item Name | Rubber Oil Seal For Agricuture Machine |
| Number | 5010415A0 |
| Size | 30*47*8.5 |
| Type | TCFY |
| Material | NBR |
| Hardness | 75 ± 5 |
| Color | Black |
| Metal Case Material | Carbon Steel |
| Spring Material | without |
| Application | Special Use |
| Packing | Plastic Bag-- Export Carton |
Oil Seal Size List:| 5010628A0 | 34*54*9/15 | TC9 |
| 5010657A0 | 80*135*12/26 | TC9 |
| 5010598A0 | 20*28*7 | TC |
| 5010304A0 | 20*30*6 | TC |
| 5010215A0 | 20*30*7 | TC |
| 5010505A0 | 20*32*7 | TC |
| 5010311A0 | 20*34*7 | TC |
| 5010235A0 | 20*35*5 | TC |
| 5010384A0 | 20*35*7 | TC |
| 5010433A0 | 20*35*10 | TC |
| 5010795A0 | 20*36*8 | TC |
| 5010466A0 | 20*40*8 | TC |
| 5010341A0 | 20*40*10 | TC |
| 5010879A0 | 20*42*7 | TC |
| 5010520A0 | 20*42*8 | TC |
| 5010989A0 | 20*45*8 | TC |
| 5010485A0 | 20*47*7 | TC |
| 5010679A0 | 20*47*8 | TC |
| 5010880A0 | 20*52*7 | TC |
| 5010579A0 | 21*32*5 | TC |
| 5010643A0 | 22*32*7 | TC |
| 5010380A0 | 22*35*6 | TC |
| 5010585A0 | 22*35*7 | TC |
| 5010405A0 | 22*40*11 | TC |
| 5010470A0 | 22*41.25*6 | TC |
| 5010381A0 | 22*41.3*6 | TC |
| 5010937A0 | 22*47*7 | TC |
| 5010784A0 | 24*47*7 | TC |
| 5010938A0 | 25*32*7 | TC |
| 5010236A0 | 25*35*7 | TC |
| 5010355A0 | 25*38*7 | TC |
| 5010268A0 | 25*40*5 | TC |
| 5010806A0 | 25*40*8 | TC |
| 5010214A0 | 25*40*10 | TC |
| 5010053A1 | 25*41.25*6 | TC |
| 5010994A0 | 25*42*7 | TC |
| 5010881A0 | 25*42*8 | TC |
| 5010274B0 | 25*47*7 | TC |
| 5010391A0 | 25*52*7 | TC |
| 5010680A0 | 25*52*8 | TC |
| 5010939A0 | 25*52*10 | TC |
| 5010882A0 | 25*52*10 | TC |
| 5010991A0 | 25*62*10 | TC |
| 5010988A0 | 25.4*41.25*6 | TC |
| 5010683A0 | 25.4*74*6 | TC |
| 5010539A0 | 26*34*4.5/7.3 | TC |
| 5010404A0 | 26*42*8 | TC |
| 5010940A0 | 26*42*10 | TC |
| 5010383A0 | 27*41.25*6 | TC |
| 5010546A0 | 28*40*8 | TC |
| 5010682A0 | 28*41.25*6 | TC |
| 5010803A0 | 28*42*7 | TC |
| 5010424A0 | 28*45*8 | TC |
| 5010883A0 | 28*47*7 | TC |
| 5010102A0 | 28*50*10 | TC |
| 5010677A0 | 30*40*7 | TC |
| 5010312A0 | 30*42*4.5 | TC |
| 5010327A0 | 30*42*6 | TC |
| 5010634A0 | 30*42*8 | TC |
| 5010492A0 | 30*45*7 | TC |
| 5010202A0 | 30*45*8 | TC |
| 5010408A0 | 30*50*7 | TC |
| 5010543A0 | 30*50*7 | TC |
| 5010342A0 | 30*50*10 | TC |
| 5010431A0 | 30*52*5 | TC |
| 5010217A0 | 30*52*8 | TC |
| 5010442A0 | 30*52*10 | TC |
| 5010362A0 | 30*55*12 | TC |
| 5010992A0 | 30*62*10 | TC |
| 5010440A0 | 30*72*10 | TC |
| 5010601A0 | 32*48*8 | TC |
| 5010447A0 | 32*52*7 | TC |
| 5010451A0 | 32*52*8 | TC |
| 5010941A0 | 32*52*10 | TC |
| 5010353A0 | 32*52*12 | TC |
| 5010942A0 | 33*50*10 | TC |
| 5010313A0 | 34*50*7 | TC |
| 5010728A0 | 34*50.8*8 | TC |
| 5010712A0 | 35*47*8 | TC |
| 5010104A0 | 35*48*10 | TC |
| 5010056A0 | 35*52*8 | TC |
| 5010216A0 | 35*52*8 | TC |
| 5010386A0 | 35*52*12 | TC |
| 5010294A0 | 35*55*12 | TC |
| 5010432A0 | 35*57*5 | TC |
| 5010438A0 | 35*60*5 | TC |
| 5010288A0 | 35*62*12 | TC |
| 5010578A0 | 35*65*10 | TC |
| 5010359A0 | 35*68*8 | TC |
| 5010599A0 | 35*72*7 | TC |
| 5010371A0 | 35*72*10 | TC |
| 5010811A0 | 35*75*10 | TC |
| 5010435A0 | 36*46*7 | TC |
| 5010827A0 | 37*52*7 | TC |
| 5010600A0 | 38*52*7 | TC |
| 5010724A0 | 38*53.97*8 | TC |
| 5010225A0 | 38*55*8 | TC |
| 5010452A0 | 38*55*8 | TC |
| 5010428A0 | 38*56*12 | TC |
| 5010802A0 | 39*55.5*9 | TC |
HOK has more than one thousand different sizes oil seals, details please contact me.

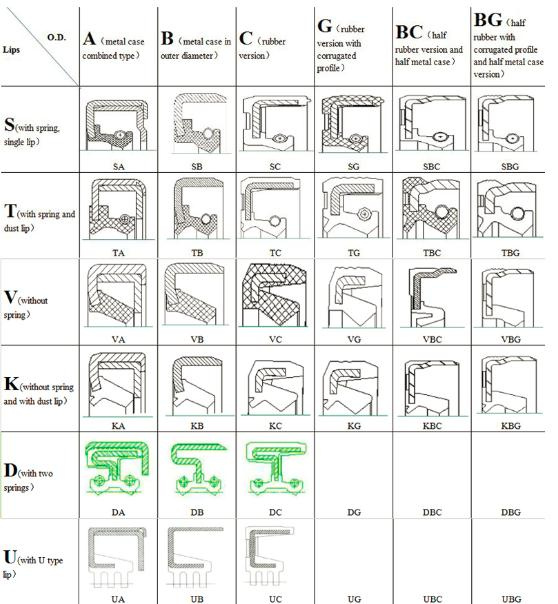

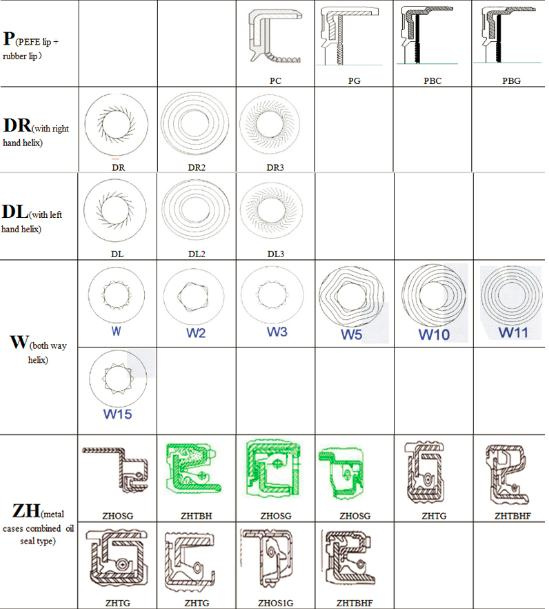

Oil Seal Main Types:Oil Seal Used In Engine: DR, DL, TG, TGW, TC etc.
Oil Seal Used In Wheel: TC, TB, SB, SC, TA, SA, TG, SG, TGW, combined type and so on.
Oil Seal Used In Electric tool: TC, TB, SB etc.
Oil Seal Used In Agricultural vehicle: Special type as customers' reuqirement
Oil Seal Used In Construction Machinery: SIBC, TZDL, TA, TC etc.
Oil Seal Main Applications:Diesel and Gasoline Engine Like Crankshaft and Camshaft
Rotational System of Vehicle Like Gear Box,Wheel Hub, Axle, Pumps, Gas Sring, Shock Absorber
Rotational system of Farm and Construction Machinery like Forklift, Excavator
Industrial Gear Box
Daily Washing Machine
Mechanical Engineering and Equipment Processing Industry

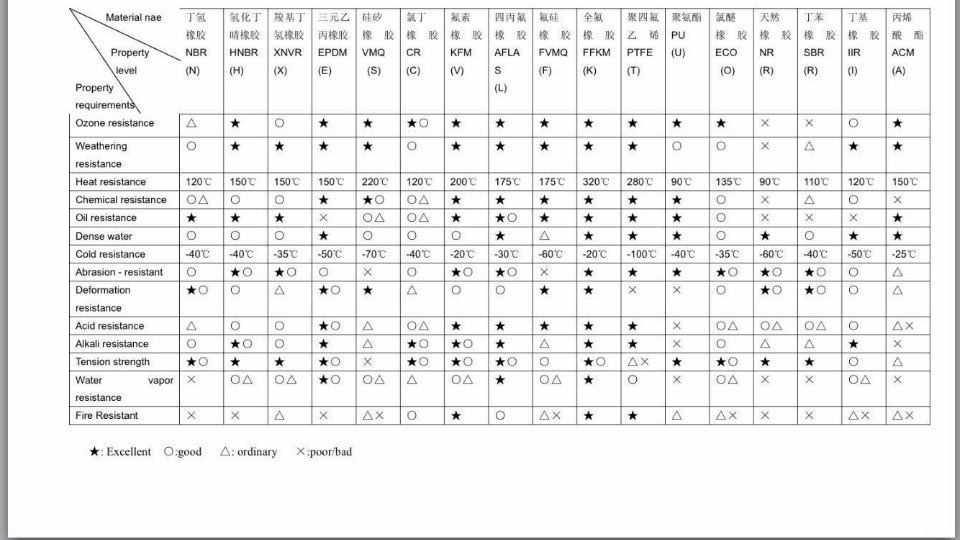

Oil Seal Main Materials and Features:
HOK Oil Seal Advantages:Professinal Oil Seal Manufacturer since 2009, Hundreds of Different Structures

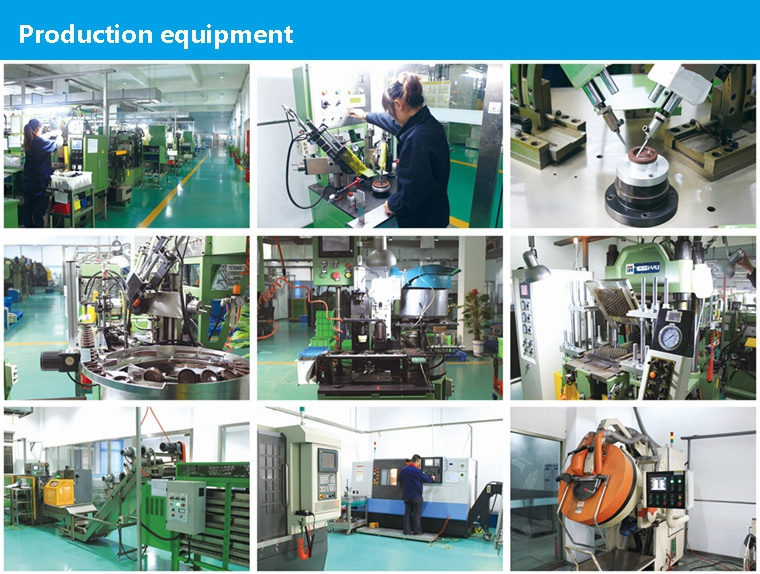

Lots of Advanced Automatic Machines, More Effiencicy

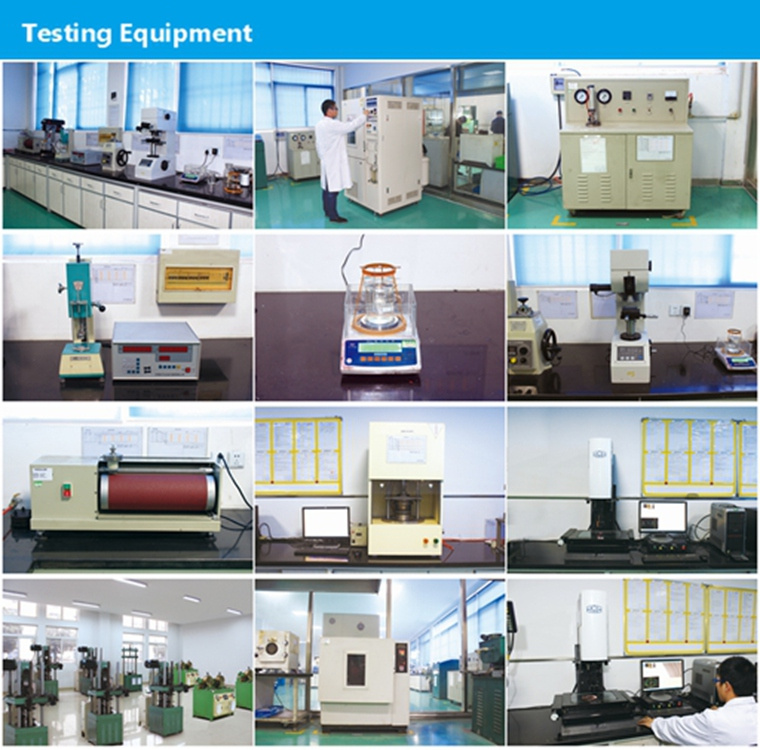

More Than 20 Test Equipments In Our Own Lab, Keep Quality Good and Stable
Professinal Engineering Team Comes from NOK, Design According to Customer Demands
Different Rubber Material Used for Different Requirement
Hundreds of Different Oil Seal Sizes In Stock
Main Products Oil Seal, Valve Stem Seal, O Ring, Rubber Molded Parts, Rubber Shock Absorder, Dust Cover
FAQAbout Company
1. Are you a factory or trading company?
We are a factory.
2. Where is your factory located?
Our factory is located in Changzhou City, Jiangsu, China. It's about 180km away from Shanghai.
3. Can I visit you?
Yes, Welcome to visit us. It is very convenient to come our factory,
You can fly to Shanghai Hongqiao directly, and then take high-speed rail from Hongqiao to Changzhou North, about one hour. We'll pick you up in Changzhou North Train Station, and it's about 20 minutes to our company. All our clients, from China or abroad, are warmly welcome to visit us!
4. What are your main markets?
Our main markets are Middle East and Europe, but actually we export to more than 30 countries around the world.
5. What are your main products?
. Our main products are rotary shaft seals, reciprocating seals, valve stem seals, bearing seals, modified PTFE seals, shock absorption products, o rings, and bonded seals, hydraulic &pneumatic seals, dust covers, and other molded rubber parts.
About Product and Services
1. How is the quality of your products?
Our products are designed and produced completely according to industry standard.
ISO9001, ISO/TS 16949 are approved, actually our product meet Taiwan's product quality.
Inspected 100% at all of production process to ensure that we deliver our customers with only the highest quality products
Our company inspection report could be sent together with goods, if customers want.
2. Can I check quality of the products before leaving the factory?
Yes, you can check quality of the products by your QC group or yourself or third part such as SGS or INTERTEK at our factory.
3. What's your after-service?
If you find defects after you received the goods, please send us defects photos with quantity so we can check the reason, if it is quality problems or our faults, we would cover your loss, send replacements or grant special discount for your coming orders.
4. Can I get free samples?
Free sample but delivery fee charged.
These charges will be refunded to you when your mass production order is confirmed.
5. What's the kind of your goods packing?
Inner by pp bag, box or anti-tarnish paper etc
Outer by carton and film
Or as per customer's requirements
6. Can you make the products as our requirement?
We have more than 10years' OEM experience and we have professional technique team. No matter you have samples, drawings or only some ideas or designs, we can help you.
About Order
1. Can I negotiate the prices?
Yes, we may grant discount for FCL (Full Container Load) of mixed products or bulk orders of individual products. Sometimes, we may launch some promotion, more discounts would be granted.
2. What is the MOQ?
The MOQ has been indicated on the product page, we can accept small orders, and prices will be higher, though, normally 100pcs
3. How long do you need for production and delivery?
Normally, for ready goods and stock, we will ship within 24 hours after receive your payment.
In case out of stock and products are regular designs and models, we need about 30 working days to produce after receive your payment and all order details are confirmed.
If new types, another 30 days model time need.
Different order quantity, different delivery time, please confirm with us when you are ready to place an order.
About Payment and Shipment
1. Payment terms:
30% T/T as deposit and 70% T/T before the shipment
LC only for contain orders
2. Shipping term:
Small order, below 500kgs by express such as DHL, UPS, FEDEX, EMS etc
Big order, above 500kgs by air or sea
3. Which port will you deliver the goods?
As your requirement, any port is OK. Shanghai port is first choice.
Please note that if you want a port far way from us, the transportation expense will increase.

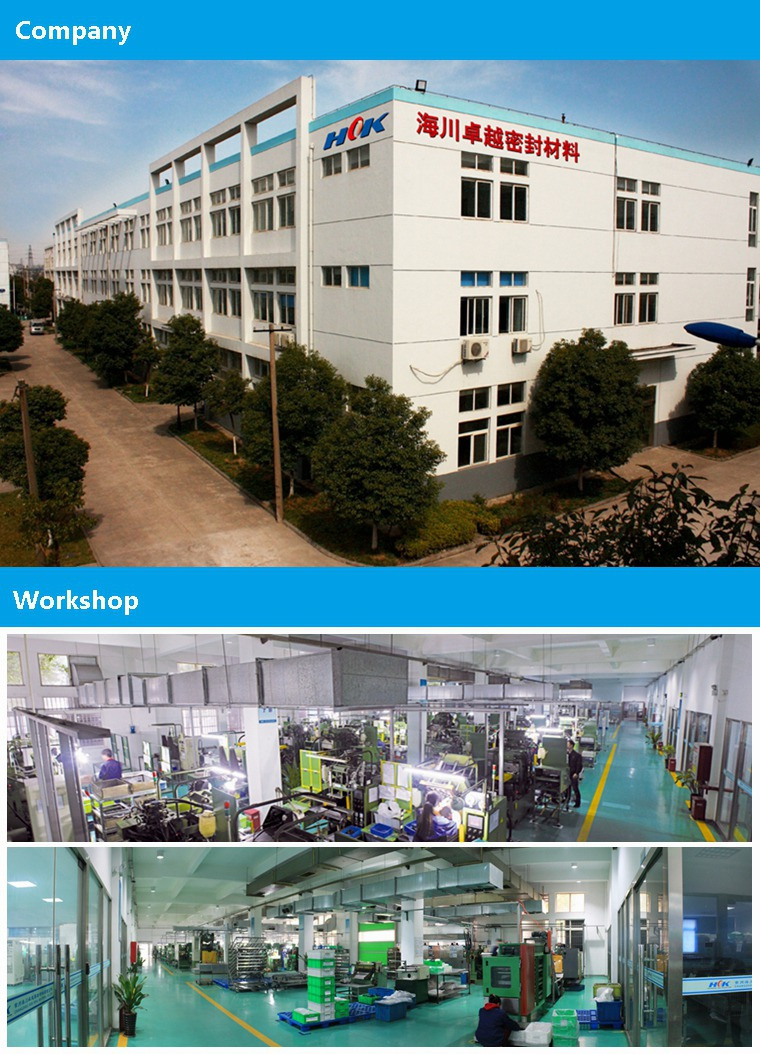

Located in the beautiful scenery of Water Town of the South Yangtze River, Changzhou HOK Seal Material Co., Ltd. is a professional high-tech enterprise specialized in the R&D, production and marketing of engine crankshaft oil seals, valve stem seals, water-proof rings, gear-box oil seals, shock-absorbing and automobile rubber damping products, rubber molded parts and so on.
By combining many years of experience of manufacturing, we have been committed to R&D of rubber sealing products, and continuously focused on the innovation of raw materials, formula, production technique, testing methods etc. At the same time, we're equipped with worldwide advanced manufacturing facilities, qualified R&D capabilities and testing device, adopting the advanced raw materials and formulas, to ensure consistency, ratability and stability of products.
We've already passed ISO 9001: 2000 quality management systems. Currently we have been fully implementing the ISO/TS 16949: 2002 to build standardized system. In addition, we have also had the enterprise information and supply chain management integrated from quality, management, human resource, raw materials, R&D, production, sales to finance.
We're always adhering to the principle of honest, quality and innovation, introducing advanced management theory and administrative system, assuring every customer of our professional knowledge, satisfying every customer with our solid attitude, to create customer value, customer satisfaction, and customer retention for all the customers home and abroad.
