| Prod Model: |
TD-84 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
Floor Hinge |
| Brand: |
Oding,Anzhili,Tgtg |
| Material: |
Ss202,Ss304 |
| Finish: |
Matt,Mirror,Gold |
| Type: |
Hardware |
Product Description
Product Description

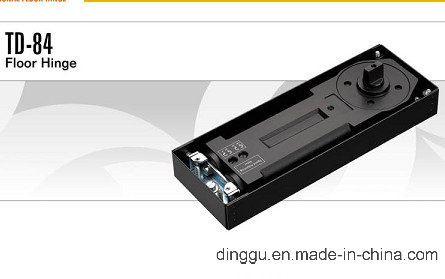

Floor spring (TD-84)
1, Maximum Door size(mm): 1200*2400
2, Maximum Door Weight(kg): 105-160
3, Maximum Open Angle: 135°
4, Hold-Open Angle: 90°
5, Closing Speed Adjustment: Speed 1: 0° -20° , Speed 2: 20° -90°
6, Application Temperature: -30° C-55° C
7, Double ways opening
8, Can run 50 thousand times
9, Competitive price with our best service
10, OEM is acceptable
11.Spindle can be change
Specifications
1. Floor spring.
2. Style: Suitable for all kinds of glass door and wooden door
3. Cover finish: Satin, mirror,gold
4. Use with patch fitting and accessories.
5. Carrying weight: 105-160KG
6. Many kinds of style can be chosen
7. High quality casting iron floor spring body.
8. High quality coating for the body, stainless steel cover.
9. Double action opening. Hold open at 90° .,max. 180°
10. Applicable for glass door 8-12mm, wooden door, iron door, aluminum door.
11.2 closing speed adjustable.
12.500000 times tested without damage.
13. Germany machine oil and sealed rings, keep perfect working in cold temperature.
14. Remark: Provide with high quality & reasonable price
Quick Details
1. Brand name: ODING
2. Type: For all kinds of glass door and wooden door
3. Model Number: Floor spring TD-84
4. Place of origin: Guangdong Province China (Mainland )
5. Payment term: 30% deposit by T/T before production, 70% balance payment before delivery.
6. Port: Huangpu Guangzhou
Description:
1. Maximum door opening angle is 135 degree, and the door closing is effective from 90 degree.
2. Suitable for the left, right door open and single, double action.
3. The body finish is beautiful, use import spring, can run 50 thousand times.
4. Used low temperature&resist freeze hydraulic pressure oil, keep the door smooth when it is -40 degree.
5. After special design, control the bearing of the spring hinge, lighten the strength when open and closer the door.
6. High strength and leak prevent configuration were used for extend the life of it.
7. Floor Hinge can be adjust ,up and down.
Packaging & Delivery
1. Packing: Standard export package
2. Delivery Detail: base on the quantity
