| Prod Model: |
TD-830 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Oding, Tgtg, Anzhili |
| Item No: |
Td-830 |
| Cover Plate Material: |
SUS304,SUS 201 |
| Finish: |
Mirror,Gold , Stain |
| Maximum Bearing Weight: |
105-165kg |
| Maximum Opening Angle: |
90-105degree |
| Maximum Door Size: |
1050*2300mm |
| Type: |
Floor Hige |
Product Description
Item number | TD-830 |
| door weight | 105-165kgs |
| door size | 1050*2300mm |
| hold open angle | 90 degress |
| warranty | 500,000 times |
Product Description

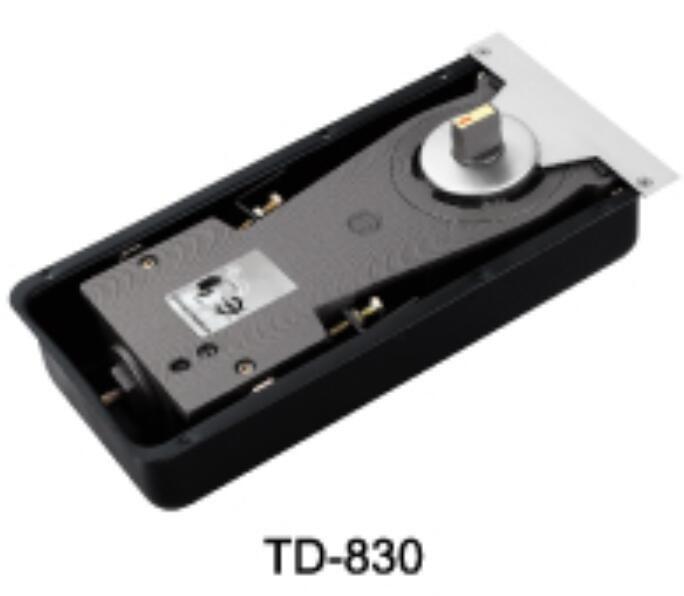

Floor spring (TD-830)
1, Maximum Door size(mm): 1050*2300
2, Maximum Door Weight(kg): 105-165kg
3, Maximum Open Angle: 105°
4, Hold-Open Angle: 90°
5, Closing Speed Adjustment: Speed 1: 0° -20° , Speed 2: 20° -90°
6, Application Temperature: -30° C-55° C
7, WARRANTY : run 50 thousand times
8, Double ways opening
9, Can run 50 thousand times
10.Fixed spindle and can be change spindle
11, Competitive price with our best service
12, OEM is acceptable
Specifications
1. Floor spring.
2. Style: Suitable for all kinds of glass door and wooden door
3. Cover finish: Satin, mirror,gold
4. Use with patch fitting
5. Carrying weight: 120-180kg
6. Many kinds of style can be chosen
7. High quality casting iron floor spring body.
8. High quality coating for the body, stainless steel cover.
10. Double action opening. Hold open at 90° .
11. Applicable for glass door 8-12mm, wooden door, iron door, aluminum door.
12.2 closing speed adjustable.
13.500000 times tested without damage.
14. Germany machine oil and sealed rings, keep perfect working in cold temperature.
15. Remark: Provide with high quality & reasonable price
Quick Details
1. Brand name:ODING
2. Type: For all kinds of glass door and wooden door
3. Model Number: Floor spring TD-830
4. Place of origin: Guangdong Province China (Mainland )
5. Payment term: 30% deposit by T/T before production, 70% balance payment before delivery.
6. Port: Huangpu Guangzhou
Description:
1. Maximum door opening angle is 180 degree, and the door closing is effective from 90 degree.
2. Suitable for the left, right door open and single, double action.
3. The body is thin and beautiful, use import spring, can run 50 thousand times.
4. Used low temperature&resist freeze hydraulic pressure oil, keep the door smooth when it is -40 degree.
5. After special design, control the bearing of the spring hinge, lighten the strength when open and closer the door.
6. High strength and leak prevent configuration were used for extend the life of it.
7.Floor hinge can be adjust up and down.
Packaging & Delivery
1. Packing: Standard export package
2. Delivery Detail: base on quantity
