| Prod Model: |
CA2212 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Dual 12" Line Array |
| Woofer: |
2PCS 12" High Power Woofers |
| Hf: |
1PC 3 High Quality Compression Driver Unit |
| Components: |
12"X2+3" |
| Material: |
Plywood Cabinet |
| RMS Power: |
800W |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
CE |
| THD: |
<0.005% |
| Operation Mode: |
Professional Operation |
| Speaker System: |
Professional Audio |
Product Description
NOVA professional line array, pro audio, professional loudspeaker, amplifier, mixers, flightcase and dri ver units. For market.
PASSIVE AND ACTIVE AVAILABLE.
No built-in amplfiier and built-in amplifier.

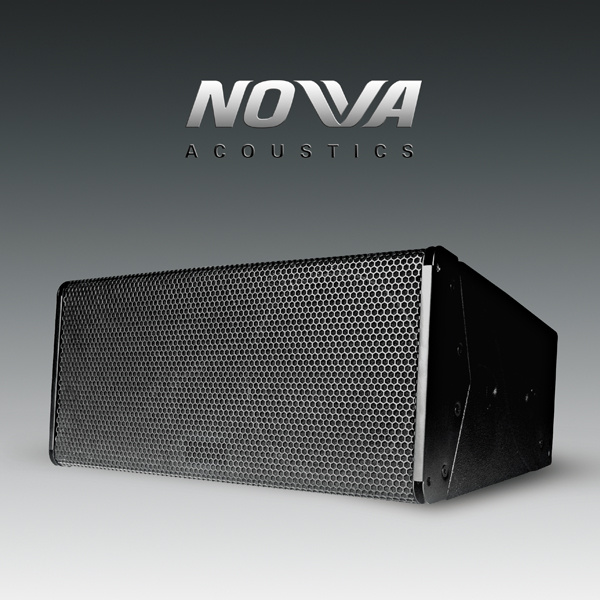

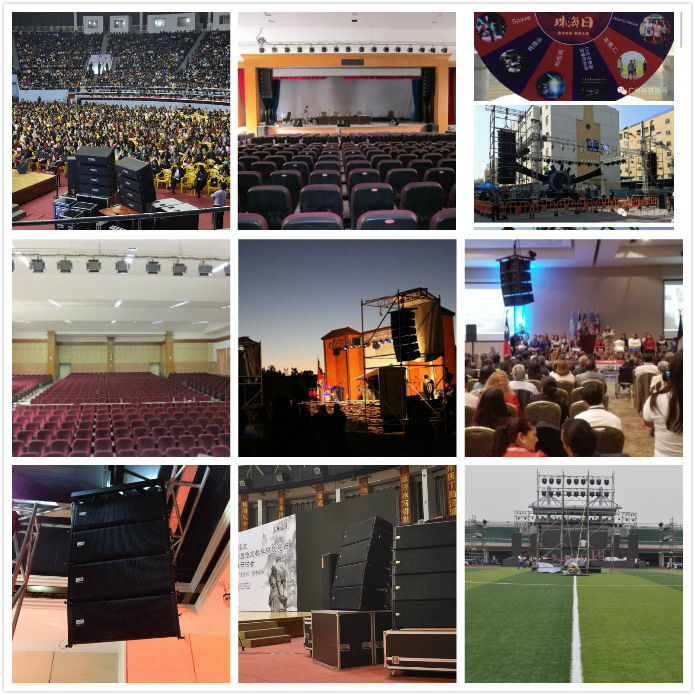

Our CA2212 line array are high power loudspeaker. With high performance, wide bandwith specification, they are suit in highest level of connect touring, stadium, large club, stage, theater and auditorium etc.
Specifications of CA2212 line array:
Frequency response: 55Hz-19kHz (+/- 10dB)
50Hz-18kHz (+/- 3.5dB)
RMS power: HF is 150W, LF is 800W
Program Power: HF is 300W, LF is 1600W
Norminal Impedance: HF is 8Ohm, MF/ LF is 4Ohm
Sensitivity: 105dB/W/M
Component: 12"X2 +3" horn
Dispersion angle: 90 degree X 10 degree (H X V)
Dimension: (370x270) X920 X570mm
Line array speaker system, professional audio sound equipment, PRO audio sound, PA loudspeaker system, professional speaker equipment,
Line array, line array system, line array China, audio, speaker, acoustics, audio equipment, sound equipment, speakers, loudspeaker, professional speaker, professional loudspeaker, PA audio, professional audio, speaker manufacturer, loudspeaker manufactory, audio speakers, sound speakers, stereo speaker, PRO audio speaker, audio loudspeaker.
Our CA2812 line array are high power loudspeaker. With high performance, wide bandwith specification, they are suit in highest level of connect touring, stadium, large club, stage, theater and auditorium etc.
| Specication of CA2212 | |
| Frequency Response | 55HZ-19KHz (-10dB) |
| | 50Hz-18KHz ( ±3.5dB) |
| RMS power | HF: 150W, LF:800W |
| Program power | HF:300W, LF:1600W |
| Peak power | HF:450W, LF2400W |
| Norminal Impedance | HF:8Ohm, LF:4Ohm |
| Sensitivity | 105dB/w/m |
| Max SPL | 134Db |
| Component | 2x12"+3" |
| Coverage Angle | 90° H X10°V |
| Dimension | (370x270) x 920 x 570mm |
| | |
| | |

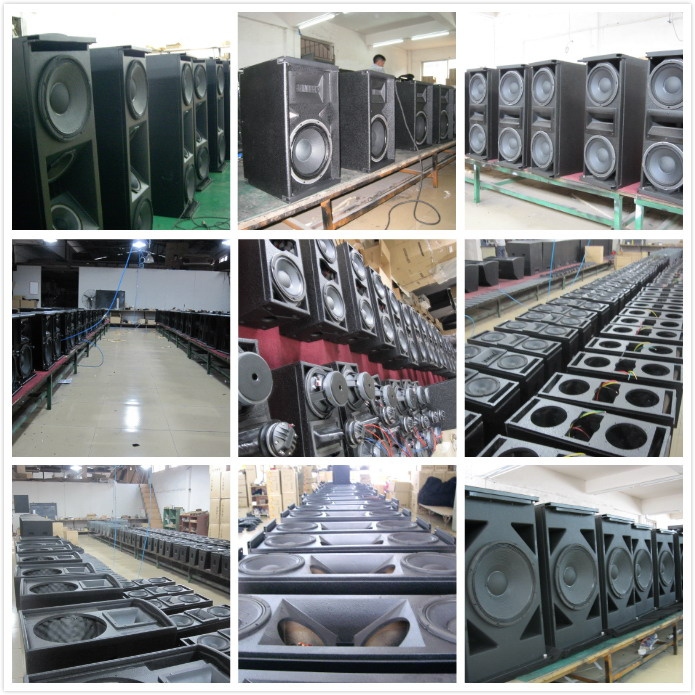

Nova specializes in manufacturing PRO audio which including line array, professional loudspeakers & KTV, power amplifiers, mixers consoles, signal processors including equalizers, limiters/compressors, exciters, crossovers, power sequence controllers etc. To meet different customer's market, we also add producion line for woofer speakers, subwoofer speakers and flightcase for sound equipmentand professional lights and LED monitor ect.
With experienced & strong R&D department and strictly quality control managment and Satisfactory market service system and reasonable price and good quality, Our price had got high reputation in many ares.
OEM/ODM also available.
Nova will offer what you want.
Please join in NOVA family!
