| Price: | US $ 780-1200/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T |
| Prod Model: | CLRG |
|---|---|
| Color: | Follow Customer(Yellow, Green,Red) |
| Application: | Lifting, Pushing, Pulling |
| Working Pressure: | 700 Bar |
| Ship: | International |
| Coll Height: | 216-466mm |
| Stoke: | 50-300mm |
| Characterstic: | Double Acting ,High Tonnage |
| OEM Service: | Can Put Customers' Brand |
| Body Material: | Steel |
| Operate: | with Manual or Electric Pump |
| Type: | Hydraulic Jack |
| Power Source: | Hydraulic |
| Structure: | Hydraulic RAM |
| Capacity (',Load): | 200 Ton |

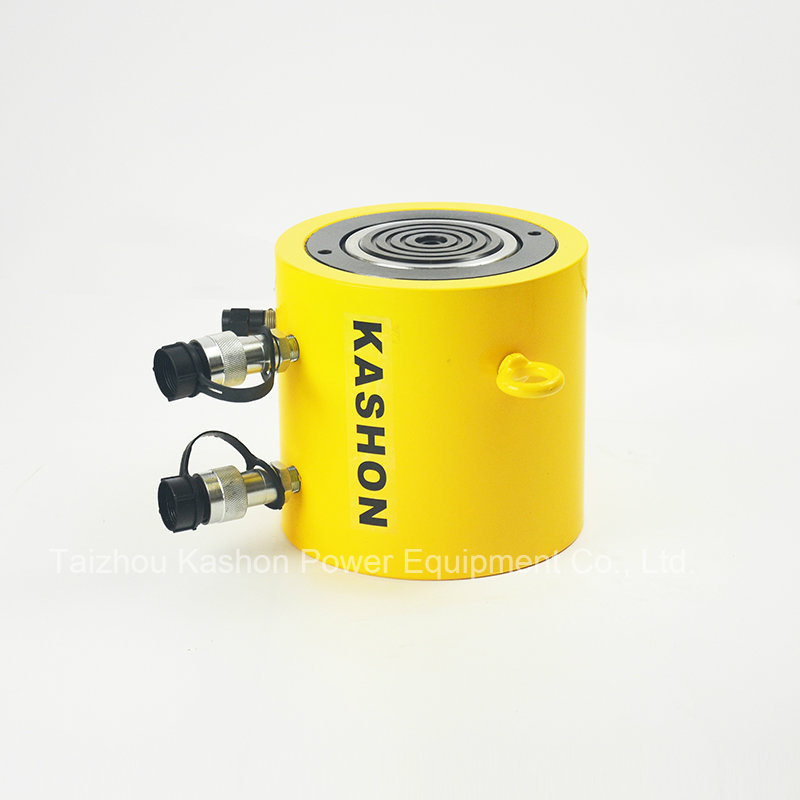

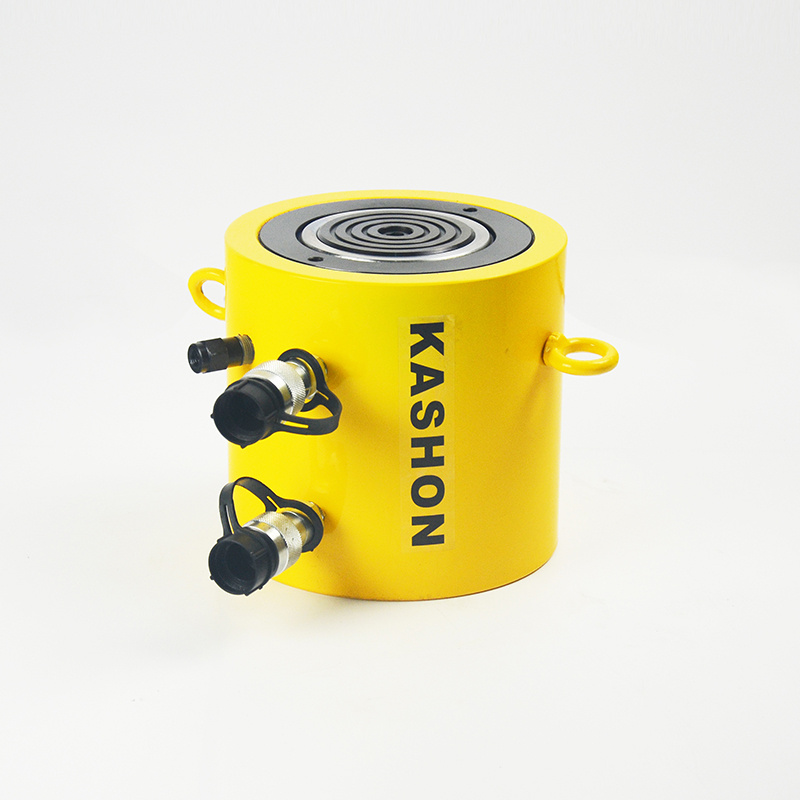

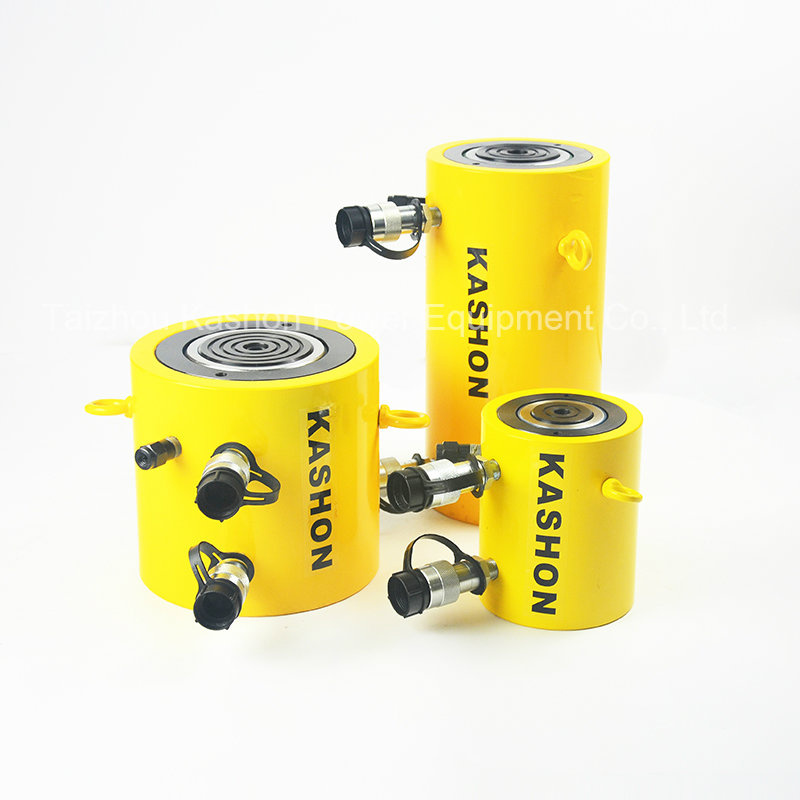

KASHON hydraulic cylinders are available in hundreds of different mechanical or hydraulic cylinders configurations. Whatever the industrial application; lifting, pushing, pulling and available in range of force capacities, stroke lengths or size restrictions. Single or double acting, hollow plunger, or low height, you can be sure that KASHON has the hydraulic cylinder to suit your high force application.
Features:
High tonnage double acting hydraulic cylinders are designed specifically for heavy lifting up to 1,000 tons
Double-acting, for positive retraction
Integral stop ring provides piston blow-out protection
Safety valve in retract side of cylinder helps to prevent damage in case of accidental over-pressurization
Plunger wiper reduces contamination, extending cylinder life
CR-400 coupler and dust cap included on all models
Baked enamel finish and plated pistons provide superior corrosion resistance.
Specifications:
| Ram Capacity | Stroke | Model Number | Maximum Cylinder Capacity (kN) | Ram Effective Area (cm2) | Oil Capacity (cm3) | Coll. Height | Ext. Height | Outside Dia. | Weight | |||
| ton | mm | Push | Pull | Push | Pull | Push | Pull | mm | mm | mm | kg | |
| 200 | 50 | CLRG-2002 | 1861 | 889 | 265,9 | 127,0 | 1330 | 635 | 212 | 262 | 235 | 55 |
| 150 | CLRG-2006 | 1861 | 889 | 265,9 | 127,0 | 3989 | 1905 | 312 | 462 | 235 | 91 | |
| 300 | CLRG-20012 | 1861 | 889 | 265,9 | 127,0 | 7977 | 3809 | 462 | 762 | 235 | 146 | |
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
FAQ
Q1: How can contact sales?
A1: Please via email or call: +86-158-5086-4100 for pre-sales
Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.
Q3: How long does it take to process orders?
A3:It usually takes 10-14 business days to process most orders for no stock, if stock available, only take 2- 3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty
A6: 12 months against B/L dat
