Double Acting Hydraulic Cylinder Used for Heavy Machine Lift with Reasonable Price (Fy-Rr)

Name: Double Acting Hydraulic Cylinder Used for Heavy Machine Lift with Reasonable Price (Fy-Rr)
Brand: tool-buy.com
SKU: 817607885
Availability: InStock
Rating: 4.4 (74 reviews)

Price:	US $ 150-5000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Jiangsu Feiyao Machinery Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	FY-RR
Body Material:	Steel
Product Name:	Double Acting Hydraulic Cylinder Used for Car Lift
Capacity:	10-300ton
Stroke:	57-816mm
Weight:	13-200kg
Certificate:	Ce, ISO9001:2008
Closed Height:	196-1116mm
Out Diameter:	73-311mm
Shipping:	by Sea, Air, Express
Payment:	T/T

Product Description

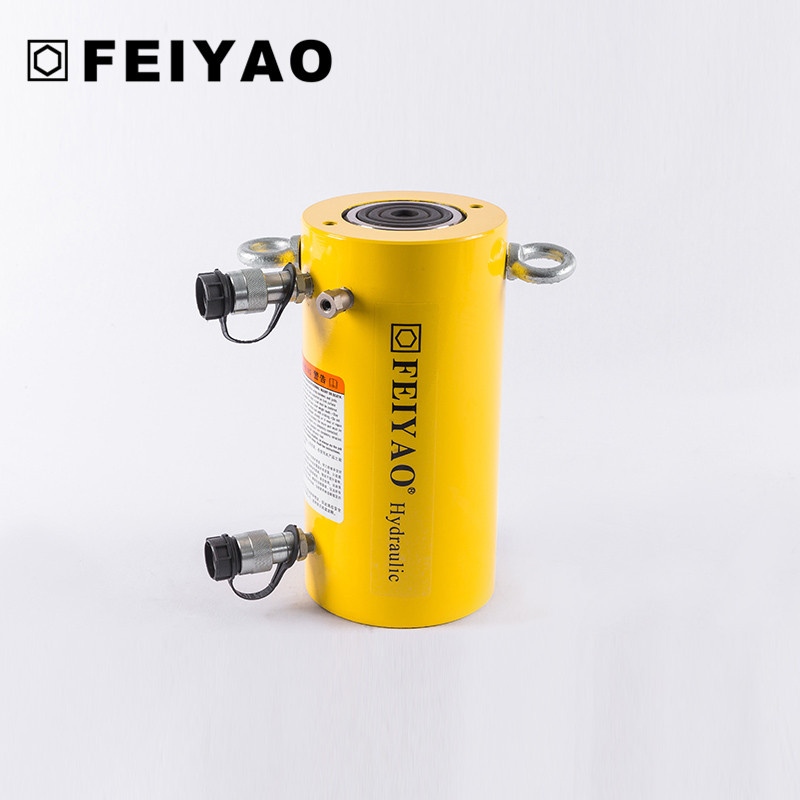

Double acting hydraulic cylinder used for car lift with reasonable price

Features:

1.Collar threads, plunger threads and base mounting holes for easy fixturing on most models

2.Removable hardened saddles project plunger during lifting and pressing

3.Built-in safety valve prevents accidental over-pressurization

4.Baked enamel finish for increased corrosion resistance

5.Plunger wiper reduces contamination, extending cylinder life

6.CR-400 couplers included on all models

Product Parameter

Model	Pressure@700bar ton (KN)	Stroke (mm)	Capacity(ton)		Effective area (cm2)		Oil capacity (cm3)		Closed Height (mm)	Extending Height(mm)	Out Diameter(mm)	Weight (kg)
Model	Pressure@700bar ton (KN)	Stroke (mm)	push	pull	push	pull	push	pull	Closed Height (mm)	Extending Height(mm)	Out Diameter(mm)	Weight (kg)
FY-RR-1010	10(89)	254	10	4	14.4	5.2	366	132	409	663	73	13
FY-RR-1012	10(89)	305	10	4	14.4	5.2	439	159	457	762	73	14
FY-RR-308	30(267)	210	30	5	42	19.4	882	407	387	596	102	18
FY-RR-3014	30(267)	368	30	5	42	19.4	1546	714	549	917	102	29
FY-RR-506	50(444)	156	50	10	71.4	21.9	1114	342	331	487	127	30
FY-RR-5013		334	50	10	71.4	21.9	2385	731	509	843	127	52
FY-RR-5020		511	50	10	71.4	21.9	3649	1119	733	1244	127	68
FY-RR-756	75(667)	156	75	17	102.7	31.6	1602	493	347	503	146	42
FY-RR-7513	75(667)	334	75	17	102.7	31.6	3430	1055	525	858	146	68
FY-RR-1006	100(889)	168	100	48	133.2	61.9	2238	1040	357	525	178	61
FY-RR-10013		334	100	48	133.2	61.9	4449	2057	524	867	178	93
FY-RR-10018		461	100	48	133.2	61.9	6141	2854	687	1147	178	118
FY-RR-1502	150(1333)	57	150	74	198.1	95.5	1129	544	196	253	203	50
FY-RR-1506		156	150	74	198.1	95.5	3090	1490	385	541	203	93
FY-RR-15013		334	150	74	198.1	95.5	6617	3190	582	915	203	125
FY-RR-15032		816	150	74	198.1	95.5	16165	7793	1116	1931	203	238
FY-RR-2006	200(1778)	152	200	112	285.2	145.2	4335	2207	430	582	248	148
FY-RR-20013	200(1778)	330	200	112	285.2	145.2	9412	4792	608	938	248	200
FY-RR-3006	300(2667)	152	300	188	457.6	245.2	6956	3727	485	638	311	200

Company Introduction

Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.

Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:

Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;

Hydraulic torque wrenches(100-72000Nm);

PLC synchronous lifting system;

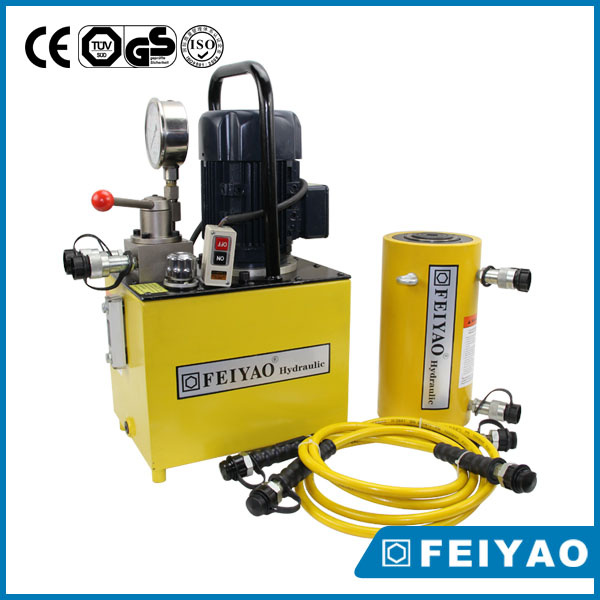

Hydraulic lifting pumps, manual and electric type;

Hydraulic pullers, manual and hydraulic type;

Hydraulic bolt tensioners;

Hydraulic flange spreader, manual and hydraulic type;

Hydraulic steel wire rope press machine

Hydraulic accessories(hoses, couplers, oil distributors, etc.)

Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.

We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.

IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE; 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.

Factory Show

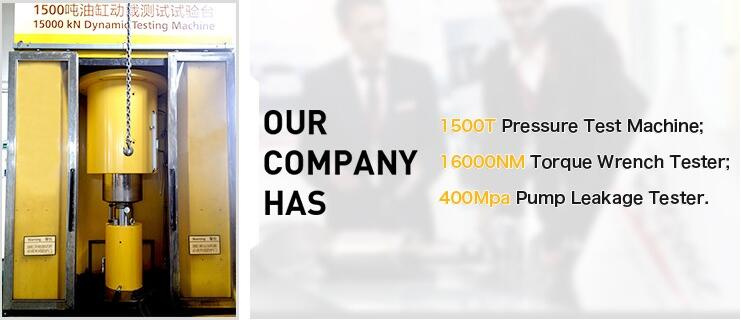

Quality Control

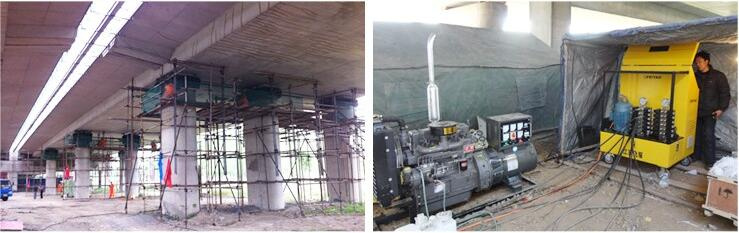

Successful Project

FAQ
Q1: How to contact sales?

A1: Please call: +86-180-3679-7771 for pre-sales.

Q2: How to make payment?

A2: Once order confirmed, we will prepare proforma invoice with our banking details.

Q3: How long does it take to process orders?

A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it only takes 2-3 business days.

Q4: What is the packing method?

A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.

Q5: How to ship?

A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.

Q6: What is the warranty?

A6: 12 months against B/L date.

Contact Us
Jiangsu Feiyao Machinery Manufacturing Co., Ltd
Contact Person: Miss. Bella
Tel: +86-180-3679-7771
Web: www.fyhydraulic.com

Concentrate on the design and manufacture of hydraulic products, Jiangsu Feiyao Machinery Manufacturing Co., Ltd is a professional hydraulic manufacturer who integratesR&D, marketing, customer service and import & export. With strict and efficient manufacturing&operation system and perfect quality control and guarantee system, FEIYAO provides a full range of engineering solutions for customers.

Relies on advanced research and application technology and with joint effort of domestic professionals, FEIYAO has developed high-end hydraulic products (already has a number of invention patents) and capacity of customizing a variety of scientific and reasonable solutions in rich product lines. Through continual innovations in designs and applications, FEIYAO provides high-quality hydraulicproducts for customers.

Based on the advanced computer control technology, in the past decades, FEIYAO has been devoted itself to providing customers with engineering solutions in the heavy load, high precision control, multi logical action and multi-point control fields, etc., and offering safe&efficient equipment and services in all kinds of applications like multi-point synchronous push, translation, lifting, stretching, walking, asymmetric component weighing, tension, space adjustment, intelligent walking, handling large equipment.

At present, the company's products have been widely used in many industries at home and abroad, such as the construction and maintenance of roads and bridges, installation and moving of offshore oil platform, historic buildings, sports gymnasiums, blast furnaces, power equipment and ocean shipping manufacturing.

The synchronous hydraulic lifting systems have made a great contribution to the bridgelifting and maintenance in China, which has won praise from numerous bridge construction enterprises!
