Double Column Hydraulic Horizontal Metal Saw with Swivel Head (GR-500)

Double Column Hydraulic Horizontal Metal Saw with Swivel Head (GR-500)
Price: US $ 1/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: GR-500
Gr-330/400/500/600: Double-Column Rotary Horzontal Band Saw
Cutting Capacity At 0 Degree: 320/40/500/600mm
Cutting Capacity At 45 Degree: 250/400/500/600mm
Cutting Capacity At 60 Degree: 180mm for Gr-330
Blade Size: 4115X27X0.9, 4800X34X1.1, 5800X41X1.3, 6800X41X1.3
Main Motor Power: 2.2/4.0/5.5/7.5kw
Clamping Force: Hydraulic
Type: Band Sawing Machine
Controlling Mode: Hydraulic Semi-automatic
Automatic Grade: Semiautomatic
Precision: High Precision

Product Description

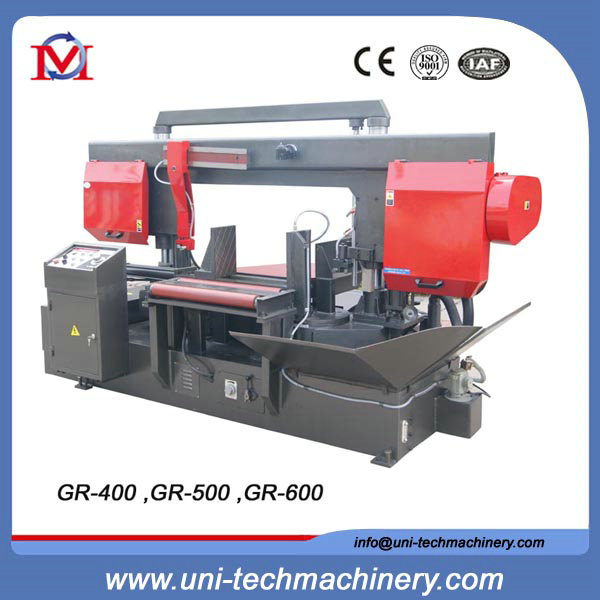

Double Column Hydraulic horizontal metal saw with swivel head (GR-500)

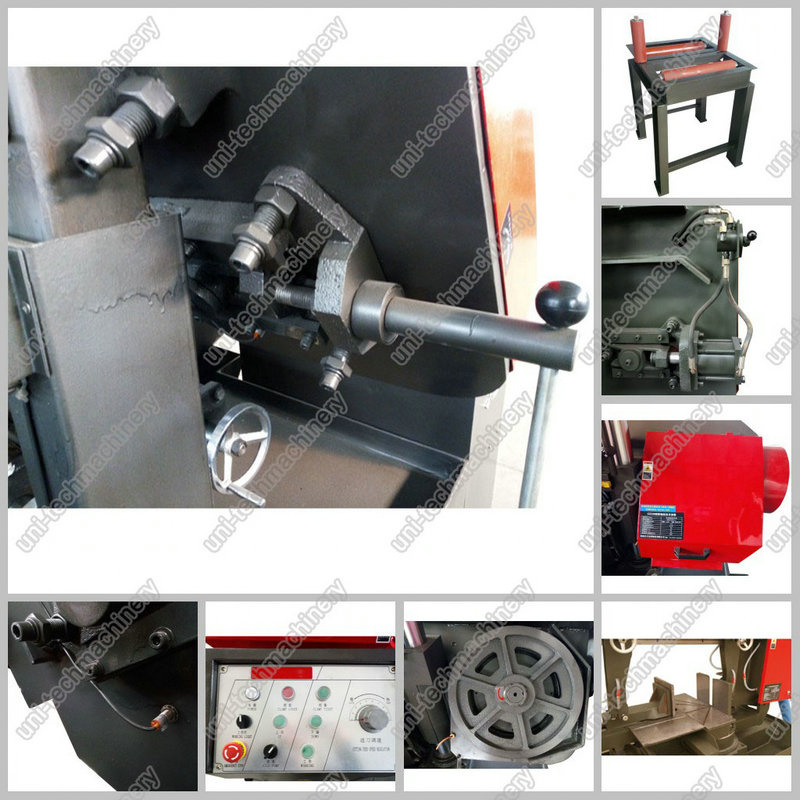

Main features:
  1. Unique sealing Maintenance reduction system with worm gear, insurance forever-lubrication, enlarge the use life of saw blade
  2. Hydraulic lifting oil and high stable spring, variable, work smoothy
  3. Blade cover protection, ignore the breakage of saw blade
  4. Adjustable blade guide system
  5. Many kinds of electric protection function and with open sotp
  6. Different swivel cutting, for section steel, round steel pipe, square steel pipe
  7. Vice can be movable, benefit for clamping workpiece


 Main specifications:
ModelGR-330GR-400GR-500GR-600
Cutting capacity at 0°320/250×400400/500×400500/700×500600/750×600
Cutting capacity at ±45°250/250×300400/400×400500/500×500600/600×600
Cutting capacity at-60°180/250×180---
Cutting degree (°)+45~-600~-450~-450~-45
Blade size (mm)4115×27×0.94800×34×1.15800×41×1.36800×41×1.3
Blade cutting speed (m/min)40/60/8040/60/8040/60/8040/60/80
Main motor power (KW)2.245.57.5
Oil pump motor power (KW)0.750.7 51.52.2
Coolant pump motor power (KW)0.010.090.120.12
Clamping typeHydraulicHydraulicHydraulicHydraulic
Main drive structureWorm gearWorm gearWorm gearWorm gear
Worktable height (mm)750650650650
Net weight (KG)950150022003000
Overall dimension (mm)1800×900×14502000×1200×15002600×1600×16503000×1600×1750

Standard equipments:
  1. Cutting blade
Optional equipments:
  1. CNC swivel
  2. Auto-feeding workpiece
  3. Roller stand
  4. Frequency system
  5. Auto chip tray
