| Prod Model: |
BS-912GDR |
| BS-912n/912r/912g/712gr/912gdr: |
Variable Speed Metal Band Sawing Machine |
| Type: |
Band Sawing Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
Product Description

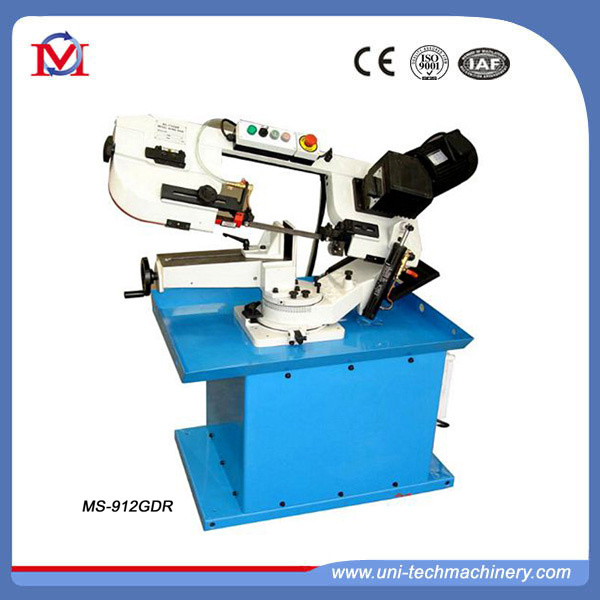

portable saw machine with stable performance(BS-912GDR)
Main features:
Adjustable hydraulic feed cutting rate for multiple applications
Mitre cuts to 45º using calibrated vice
Built-in coolant system to both blade guides for maximum cutting efficiency
Limit switch stops machine when cut is complete
Quick action material clamping lever
Adjustable blade roller guides provides accurate cutting
Adjustable 4-speed pulley drive system enabling 26-50-73-95mpm cutting speeds
Adjustable length stop for repetition cutting
Wire wheel brush to clean swarf from blade
Portable - on wheels for ease of use
Automatic electric cut-out switch
BS-912B
Traditional and most universal model
V-belt driven
BS-912G
Gear driven
BS-912GR
The bow can be swiveled between 45° and 90°
Gear driven
BS-912GDR
The bow can be swiveled between 45° and 90°
Both sides swiveled exclusively design±45°
Gear driven
| Model | | Unit | BS-912B | BS-912G | BS-912GR | BS-912GDR |
| Capacity | Circular @90° | mm/'' | 229(9) | 229(9) | 229(9) | 229(9) |
| Rectangular @90° | mm/'' | 178×305(7×12) | 178×305(7×12) | 178×305(7×12) | 178×305(7×12) |
| Circular @45° | mm/'' | 150(6) | 150(6) | 150(6) | 150(6) |
| Rectangular @45° | mm/'' | 127×150(5×6) | 127×150(5×6) | 127×150(5×6) | 127×150(5×6) |
| Blade speed | @50HZ | MPM | 32,60,88,115 | 38,78,115 | 38,78,115 | 38,78,115 |
| @60HZ | MPM | 26,50,73,95 | 31,65,95 | 31,65,95 | 31,65,95 |
| Blade size | / | mm | 27×0.9×2655 | 27×0.9×2655 | 27×0.9×2655 | 27×0.9×2655 |
| Motor power | / | W/HP | 1100/1500 3.0/2.0/1.0 |
| Drive | / | / | V-belt | Gear | Gear | Gear |
| Packing size | / | cm | 154×59×115 | 158×62×115 | 160×60×115 | 147×74×132 |
| N.W./G.W. | | kg | 230/260 | 220/250 | 220/260 | 230/280 |
